Hersteller: Raytac
Description: NORDIC NRF52840 USB DONGLE
Features: AT-Command FW Pre-Loaded
Packaging: Retail Package
Sensitivity: -103dBm
Function: Transceiver, 802.15.4, Bluetooth
Frequency: 2.36GHz ~ 2.5GHz
Interface: UART, USB
Modulation or Protocol: 802.15.4 Zigbee, Bluetooth v5.4
Power - Output: 8dBm
Applications: Bluetooth, IoT Finished Device
Data Rate (Max): 2Mbps

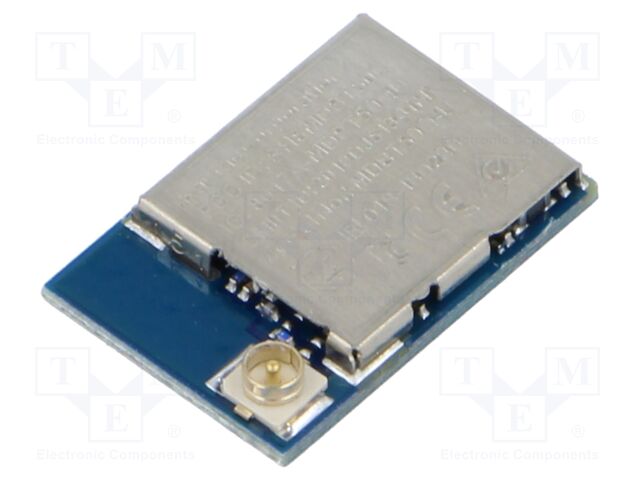

Hersteller: RAYTAC
Category: IoT (WiFi/Bluetooth) modules
Description: Module: Bluetooth Low Energy; Bluetooth: 5.0,5.1,5.2,5.4; 8dBm
Memory: 256kB RAM; 1MB FLASH
Mounting: SMD
Interface: GPIO; I2C; I2S; NFC; PMD; PWM; SPI; UART; USB
Number of inputs/outputs: 48
Bluetooth version: 5.1; 5.2; 5.4; 5.0
Supply voltage: 1.7...5.5V DC
Kind of architecture: Cortex M4
Data transfer rate: 2Mbps
Communictions protocol: ANT+; IEEE 802.15.4; Thread; ZigBee
Receiver sensitivity: -103dBm
Transmitter output power: 8dBm
Ciphering: AES128
Band: 2.4GHz
Kind of antenna: u.FL
Additional functions: NFC
Range: 750m
Components: nRF52840
Number of A/D channels: 8
Type of communications module: Bluetooth Low Energy
Operating temperature: -40...85°C
Dimensions: 15.5x10.5x2.05mm

Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BTU.FL SMD
Packaging: Bag
Package / Case: 61-SMD Module
Sensitivity: -103dBm
Mounting Type: Surface Mount
Frequency: 2.36GHz ~ 2.5GHz
Memory Size: 1MB Flash, 32kB RAM
Operating Temperature: -40°C ~ 85°C (TA)
Voltage - Supply: 1.7V ~ 3.6V
Power - Output: 8dBm
Data Rate: 2Mbps
Protocol: Bluetooth v5.4, Thread, Zigbee®
Current - Receiving: 3.7mA ~ 11.1mA
Current - Transmitting: 2.8mA ~ 32.7mA
Antenna Type: Antenna Not Included, U.FL
Utilized IC / Part: nRF52840
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: GPIO, I2C, SPI, UART, USB
Part Status: Active
DigiKey Programmable: Not Verified

Hersteller: RAYTAC
Category: IoT (WiFi/Bluetooth) modules
Description: Module: Bluetooth Low Energy; Bluetooth: 5.0,5.1,5.2,5.4; 8dBm
Memory: 256kB RAM; 1MB FLASH
Mounting: SMD
Interface: GPIO; I2C; I2S; NFC; PMD; PWM; SPI; UART; USB
Number of inputs/outputs: 48
Bluetooth version: 5.1; 5.2; 5.4; 5.0
Supply voltage: 1.7...5.5V DC
Kind of architecture: Cortex M4
Data transfer rate: 2Mbps
Communictions protocol: ANT+; IEEE 802.15.4; Thread; ZigBee
Receiver sensitivity: -103dBm
Transmitter output power: 8dBm
Ciphering: AES128
Band: 2.4GHz
Kind of antenna: u.FL
Additional functions: NFC
Range: 750m
Components: nRF52840
Number of A/D channels: 8
Type of communications module: Bluetooth Low Energy
Operating temperature: -40...85°C
Dimensions: 15.5x10.5x2.05mm

Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BTU.FL SMD
Packaging: Bag
Package / Case: 61-SMD Module
Sensitivity: -103dBm
Mounting Type: Surface Mount
Frequency: 2.36GHz ~ 2.5GHz
Memory Size: 64kB Flash, 16kB RAM
Operating Temperature: -40°C ~ 85°C (TA)
Voltage - Supply: 1.7V ~ 3.6V
Power - Output: 8dBm
Data Rate: 2Mbps
Protocol: Bluetooth v5.4, Thread, Zigbee®
Current - Receiving: 3.4mA ~ 10.7mA
Current - Transmitting: 2.3mA ~ 30.4mA
Antenna Type: Antenna Not Included, U.FL
Utilized IC / Part: nRF52833
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: GPIO, I2C, SPI, UART, USB
Part Status: Active
DigiKey Programmable: Not Verified

Hersteller: RAYTAC
Category: IoT (WiFi/Bluetooth) modules
Description: Module: Bluetooth Low Energy; Bluetooth: 5.0,5.1,5.2,5.4; 8dBm
Memory: 128kB RAM; 512kB FLASH
Mounting: SMD
Interface: GPIO; I2C; I2S; NFC; PMD; PWM; SPI; UART; USB
Number of inputs/outputs: 42
Bluetooth version: 5.1; 5.2; 5.4; 5.0
Supply voltage: 1.7...5.5V DC
Kind of architecture: Cortex M4
Data transfer rate: 2Mbps
Communictions protocol: ANT+; IEEE 802.15.4; Thread; ZigBee
Receiver sensitivity: -103dBm
Transmitter output power: 8dBm
Ciphering: AES128
Band: 2.4GHz
Kind of antenna: u.FL
Additional functions: NFC
Range: 750m
Components: nRF52833
Number of A/D channels: 8
Type of communications module: Bluetooth Low Energy
Operating temperature: -40...105°C
Dimensions: 15.5x10.5x2.05mm

Hersteller: RAYTAC
Category: IoT (WiFi/Bluetooth) modules
Description: Module: Bluetooth Low Energy; Bluetooth: 5.0,5.1,5.2,5.4; 8dBm
Memory: 128kB RAM; 512kB FLASH
Mounting: SMD
Interface: GPIO; I2C; I2S; NFC; PMD; PWM; SPI; UART; USB
Number of inputs/outputs: 42
Bluetooth version: 5.1; 5.2; 5.4; 5.0
Supply voltage: 1.7...5.5V DC
Kind of architecture: Cortex M4
Data transfer rate: 2Mbps
Communictions protocol: ANT+; IEEE 802.15.4; Thread; ZigBee
Receiver sensitivity: -103dBm
Transmitter output power: 8dBm
Ciphering: AES128
Band: 2.4GHz
Kind of antenna: u.FL
Additional functions: NFC
Range: 750m
Components: nRF52833
Number of A/D channels: 8
Type of communications module: Bluetooth Low Energy
Operating temperature: -40...105°C
Dimensions: 15.5x10.5x2.05mm

Hersteller: Raytac
Description: Nordic nRF52833 AT Command Centr
Packaging: Retail Package
Package / Case: 61-SMD Module
Sensitivity: -103dBm
Mounting Type: Surface Mount
Frequency: 2.36GHz ~ 2.5GHz
Memory Size: 512kB Flash, 128kB RAM
Operating Temperature: -40°C ~ 85°C
Voltage - Supply: 1.7V ~ 3.6V
Power - Output: 8dBm
Data Rate: 2Mbps
Protocol: Bluetooth v5.0
Current - Receiving: 3.4mA ~ 10.7mA
Current - Transmitting: 2.3mA ~ 30.4mA
Antenna Type: Antenna Not Included, U.FL
Utilized IC / Part: nRF52833
RF Family/Standard: Bluetooth
Serial Interfaces: UART, USB
Part Status: Active
DigiKey Programmable: Not Verified

Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BT CHIP SMD
Packaging: Bulk
Package / Case: 65-SMD Module
Sensitivity: -104dBm
Mounting Type: Surface Mount
Frequency: 2.4GHz
Memory Size: 1MB Flash, 512kB RAM
Operating Temperature: -40°C ~ 105°C
Voltage - Supply: 1.7V ~ 5.5V
Power - Output: 3dB
Data Rate: 2Mbps
Protocol: ANT+, Bluetooth v5.4, Thread, Zigbee®
Current - Receiving: 2.7mA ~ 7.9mA
Current - Transmitting: 1.5mA ~ 11.3mA
Antenna Type: Chip
Utilized IC / Part: nRF5340
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB
Part Status: Active
DigiKey Programmable: Not Verified

Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BT CHIP
Packaging: Bag
Sensitivity: -104dBm
Frequency: 2.4GHz
Memory Size: 1MB Flash, 512kB RAM
Operating Temperature: -40°C ~ 105°C
Voltage - Supply: 1.7V ~ 5.5V
Power - Output: 3dBm
Data Rate: 2Mbps
Protocol: Bluetooth v5.4
Current - Receiving: 2.7mA ~ 7.9mA
Current - Transmitting: 1.5mA ~ 11.3mA
Antenna Type: Integrated, Chip
Utilized IC / Part: nRF5340
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: ADC, GPIO, I2C, SPI, PDM, PWM, UART, USB
Part Status: Active
DigiKey Programmable: Not Verified

Hersteller: Raytac
Description: EVB MDBT53 NORDIC 5340 U.FL CONN
Packaging: Bulk
Type: 802.15.4 Wireless Microcontroller
Part Status: Active

Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BT TH SMD
Packaging: Bulk
Package / Case: 65-SMD Module
Sensitivity: -104dBm
Mounting Type: Surface Mount
Frequency: 2.4GHz
Memory Size: 1MB Flash, 512kB RAM
Operating Temperature: -40°C ~ 105°C
Voltage - Supply: 1.7V ~ 5.5V
Power - Output: 3dB
Data Rate: 2Mbps
Protocol: ANT+, Bluetooth v5.4, Thread, Zigbee®
Current - Receiving: 2.7mA ~ 7.9mA
Current - Transmitting: 1.5mA ~ 11.3mA
Antenna Type: PCB Trace
Utilized IC / Part: nRF5340
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB
Part Status: Active
DigiKey Programmable: Not Verified

Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BTU.FL SMD
Packaging: Bulk
Package / Case: 65-SMD Module
Sensitivity: -104dBm
Mounting Type: Surface Mount
Frequency: 2.4GHz
Memory Size: 1MB Flash, 512kB RAM
Operating Temperature: -40°C ~ 105°C
Voltage - Supply: 1.7V ~ 5.5V
Power - Output: 3dB
Data Rate: 2Mbps
Protocol: ANT+, Bluetooth v5.4, Thread, Zigbee®
Current - Receiving: 2.7mA ~ 7.9mA
Current - Transmitting: 1.5mA ~ 11.3mA
Antenna Type: Antenna Not Included, U.FL
Utilized IC / Part: nRF5340
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB
Part Status: Active
DigiKey Programmable: Not Verified

Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BT CHIP SMD
Packaging: Bag
Package / Case: 39-SMD Module
Sensitivity: -104dBm
Mounting Type: Surface Mount
Frequency: 2.4GHz
Memory Size: 1MB Flash, 512kB RAM
Operating Temperature: -40°C ~ 105°C
Voltage - Supply: 1.7V ~ 5.5V
Power - Output: 3dB
Data Rate: 2Mbps
Protocol: ANT+, Bluetooth v5.4, Thread, Zigbee®
Current - Receiving: 2.7mA ~ 7.9mA
Current - Transmitting: 1.5mA ~ 11.3mA
Antenna Type: Chip
Utilized IC / Part: nRF5340
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: ADC, GPIO, I2C, I2S, PWM, SPI, UART
Part Status: Active
DigiKey Programmable: Not Verified

Hersteller: Raytac
Description: EVB MDBT53V NORDIC 5340 CHIP ANT
Packaging: Bulk
For Use With/Related Products: nRF5340
Type: Transceiver; 802.15.4 (Thread, ZigBee®), ANT, Bluetooth® Smart 4.x Low Energy (BLE)
Supplied Contents: Board(s), Antenna(s)
Part Status: Active

Hersteller: Raytac
Description: RF TXRX MOD 802.15.4 BT TH SMD
Packaging: Bulk
Package / Case: 39-SMD Module
Sensitivity: -104dBm
Mounting Type: Surface Mount
Frequency: 2.4GHz
Memory Size: 1MB Flash, 512kB RAM
Operating Temperature: -40°C ~ 105°C
Voltage - Supply: 1.7V ~ 5.5V
Power - Output: 3dB
Data Rate: 2Mbps
Protocol: ANT+, Bluetooth v5.4, Thread, Zigbee®
Current - Receiving: 2.7mA ~ 7.9mA
Current - Transmitting: 1.5mA ~ 11.3mA
Antenna Type: PCB Trace
Utilized IC / Part: nRF5340
RF Family/Standard: 802.15.4, Bluetooth
Serial Interfaces: ADC, GPIO, I2C, I2S, PWM, SPI, UART
Part Status: Active
DigiKey Programmable: Not Verified
