Produkte > TF SEMICONDUCTOR SOLUTIONS > Alle Produkte des Herstellers TF SEMICONDUCTOR SOLUTIONS (33) > Seite 1 nach 1

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit Privatkunde
TF0211C TF0211C TF Semiconductor Solutions TF0211_ds%20r1.0-wsl.pdf Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.55 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0211E TF0211E TF Semiconductor Solutions TF0211_ds%20r1.0-wsl.pdf Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.55 EUR
6000+0.51 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0215 TF0215 TF Semiconductor Solutions TF0215-16_ds%20r1.0-wsl.pdf Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.55 EUR
6000+0.51 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0215S TF0215S TF Semiconductor Solutions TF0215-16_ds%20r1.0-wsl.pdf Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.55 EUR
6000+0.51 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0216 TF0216 TF Semiconductor Solutions TF0215-16_ds%20r1.0-wsl.pdf Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.55 EUR
6000+0.51 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0216S TF0216S TF Semiconductor Solutions TF0215-16_ds%20r1.0-wsl.pdf Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
3000+0.55 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0227 TF0227 TF Semiconductor Solutions TF0227-B-C_ds%20r1.0-wsl.pdf Description: DUAL, LOW SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 20ns, 20ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel, P-Channel MOSFET
Logic Voltage - VIL, VIH: 0.7V, 2.4V
Current - Peak Output (Source, Sink): 4A, 4A
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.74 EUR
5000+0.69 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0579U TF0579U TF Semiconductor Solutions Description: 100V, HIGH SIDE/LOW SIDE GATE DR
Packaging: Cut Tape (CT)
Package / Case: 10-WFDFN Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 6.5V ~ 18V
Input Type: TTL, Non-Inverting
Supplier Device Package: 10-DFN (3x3)
Rise / Fall Time (Typ): 27ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 6.5V
Current - Peak Output (Source, Sink): 1.5A, 2.5A
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF0579U TF0579U TF Semiconductor Solutions Description: 100V, HIGH SIDE/LOW SIDE GATE DR
Packaging: Tape & Reel (TR)
Package / Case: 10-WFDFN Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 6.5V ~ 18V
Input Type: TTL, Non-Inverting
Supplier Device Package: 10-DFN (3x3)
Rise / Fall Time (Typ): 27ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 6.5V
Current - Peak Output (Source, Sink): 1.5A, 2.5A
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
 Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2003M TF2003M TF Semiconductor Solutions TF2003M%20AI%20ds%20r1.0-wsl.pdf Description: 200V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.7 EUR
5000+0.65 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2005M TF2005M TF Semiconductor Solutions TF2005M%20AI%20ds%20r1.0-wsl.pdf Description: 200V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.79 EUR
5000+0.74 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2007U TF2007U TF Semiconductor Solutions TF2007U%20AI%20ds%20r1.0-wsl.pdf Description: 200V, HALF BRIDGE GATE DRIVER
DigiKey Programmable: Not Verified
Current - Peak Output (Source, Sink): 290mA, 600mA
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Gate Type: IGBT, N-Channel MOSFET
Number of Drivers: 2
Driven Configuration: Half-Bridge
Channel Type: Independent
Rise / Fall Time (Typ): 70ns, 35ns
Supplier Device Package: 8-SOIC
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Packaging: Tape & Reel (TR)
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.93 EUR
5000+0.87 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2101M TF2101M TF Semiconductor Solutions TF2101M%20ds%20r1.0-wsl.pdf Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Cut Tape (CT)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF2103M TF2103M TF Semiconductor Solutions TF2103M_ds%20r1.0-wsl.pdf Description: 600V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.08V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.84 EUR
5000+0.79 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH

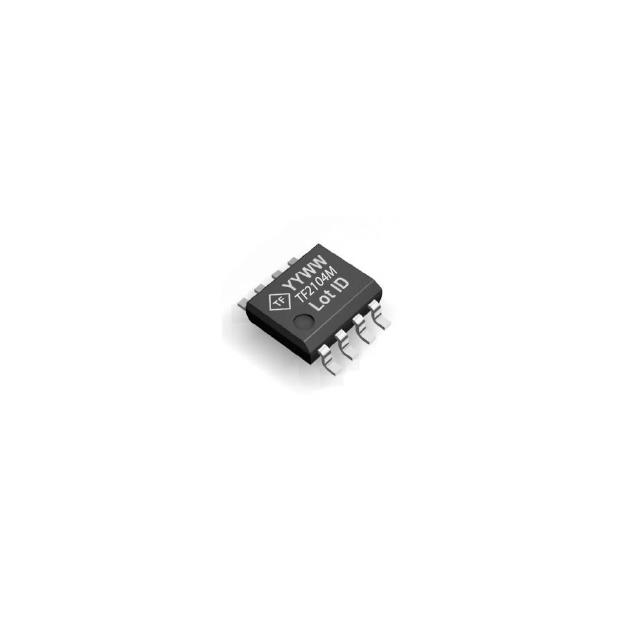

TF2104M TF2104M TF Semiconductor Solutions TF2104M_ds%20r1.0-wsl.pdf Description: 600V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.08V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.95 EUR
5000+0.89 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21064M TF21064M TF Semiconductor Solutions TF21064M_ds%20r1.0-wsl.pdf Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 14-SOIC
Rise / Fall Time (Typ): 100ns, 35ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.98 EUR
5000+0.92 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2106M TF2106M TF Semiconductor Solutions TF2106M_ds_r1.0-wls.pdf Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 100ns, 35ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.9 EUR
5000+0.84 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2110M TF2110M TF Semiconductor Solutions TF2110M-2113M_ds%20r1.0-wsl.pdf Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Cut Tape (CT)
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 16-SOIC
Rise / Fall Time (Typ): 15ns, 13ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 6V, 9.5V
Current - Peak Output (Source, Sink): 2.5A, 2.5A
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF2113M TF2113M TF Semiconductor Solutions TF2110M-2113M_ds%20r1.0-wsl.pdf Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Cut Tape (CT)
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 16-SOIC
Rise / Fall Time (Typ): 15ns, 13ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 6V, 9.5V
Current - Peak Output (Source, Sink): 2.5A, 2.5A
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF2117 TF2117 TF Semiconductor Solutions TF2117-2118_ds%20r.0.pdf Description: 600V, HIGH-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 75ns, 35ns
Channel Type: Single
Driven Configuration: High-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 6V, 9.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.82 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2118 TF2118 TF Semiconductor Solutions TF2117-2118_ds%20r.0.pdf Description: 600V, HIGH-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 75ns, 35ns
Channel Type: Single
Driven Configuration: High-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 6V, 9.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.93 EUR
5000+0.87 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21364M TF21364M TF Semiconductor Solutions Description: 600V, 3-PHASE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Inverting
Supplier Device Package: 28-SOIC
Rise / Fall Time (Typ): 90ns, 35ns
Channel Type: 3-Phase
Driven Configuration: Half-Bridge
Number of Drivers: 6
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 200mA, 350mA
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
1500+2.06 EUR
3000+1.92 EUR
Mindestbestellmenge: 1500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2136M TF2136M TF Semiconductor Solutions TF2136M_ds%20r1.0-wsl.pdf Description: 600V, 3-PHASE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 28-SOIC
Rise / Fall Time (Typ): 90ns, 35ns
Channel Type: 3-Phase
Driven Configuration: Half-Bridge
Number of Drivers: 6
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 200mA, 350mA
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
1500+1.92 EUR
3000+1.78 EUR
Mindestbestellmenge: 1500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21814M TF21814M TF Semiconductor Solutions TF21814M_ds%20r1.0-wls.pdf Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Channel Type: Independent
Rise / Fall Time (Typ): 40ns, 20ns
Supplier Device Package: 14-SOIC
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Packaging: Cut Tape (CT)
DigiKey Programmable: Not Verified
Current - Peak Output (Source, Sink): 1.9A, 2.3A
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Gate Type: IGBT, MOSFET (N-Channel)
Number of Drivers: 2
Driven Configuration: High-Side and Low-Side
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF2181M TF2181M TF Semiconductor Solutions TF2181M_ds%20r1.0.pdf Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
DigiKey Programmable: Not Verified
Current - Peak Output (Source, Sink): 1.9A, 2.3A
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Gate Type: IGBT, N-Channel MOSFET
Number of Drivers: 2
Driven Configuration: High-Side and Low-Side
Channel Type: Independent
Rise / Fall Time (Typ): 40ns, 20ns
Supplier Device Package: 8-SOIC
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Packaging: Tape & Reel (TR)
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+1.24 EUR
5000+1.17 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2183M TF2183M TF Semiconductor Solutions Description: 600V, HALF-BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 25ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Current - Peak Output (Source, Sink): 4.5A, 4.5A
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+1.27 EUR
5000+1.21 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21844M TF21844M TF Semiconductor Solutions Description: 600V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 14-SOIC
Rise / Fall Time (Typ): 40ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Current - Peak Output (Source, Sink): 1.9A, 2.3A
DigiKey Programmable: Not Verified
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
2500+1.2 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2184M TF2184M TF Semiconductor Solutions TF2184M%20final%20ds%20r1.0.pdf Description: 600V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 40ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Current - Peak Output (Source, Sink): 1.9A, 2.3A
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+1.14 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21904M TF21904M TF Semiconductor Solutions TF21904M%20final%20ds%20r1.0.pdf Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 14-SOIC
Rise / Fall Time (Typ): 25ns, 20ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Current - Peak Output (Source, Sink): 4.5A, 4.5A
DigiKey Programmable: Not Verified
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
2500+1.57 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2190M TF2190M TF Semiconductor Solutions Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
DigiKey Programmable: Not Verified
Current - Peak Output (Source, Sink): 4.5A, 4.5A
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Gate Type: IGBT, N-Channel MOSFET
Number of Drivers: 2
Driven Configuration: High-Side and Low-Side
Channel Type: Independent
Rise / Fall Time (Typ): 25ns, 20ns
Supplier Device Package: 8-SOIC
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Packaging: Tape & Reel (TR)
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
2500+1.48 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2304M TF2304M TF Semiconductor Solutions Description: 600V, HALF-BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.7V, 2.3V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
2500+0.89 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2388M TF2388M TF Semiconductor Solutions TF2388M_ds%20r1.0-wsl.pdf Description: 600V, 3-PHASE GATE DRIVER
Packaging: Cut Tape (CT)
Package / Case: 20-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 20-SOIC
Rise / Fall Time (Typ): 45ns, 25ns
Channel Type: 3-Phase
Driven Configuration: Half-Bridge
Number of Drivers: 6
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 420mA, 750mA
DigiKey Programmable: Not Verified
auf Bestellung 1449 Stücke:
Lieferzeit 10-14 Tag (e)
5+4.63 EUR
10+2.98 EUR
25+2.55 EUR
100+2.06 EUR
250+1.82 EUR
500+1.68 EUR
Mindestbestellmenge: 5 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF23892M TF23892M TF Semiconductor Solutions TF23892M_ds%20r1.0-wsl.pdf Description: 600V, 3-PHASE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Inverting
Supplier Device Package: 28-SOIC
Rise / Fall Time (Typ): 40ns, 25ns
Channel Type: 3-Phase
Driven Configuration: Half-Bridge
Number of Drivers: 6
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 350mA, 650mA
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
1500+1.92 EUR
3000+1.78 EUR
Mindestbestellmenge: 1500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0211C TF0211_ds%20r1.0-wsl.pdf
TF0211C
Hersteller: TF Semiconductor Solutions
Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
3000+0.55 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0211E TF0211_ds%20r1.0-wsl.pdf
TF0211E
Hersteller: TF Semiconductor Solutions
Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
3000+0.55 EUR
6000+0.51 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0215 TF0215-16_ds%20r1.0-wsl.pdf
TF0215
Hersteller: TF Semiconductor Solutions
Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
3000+0.55 EUR
6000+0.51 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0215S TF0215-16_ds%20r1.0-wsl.pdf
TF0215S
Hersteller: TF Semiconductor Solutions
Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
3000+0.55 EUR
6000+0.51 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0216 TF0215-16_ds%20r1.0-wsl.pdf
TF0216
Hersteller: TF Semiconductor Solutions
Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
3000+0.55 EUR
6000+0.51 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0216S TF0215-16_ds%20r1.0-wsl.pdf
TF0216S
Hersteller: TF Semiconductor Solutions
Description: LOW SIDE, SINGLE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: SOT-23-5 Thin, TSOT-23-5
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: SOT-23-5
Rise / Fall Time (Typ): 15ns, 15ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 1.9A, 1.8A
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
3000+0.55 EUR
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0227 TF0227-B-C_ds%20r1.0-wsl.pdf
TF0227
Hersteller: TF Semiconductor Solutions
Description: DUAL, LOW SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 18V
Input Type: Inverting, Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 20ns, 20ns
Channel Type: Single
Driven Configuration: Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel, P-Channel MOSFET
Logic Voltage - VIL, VIH: 0.7V, 2.4V
Current - Peak Output (Source, Sink): 4A, 4A
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.74 EUR
5000+0.69 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF0579U
TF0579U
Hersteller: TF Semiconductor Solutions
Description: 100V, HIGH SIDE/LOW SIDE GATE DR
Packaging: Cut Tape (CT)
Package / Case: 10-WFDFN Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 6.5V ~ 18V
Input Type: TTL, Non-Inverting
Supplier Device Package: 10-DFN (3x3)
Rise / Fall Time (Typ): 27ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 6.5V
Current - Peak Output (Source, Sink): 1.5A, 2.5A
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF0579U
TF0579U
Hersteller: TF Semiconductor Solutions
Description: 100V, HIGH SIDE/LOW SIDE GATE DR
Packaging: Tape & Reel (TR)
Package / Case: 10-WFDFN Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 6.5V ~ 18V
Input Type: TTL, Non-Inverting
Supplier Device Package: 10-DFN (3x3)
Rise / Fall Time (Typ): 27ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 6.5V
Current - Peak Output (Source, Sink): 1.5A, 2.5A
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2003M TF2003M%20AI%20ds%20r1.0-wsl.pdf
TF2003M
Hersteller: TF Semiconductor Solutions
Description: 200V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.7 EUR
5000+0.65 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2005M TF2005M%20AI%20ds%20r1.0-wsl.pdf
TF2005M
Hersteller: TF Semiconductor Solutions
Description: 200V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.79 EUR
5000+0.74 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2007U TF2007U%20AI%20ds%20r1.0-wsl.pdf
TF2007U
Hersteller: TF Semiconductor Solutions
Description: 200V, HALF BRIDGE GATE DRIVER
DigiKey Programmable: Not Verified
Current - Peak Output (Source, Sink): 290mA, 600mA
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Gate Type: IGBT, N-Channel MOSFET
Number of Drivers: 2
Driven Configuration: Half-Bridge
Channel Type: Independent
Rise / Fall Time (Typ): 70ns, 35ns
Supplier Device Package: 8-SOIC
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Packaging: Tape & Reel (TR)
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.93 EUR
5000+0.87 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2101M TF2101M%20ds%20r1.0-wsl.pdf
TF2101M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Cut Tape (CT)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF2103M TF2103M_ds%20r1.0-wsl.pdf
TF2103M
Hersteller: TF Semiconductor Solutions
Description: 600V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.08V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.84 EUR
5000+0.79 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2104M TF2104M_ds%20r1.0-wsl.pdf
TF2104M
Hersteller: TF Semiconductor Solutions
Description: 600V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.08V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.95 EUR
5000+0.89 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21064M TF21064M_ds%20r1.0-wsl.pdf
TF21064M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 14-SOIC
Rise / Fall Time (Typ): 100ns, 35ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.98 EUR
5000+0.92 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2106M TF2106M_ds_r1.0-wls.pdf
TF2106M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 100ns, 35ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.06V, 2.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.9 EUR
5000+0.84 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2110M TF2110M-2113M_ds%20r1.0-wsl.pdf
TF2110M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Cut Tape (CT)
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 16-SOIC
Rise / Fall Time (Typ): 15ns, 13ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 6V, 9.5V
Current - Peak Output (Source, Sink): 2.5A, 2.5A
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF2113M TF2110M-2113M_ds%20r1.0-wsl.pdf
TF2113M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Cut Tape (CT)
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 16-SOIC
Rise / Fall Time (Typ): 15ns, 13ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 6V, 9.5V
Current - Peak Output (Source, Sink): 2.5A, 2.5A
DigiKey Programmable: Not Verified
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF2117 TF2117-2118_ds%20r.0.pdf
TF2117
Hersteller: TF Semiconductor Solutions
Description: 600V, HIGH-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 75ns, 35ns
Channel Type: Single
Driven Configuration: High-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 6V, 9.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.82 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2118 TF2117-2118_ds%20r.0.pdf
TF2118
Hersteller: TF Semiconductor Solutions
Description: 600V, HIGH-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 75ns, 35ns
Channel Type: Single
Driven Configuration: High-Side
Number of Drivers: 1
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 6V, 9.5V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.93 EUR
5000+0.87 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21364M
TF21364M
Hersteller: TF Semiconductor Solutions
Description: 600V, 3-PHASE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Inverting
Supplier Device Package: 28-SOIC
Rise / Fall Time (Typ): 90ns, 35ns
Channel Type: 3-Phase
Driven Configuration: Half-Bridge
Number of Drivers: 6
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 200mA, 350mA
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
1500+2.06 EUR
3000+1.92 EUR
Mindestbestellmenge: 1500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2136M TF2136M_ds%20r1.0-wsl.pdf
TF2136M
Hersteller: TF Semiconductor Solutions
Description: 600V, 3-PHASE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 28-SOIC
Rise / Fall Time (Typ): 90ns, 35ns
Channel Type: 3-Phase
Driven Configuration: Half-Bridge
Number of Drivers: 6
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 200mA, 350mA
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
1500+1.92 EUR
3000+1.78 EUR
Mindestbestellmenge: 1500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21814M TF21814M_ds%20r1.0-wls.pdf
TF21814M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Channel Type: Independent
Rise / Fall Time (Typ): 40ns, 20ns
Supplier Device Package: 14-SOIC
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Packaging: Cut Tape (CT)
DigiKey Programmable: Not Verified
Current - Peak Output (Source, Sink): 1.9A, 2.3A
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Gate Type: IGBT, MOSFET (N-Channel)
Number of Drivers: 2
Driven Configuration: High-Side and Low-Side
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TF2181M TF2181M_ds%20r1.0.pdf
TF2181M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
DigiKey Programmable: Not Verified
Current - Peak Output (Source, Sink): 1.9A, 2.3A
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Gate Type: IGBT, N-Channel MOSFET
Number of Drivers: 2
Driven Configuration: High-Side and Low-Side
Channel Type: Independent
Rise / Fall Time (Typ): 40ns, 20ns
Supplier Device Package: 8-SOIC
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Packaging: Tape & Reel (TR)
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+1.24 EUR
5000+1.17 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2183M
TF2183M
Hersteller: TF Semiconductor Solutions
Description: 600V, HALF-BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 25ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Current - Peak Output (Source, Sink): 4.5A, 4.5A
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+1.27 EUR
5000+1.21 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21844M
TF21844M
Hersteller: TF Semiconductor Solutions
Description: 600V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 14-SOIC
Rise / Fall Time (Typ): 40ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Current - Peak Output (Source, Sink): 1.9A, 2.3A
DigiKey Programmable: Not Verified
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+1.2 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2184M TF2184M%20final%20ds%20r1.0.pdf
TF2184M
Hersteller: TF Semiconductor Solutions
Description: 600V, HALF BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 40ns, 20ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Current - Peak Output (Source, Sink): 1.9A, 2.3A
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+1.14 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF21904M TF21904M%20final%20ds%20r1.0.pdf
TF21904M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 14-SOIC
Rise / Fall Time (Typ): 25ns, 20ns
Channel Type: Independent
Driven Configuration: High-Side and Low-Side
Number of Drivers: 2
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Current - Peak Output (Source, Sink): 4.5A, 4.5A
DigiKey Programmable: Not Verified
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+1.57 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2190M
TF2190M
Hersteller: TF Semiconductor Solutions
Description: 600V HI-SIDE/LO-SIDE GATE DRIVER
DigiKey Programmable: Not Verified
Current - Peak Output (Source, Sink): 4.5A, 4.5A
Logic Voltage - VIL, VIH: 0.8V, 2.5V
Gate Type: IGBT, N-Channel MOSFET
Number of Drivers: 2
Driven Configuration: High-Side and Low-Side
Channel Type: Independent
Rise / Fall Time (Typ): 25ns, 20ns
Supplier Device Package: 8-SOIC
Input Type: Non-Inverting
Voltage - Supply: 10V ~ 20V
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Packaging: Tape & Reel (TR)
auf Bestellung 2500 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+1.48 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2304M
TF2304M
Hersteller: TF Semiconductor Solutions
Description: 600V, HALF-BRIDGE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 8-SOIC
Rise / Fall Time (Typ): 70ns, 35ns
Channel Type: Independent
Driven Configuration: Half-Bridge
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.7V, 2.3V
Current - Peak Output (Source, Sink): 290mA, 600mA
DigiKey Programmable: Not Verified
auf Bestellung 5000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
2500+0.89 EUR
Mindestbestellmenge: 2500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF2388M TF2388M_ds%20r1.0-wsl.pdf
TF2388M
Hersteller: TF Semiconductor Solutions
Description: 600V, 3-PHASE GATE DRIVER
Packaging: Cut Tape (CT)
Package / Case: 20-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Non-Inverting
Supplier Device Package: 20-SOIC
Rise / Fall Time (Typ): 45ns, 25ns
Channel Type: 3-Phase
Driven Configuration: Half-Bridge
Number of Drivers: 6
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 420mA, 750mA
DigiKey Programmable: Not Verified
auf Bestellung 1449 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
5+4.63 EUR
10+2.98 EUR
25+2.55 EUR
100+2.06 EUR
250+1.82 EUR
500+1.68 EUR
Mindestbestellmenge: 5 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
TF23892M TF23892M_ds%20r1.0-wsl.pdf
TF23892M
Hersteller: TF Semiconductor Solutions
Description: 600V, 3-PHASE GATE DRIVER
Packaging: Tape & Reel (TR)
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 10V ~ 20V
Input Type: Inverting
Supplier Device Package: 28-SOIC
Rise / Fall Time (Typ): 40ns, 25ns
Channel Type: 3-Phase
Driven Configuration: Half-Bridge
Number of Drivers: 6
Gate Type: IGBT, N-Channel MOSFET
Logic Voltage - VIL, VIH: 0.8V, 2.4V
Current - Peak Output (Source, Sink): 350mA, 650mA
DigiKey Programmable: Not Verified
auf Bestellung 3000 Stücke:
Lieferzeit 10-14 Tag (e)
AnzahlPrivatkunde
1500+1.92 EUR
3000+1.78 EUR
Mindestbestellmenge: 1500 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
