Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ohne MwSt
UR39/35/15-3C90 Ferroxcube UR39_35_15.pdf Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 1.524" (38.70mm)
Width: 0.587" (14.90mm)
Height: 1.386" (35.20mm)
Core Type: UR
Supplier Device Package: UR 39 x 35 x 15
Finish: Uncoated
Part Status: Active
Produkt ist nicht verfügbar
UR42/21/12-3C90 Ferroxcube UR42_21_12.pdf Description: U AND UR CORES
Produkt ist nicht verfügbar
UR48/39/17-3C90 Ferroxcube UR48_39_17.pdf Description: UR CORES
Produkt ist nicht verfügbar
UR55/38/36-3C90 UR55/38/36-3C90 Ferroxcube UR55_38_36.pdf Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.161" (54.90mm)
Width: 0.925" (23.50mm)
Height: 1.476" (37.50mm)
Core Type: UR
Supplier Device Package: UR 55 x 38 x 36
Finish: Uncoated
Part Status: Active
auf Bestellung 135 Stücke:
Lieferzeit 10-14 Tag (e)
1+21.38 EUR
10+ 18.22 EUR
48+ 13.46 EUR
96+ 11.88 EUR
UR57/28/16-3C90 Ferroxcube UR57_28_16.pdf Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.270" (57.65mm)
Width: 0.610" (15.50mm)
Height: 1.118" (28.40mm)
Core Type: UR
Supplier Device Package: UR 57 x 28 x 16
Finish: Uncoated
Part Status: Active
Produkt ist nicht verfügbar
UR64/29/14-3C90 Ferroxcube UR64_29_14.pdf Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.520" (64.00mm)
Width: 0.543" (13.80mm)
Height: 1.161" (29.50mm)
Core Type: UR
Supplier Device Package: UR 64 x 29 x 14
Finish: Uncoated
Produkt ist nicht verfügbar
UR64/40/20-3C90 UR64/40/20-3C90 Ferroxcube UR64_40_20.pdf Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.520" (64.00mm)
Width: 0.945" (24.00mm)
Height: 1.594" (40.50mm)
Core Type: UR
Supplier Device Package: UR 64 x 40 x 20
Finish: Uncoated
Part Status: Active
auf Bestellung 1192 Stücke:
Lieferzeit 10-14 Tag (e)
2+15.91 EUR
10+ 13.54 EUR
25+ 10.3 EUR
72+ 10.01 EUR
144+ 8.83 EUR
288+ 8.24 EUR
504+ 7.65 EUR
1008+ 7.36 EUR
Mindestbestellmenge: 2
UR70/33/17-3C90 UR70/33/17-3C90 Ferroxcube UR70_33_17.pdf Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.692" (68.37mm)
Width: 0.679' (17.25mm)
Height: 1.313" (33.35mm)
Core Type: UR
Supplier Device Package: UR 70 x 33 x 17
Finish: Uncoated
Part Status: Active
auf Bestellung 479 Stücke:
Lieferzeit 10-14 Tag (e)
2+13.73 EUR
10+ 11.7 EUR
25+ 8.9 EUR
50+ 8.65 EUR
128+ 7.63 EUR
256+ 7.12 EUR
Mindestbestellmenge: 2

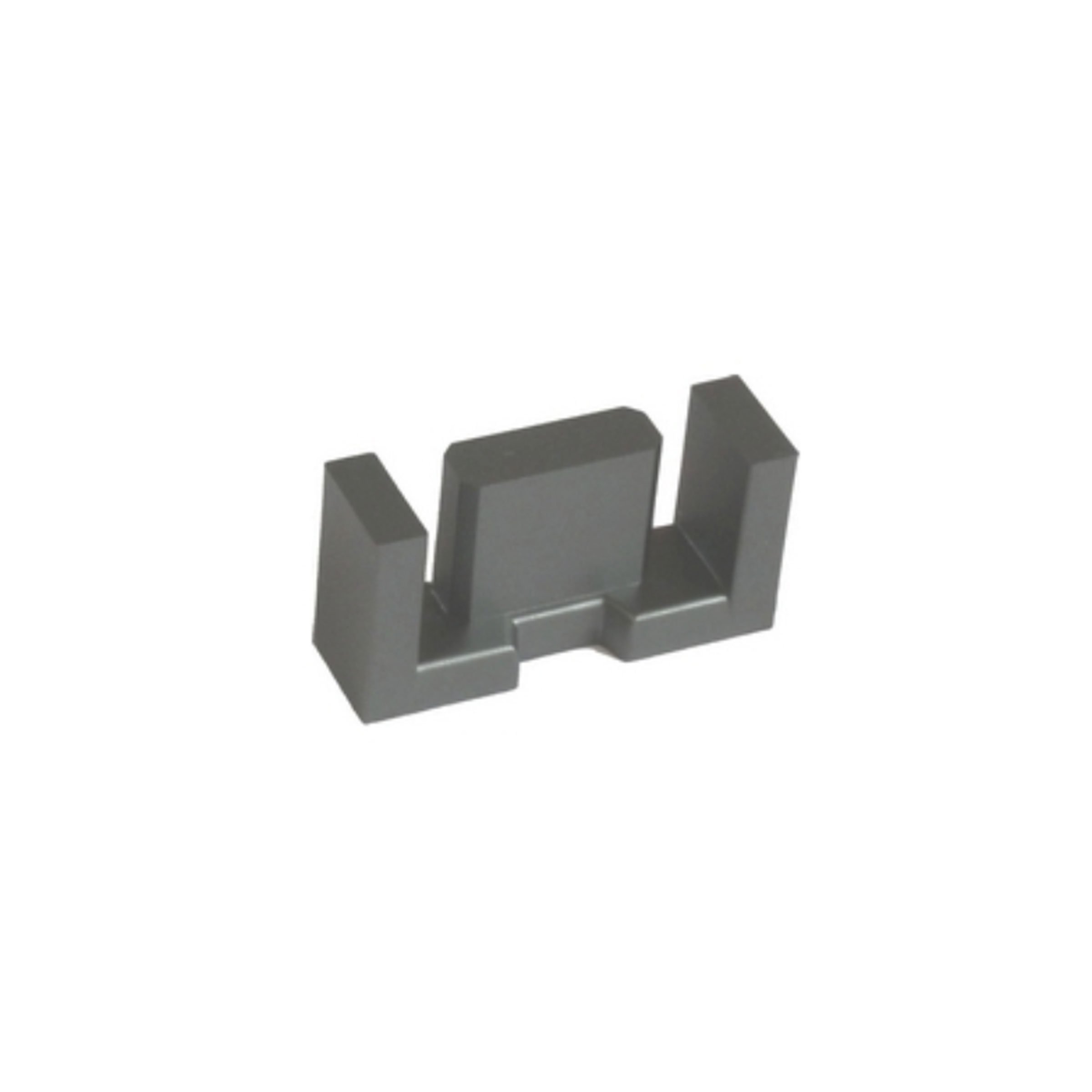

EFD10/5/3-3C90-A25-S Ferroxcube Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±5%
Packaging: Bulk
Material: 3C90
Length: 0.059" (1.50mm)
Width: 0.106" (2.70mm)
Height: 0.216" (5.50mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Finish: Uncoated
Gap: Gapped
Effective Permeability (µe): 66
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD10/5/3-3C90-A40-S Ferroxcube Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±8%
Packaging: Bulk
Material: 3C90
Length: 0.059" (1.50mm)
Width: 0.106" (2.70mm)
Height: 0.216" (5.50mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 105
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD10/5/3-3C90-S Ferroxcube Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C90
Length: 0.059" (1.50mm)
Width: 0.106" (2.70mm)
Height: 0.216" (5.50mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1510
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD10/5/3-3C96-A63-S Ferroxcube EFD10_5_3.pdf Description: FERRITE CORE EFD 63NH 3C96 2PC
Tolerance: ±8%
Packaging: Bulk
Material: 3C96
Length: 0.413" (10.50mm)
Width: 0.106" (2.70mm)
Height: 0.205" (5.20mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 165
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD10/5/3-3C96-S Ferroxcube EFD10_5_3.pdf Description: FERRITE CORE EFD 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 0.059" (1.50mm)
Width: 0.106" (2.70mm)
Height: 0.216" (5.50mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1380
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD12/6/3.5-3C96-A100-S Ferroxcube EFD12_6_3.5.pdf Description: FERRITE CORE EFD 100NH 3C96 2PC
Tolerance: ±10%
Packaging: Bulk
Material: 3C96
Length: 0.492" (12.50mm)
Width: 0.138" (3.50mm)
Height: 0.244" (6.20mm)
Core Type: EFD
Supplier Device Package: EFD 12 x 6 x 3.5
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 200
Core Factor (ΣI/A) mm⁻¹: 2.5
Effective Length (le) mm: 28.5
Effective Area (Ae) mm²: 11.4
Minimum Core Cross Section (Amin) mm²: 10.7
Effective Magnetic Volume (Ve) mm³: 325
Produkt ist nicht verfügbar
EFD15/8/5-3C90-A160-S Ferroxcube Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±10%
Packaging: Bulk
Material: 3C90
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 290
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C90-S Ferroxcube Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C90
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C95-A100-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 100NH 3C95 2PC
Tolerance: ±6%
Packaging: Bulk
Material: 3C95
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 180
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C95-A63-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 63NH 3C95 2PC
Tolerance: ±4%
Packaging: Bulk
Material: 3C95
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 114
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C95-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 3C95 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C95
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 2070
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C96-A100-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 100NH 3C96 2PC
Tolerance: ±6%
Packaging: Bulk
Material: 3C96
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 180
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C96-A63-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 63NH 3C96 2PC
Tolerance: ±4%
Packaging: Bulk
Material: 3C96
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 114
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C96-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1520
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3F36-A100-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 3F36 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F36
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Gapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3F36-A63-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 63NH 3F36 2PC
Tolerance: ±4%
Packaging: Bulk
Material: 3F36
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 114
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3F46-A100-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 100NH 3F46 2PC
Tolerance: ±6%
Packaging: Bulk
Material: 3F46
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 180
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3F46-A63-S Ferroxcube EFD15_8_5.pdf Description: FERRITE CORE EFD 63NH 3F46 2PC
Tolerance: ±4%
Packaging: Bulk
Material: 3F46
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 114
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EP10-3C91 Ferroxcube EP10.pdf Description: FERRITE CORE EP 3C91 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C91
Length: 0.453" (11.50mm)
Width: 0.300" (7.60mm)
Height: 0.402" (10.20mm)
Core Type: EP
Supplier Device Package: EP 10
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.7
Effective Length (le) mm: 19.3
Effective Area (Ae) mm²: 11.3
Minimum Core Cross Section (Amin) mm²: 8.55
Effective Magnetic Volume (Ve) mm³: 215
Produkt ist nicht verfügbar
EP10-3F36 Ferroxcube EP10.pdf Description: EP AND EPX CORES 2PC SET
Produkt ist nicht verfügbar
EP13-3C90 Ferroxcube Description: FERRITE CORE EP 1.65UH 3C90 2PC
Packaging: Bulk
Tolerance: ±25%
Material: 3C90
Length: 0.512" (13.00mm)
Width: 0.504" (12.80mm)
Height: 0.354" (9.00mm)
Core Type: EP
Supplier Device Package: EP 13
Inductance Factor (Al): 1.65 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1600
Core Factor (ΣI/A) mm⁻¹: 1.24
Effective Length (le) mm: 24.2
Effective Area (Ae) mm²: 19.5
Minimum Core Cross Section (Amin) mm²: 14.9
Effective Magnetic Volume (Ve) mm³: 472
Produkt ist nicht verfügbar
EP13-3C91 Ferroxcube EP13.pdf Description: EP AND EPX CORES 2PC SET
Produkt ist nicht verfügbar
EP20-3C90 Ferroxcube EP20-3C90.pdf Description: FERRITE CORE EP 4.435UH 3C90 2PC
Packaging: Bulk
Tolerance: ±25%
Material: 3C90
Length: 0.945" (24.00mm)
Width: 0.591" (15.00mm)
Height: 0.843" (21.40mm)
Core Type: EP
Supplier Device Package: EP 20
Inductance Factor (Al): 4.435 µH
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1840
Core Factor (ΣI/A) mm⁻¹: 0.52
Effective Length (le) mm: 41.1
Effective Area (Ae) mm²: 78.7
Minimum Core Cross Section (Amin) mm²: 60.8
Effective Magnetic Volume (Ve) mm³: 3230
auf Bestellung 619 Stücke:
Lieferzeit 10-14 Tag (e)
4+4.63 EUR
10+ 3.97 EUR
25+ 2.98 EUR
50+ 2.89 EUR
100+ 2.56 EUR
320+ 2.4 EUR
Mindestbestellmenge: 4
EP20-3F36 Ferroxcube EP20.pdf Description: EP AND EPX CORES 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F36
Length: 0.945" (24.00mm)
Width: 0.591" (15.00mm)
Height: 0.843" (21.40mm)
Core Type: EP
Supplier Device Package: EP 20
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1120
Core Factor (ΣI/A) mm⁻¹: 0.52
Effective Length (le) mm: 41.1
Effective Area (Ae) mm²: 78.7
Minimum Core Cross Section (Amin) mm²: 60.8
Effective Magnetic Volume (Ve) mm³: 3230
Produkt ist nicht verfügbar
EP7-3C90 Ferroxcube Description: FERRITE CORE EP 3C90 2PC SET
Packaging: Bulk
Material: 3C90
Length: 0.370" (9.40mm)
Width: 0.256" (6.50mm)
Height: 0.295" (7.50mm)
Core Type: EP
Supplier Device Package: EP 7
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.45
Effective Length (le) mm: 15.5
Effective Area (Ae) mm²: 10.7
Minimum Core Cross Section (Amin) mm²: 8.55
Effective Magnetic Volume (Ve) mm³: 165
Produkt ist nicht verfügbar
ER11/2.5/6-3C96-S Ferroxcube ER11_2.5_6.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C92-A100-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C92-A160-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C92-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C95-A160-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C95-A63-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C95-S Ferroxcube ER14.5_3_7.pdf Description: FERRITE CORE ER 3C95 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C95
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C96-A100-S Ferroxcube ER14.5_3_7.pdf Description: FERRITE CORE ER 100NH 3C96 2PC
Packaging: Bulk
Tolerance: ±3%
Material: 3C96
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 86
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C96-A160-S Ferroxcube ER14.5_3_7.pdf Description: FERRITE CORE ER 160NH 3C96 2PC
Packaging: Bulk
Tolerance: ±4%
Material: 3C96
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Inductance Factor (Al): 160 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 140
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C96-S Ferroxcube ER14.5_3_7.pdf Description: FERRITE CORE ER 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C97-A160-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C97-A63-S Ferroxcube ER14.5_3_7.pdf Description: FERRITE CORE ER 63NH 3C97 2PC
Packaging: Bulk
Tolerance: ±3%
Material: 3C97
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 54
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C97-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F36-A100-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F36-A160-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F36-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F46-A100-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F46-A160-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F46-S Ferroxcube ER14.5_3_7.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER18/3.2/10-3C95-S Ferroxcube ER18_3.2_10.pdf Description: FERRITE CORE ER 3C95 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C95
Length: 0.709" (18.00mm)
Width: 0.124" (3.15mm)
Height: 0.382" (9.70mm)
Core Type: ER
Supplier Device Package: ER 18 x 3.2 x 10
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.73
Effective Length (le) mm: 22.1
Effective Area (Ae) mm²: 30.2
Minimum Core Cross Section (Amin) mm²: 30.1
Effective Magnetic Volume (Ve) mm³: 667
Produkt ist nicht verfügbar
ER9.5/2.5/5-3C92-S Ferroxcube ER9.5_2.5_5.pdf Description: FERRITE CORE ER 3C92 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C92
Length: 0.374" (9.50mm)
Width: 0.197" (5.00mm)
Height: 0.096" (2.45mm)
Core Type: ER
Supplier Device Package: ER 9.5 x 2.5 x 5
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1000
Core Factor (ΣI/A) mm⁻¹: 1.67
Effective Length (le) mm: 14.2
Effective Area (Ae) mm²: 8.47
Minimum Core Cross Section (Amin) mm²: 7.6
Effective Magnetic Volume (Ve) mm³: 120
Produkt ist nicht verfügbar
ER9.5/2.5/5-3C95-S Ferroxcube ER9.5_2.5_5.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER9.5/2.5/5-3C96-S Ferroxcube ER9.5_2.5_5.pdf Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER9.5/2.5/5-3F46-S Ferroxcube ER9.5_2.5_5.pdf Description: PLANAR ER CORES 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 0.374" (9.50mm)
Width: 0.197" (5.00mm)
Height: 0.096" (2.45mm)
Core Type: ER
Supplier Device Package: ER 9.5 x 2.5 x 5
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 587
Core Factor (ΣI/A) mm⁻¹: 1.67
Effective Length (le) mm: 14.2
Effective Area (Ae) mm²: 8.47
Minimum Core Cross Section (Amin) mm²: 7.6
Effective Magnetic Volume (Ve) mm³: 120
Produkt ist nicht verfügbar
P11/7-3C90 Ferroxcube Description: FERRITE CORE P 1.7UH 3C90 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3C90
Diameter: 0.437" (11.10mm)
Height: 0.256" (6.50mm)
Core Type: P
Supplier Device Package: P 11 x 7
Inductance Factor (Al): 1.7 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1300
Core Factor (ΣI/A) mm⁻¹: 0.956
Effective Length (le) mm: 15.5
Effective Area (Ae) mm²: 16.2
Minimum Core Cross Section (Amin) mm²: 13.2
Effective Magnetic Volume (Ve) mm³: 251
Produkt ist nicht verfügbar
P22/13-3C95 Ferroxcube Description: FERRITE CORE P 5.2UH 3C95 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3C95
Diameter: 0.866" (22.00mm)
Height: 0.528" (13.40mm)
Core Type: P
Supplier Device Package: P 22 x 13
Inductance Factor (Al): 5.2 µH
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 2060
Core Factor (ΣI/A) mm⁻¹: 0.497
Effective Length (le) mm: 31.5
Effective Area (Ae) mm²: 63.4
Minimum Core Cross Section (Amin) mm²: 50.9
Effective Magnetic Volume (Ve) mm³: 2000
Produkt ist nicht verfügbar
P26/16-3C90 Ferroxcube Description: FERRITE CORE P 5.3UH 3C90 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3C90
Diameter: 1.004" (25.50mm)
Height: 0.634" (16.10mm)
Core Type: P (Pot Core)
Supplier Device Package: P 26 x 16
Inductance Factor (Al): 5.3 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 0.4
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 93.9
Minimum Core Cross Section (Amin) mm²: 77.4
Effective Magnetic Volume (Ve) mm³: 3530
Produkt ist nicht verfügbar
UR39/35/15-3C90 UR39_35_15.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 1.524" (38.70mm)
Width: 0.587" (14.90mm)
Height: 1.386" (35.20mm)
Core Type: UR
Supplier Device Package: UR 39 x 35 x 15
Finish: Uncoated
Part Status: Active
Produkt ist nicht verfügbar
UR42/21/12-3C90 UR42_21_12.pdf
Hersteller: Ferroxcube
Description: U AND UR CORES
Produkt ist nicht verfügbar
UR48/39/17-3C90 UR48_39_17.pdf
Hersteller: Ferroxcube
Description: UR CORES
Produkt ist nicht verfügbar
UR55/38/36-3C90 UR55_38_36.pdf
UR55/38/36-3C90
Hersteller: Ferroxcube
Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.161" (54.90mm)
Width: 0.925" (23.50mm)
Height: 1.476" (37.50mm)
Core Type: UR
Supplier Device Package: UR 55 x 38 x 36
Finish: Uncoated
Part Status: Active
auf Bestellung 135 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+21.38 EUR
10+ 18.22 EUR
48+ 13.46 EUR
96+ 11.88 EUR
UR57/28/16-3C90 UR57_28_16.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.270" (57.65mm)
Width: 0.610" (15.50mm)
Height: 1.118" (28.40mm)
Core Type: UR
Supplier Device Package: UR 57 x 28 x 16
Finish: Uncoated
Part Status: Active
Produkt ist nicht verfügbar
UR64/29/14-3C90 UR64_29_14.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.520" (64.00mm)
Width: 0.543" (13.80mm)
Height: 1.161" (29.50mm)
Core Type: UR
Supplier Device Package: UR 64 x 29 x 14
Finish: Uncoated
Produkt ist nicht verfügbar
UR64/40/20-3C90 UR64_40_20.pdf
UR64/40/20-3C90
Hersteller: Ferroxcube
Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.520" (64.00mm)
Width: 0.945" (24.00mm)
Height: 1.594" (40.50mm)
Core Type: UR
Supplier Device Package: UR 64 x 40 x 20
Finish: Uncoated
Part Status: Active
auf Bestellung 1192 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+15.91 EUR
10+ 13.54 EUR
25+ 10.3 EUR
72+ 10.01 EUR
144+ 8.83 EUR
288+ 8.24 EUR
504+ 7.65 EUR
1008+ 7.36 EUR
Mindestbestellmenge: 2
UR70/33/17-3C90 UR70_33_17.pdf
UR70/33/17-3C90
Hersteller: Ferroxcube
Description: FERRITE CORE UR 3C90
Packaging: Bulk
Material: 3C90
Length: 2.692" (68.37mm)
Width: 0.679' (17.25mm)
Height: 1.313" (33.35mm)
Core Type: UR
Supplier Device Package: UR 70 x 33 x 17
Finish: Uncoated
Part Status: Active
auf Bestellung 479 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+13.73 EUR
10+ 11.7 EUR
25+ 8.9 EUR
50+ 8.65 EUR
128+ 7.63 EUR
256+ 7.12 EUR
Mindestbestellmenge: 2
EFD10/5/3-3C90-A25-S
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±5%
Packaging: Bulk
Material: 3C90
Length: 0.059" (1.50mm)
Width: 0.106" (2.70mm)
Height: 0.216" (5.50mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Finish: Uncoated
Gap: Gapped
Effective Permeability (µe): 66
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD10/5/3-3C90-A40-S
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±8%
Packaging: Bulk
Material: 3C90
Length: 0.059" (1.50mm)
Width: 0.106" (2.70mm)
Height: 0.216" (5.50mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 105
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD10/5/3-3C90-S
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C90
Length: 0.059" (1.50mm)
Width: 0.106" (2.70mm)
Height: 0.216" (5.50mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1510
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD10/5/3-3C96-A63-S EFD10_5_3.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 63NH 3C96 2PC
Tolerance: ±8%
Packaging: Bulk
Material: 3C96
Length: 0.413" (10.50mm)
Width: 0.106" (2.70mm)
Height: 0.205" (5.20mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 165
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD10/5/3-3C96-S EFD10_5_3.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 0.059" (1.50mm)
Width: 0.106" (2.70mm)
Height: 0.216" (5.50mm)
Core Type: EFD
Supplier Device Package: EFD 10 x 5 x 3
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1380
Core Factor (ΣI/A) mm⁻¹: 3.29
Effective Length (le) mm: 23.7
Effective Area (Ae) mm²: 7.2
Minimum Core Cross Section (Amin) mm²: 6.5
Effective Magnetic Volume (Ve) mm³: 171
Produkt ist nicht verfügbar
EFD12/6/3.5-3C96-A100-S EFD12_6_3.5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 100NH 3C96 2PC
Tolerance: ±10%
Packaging: Bulk
Material: 3C96
Length: 0.492" (12.50mm)
Width: 0.138" (3.50mm)
Height: 0.244" (6.20mm)
Core Type: EFD
Supplier Device Package: EFD 12 x 6 x 3.5
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 200
Core Factor (ΣI/A) mm⁻¹: 2.5
Effective Length (le) mm: 28.5
Effective Area (Ae) mm²: 11.4
Minimum Core Cross Section (Amin) mm²: 10.7
Effective Magnetic Volume (Ve) mm³: 325
Produkt ist nicht verfügbar
EFD15/8/5-3C90-A160-S
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±10%
Packaging: Bulk
Material: 3C90
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 290
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C90-S
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3C90 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C90
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C95-A100-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 100NH 3C95 2PC
Tolerance: ±6%
Packaging: Bulk
Material: 3C95
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 180
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C95-A63-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 63NH 3C95 2PC
Tolerance: ±4%
Packaging: Bulk
Material: 3C95
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 114
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C95-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3C95 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C95
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 2070
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C96-A100-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 100NH 3C96 2PC
Tolerance: ±6%
Packaging: Bulk
Material: 3C96
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 180
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C96-A63-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 63NH 3C96 2PC
Tolerance: ±4%
Packaging: Bulk
Material: 3C96
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 114
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3C96-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1520
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3F36-A100-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 3F36 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F36
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Finish: Uncoated
Gap: Gapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3F36-A63-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 63NH 3F36 2PC
Tolerance: ±4%
Packaging: Bulk
Material: 3F36
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 114
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3F46-A100-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 100NH 3F46 2PC
Tolerance: ±6%
Packaging: Bulk
Material: 3F46
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 180
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EFD15/8/5-3F46-A63-S EFD15_8_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EFD 63NH 3F46 2PC
Tolerance: ±4%
Packaging: Bulk
Material: 3F46
Length: 0.591" (15.00mm)
Width: 0.183" (4.65mm)
Height: 0.295" (7.50mm)
Core Type: EFD
Supplier Device Package: EFD 15 x 8 x 5
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 114
Core Factor (ΣI/A) mm⁻¹: 2.27
Effective Length (le) mm: 34
Effective Area (Ae) mm²: 15
Minimum Core Cross Section (Amin) mm²: 12.2
Effective Magnetic Volume (Ve) mm³: 510
Produkt ist nicht verfügbar
EP10-3C91 EP10.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EP 3C91 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C91
Length: 0.453" (11.50mm)
Width: 0.300" (7.60mm)
Height: 0.402" (10.20mm)
Core Type: EP
Supplier Device Package: EP 10
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.7
Effective Length (le) mm: 19.3
Effective Area (Ae) mm²: 11.3
Minimum Core Cross Section (Amin) mm²: 8.55
Effective Magnetic Volume (Ve) mm³: 215
Produkt ist nicht verfügbar
EP10-3F36 EP10.pdf
Hersteller: Ferroxcube
Description: EP AND EPX CORES 2PC SET
Produkt ist nicht verfügbar
EP13-3C90
Hersteller: Ferroxcube
Description: FERRITE CORE EP 1.65UH 3C90 2PC
Packaging: Bulk
Tolerance: ±25%
Material: 3C90
Length: 0.512" (13.00mm)
Width: 0.504" (12.80mm)
Height: 0.354" (9.00mm)
Core Type: EP
Supplier Device Package: EP 13
Inductance Factor (Al): 1.65 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1600
Core Factor (ΣI/A) mm⁻¹: 1.24
Effective Length (le) mm: 24.2
Effective Area (Ae) mm²: 19.5
Minimum Core Cross Section (Amin) mm²: 14.9
Effective Magnetic Volume (Ve) mm³: 472
Produkt ist nicht verfügbar
EP13-3C91 EP13.pdf
Hersteller: Ferroxcube
Description: EP AND EPX CORES 2PC SET
Produkt ist nicht verfügbar
EP20-3C90 EP20-3C90.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE EP 4.435UH 3C90 2PC
Packaging: Bulk
Tolerance: ±25%
Material: 3C90
Length: 0.945" (24.00mm)
Width: 0.591" (15.00mm)
Height: 0.843" (21.40mm)
Core Type: EP
Supplier Device Package: EP 20
Inductance Factor (Al): 4.435 µH
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1840
Core Factor (ΣI/A) mm⁻¹: 0.52
Effective Length (le) mm: 41.1
Effective Area (Ae) mm²: 78.7
Minimum Core Cross Section (Amin) mm²: 60.8
Effective Magnetic Volume (Ve) mm³: 3230
auf Bestellung 619 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
4+4.63 EUR
10+ 3.97 EUR
25+ 2.98 EUR
50+ 2.89 EUR
100+ 2.56 EUR
320+ 2.4 EUR
Mindestbestellmenge: 4
EP20-3F36 EP20.pdf
Hersteller: Ferroxcube
Description: EP AND EPX CORES 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F36
Length: 0.945" (24.00mm)
Width: 0.591" (15.00mm)
Height: 0.843" (21.40mm)
Core Type: EP
Supplier Device Package: EP 20
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1120
Core Factor (ΣI/A) mm⁻¹: 0.52
Effective Length (le) mm: 41.1
Effective Area (Ae) mm²: 78.7
Minimum Core Cross Section (Amin) mm²: 60.8
Effective Magnetic Volume (Ve) mm³: 3230
Produkt ist nicht verfügbar
EP7-3C90
Hersteller: Ferroxcube
Description: FERRITE CORE EP 3C90 2PC SET
Packaging: Bulk
Material: 3C90
Length: 0.370" (9.40mm)
Width: 0.256" (6.50mm)
Height: 0.295" (7.50mm)
Core Type: EP
Supplier Device Package: EP 7
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.45
Effective Length (le) mm: 15.5
Effective Area (Ae) mm²: 10.7
Minimum Core Cross Section (Amin) mm²: 8.55
Effective Magnetic Volume (Ve) mm³: 165
Produkt ist nicht verfügbar
ER11/2.5/6-3C96-S ER11_2.5_6.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C92-A100-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C92-A160-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C92-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C95-A160-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C95-A63-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C95-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE ER 3C95 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C95
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C96-A100-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE ER 100NH 3C96 2PC
Packaging: Bulk
Tolerance: ±3%
Material: 3C96
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Inductance Factor (Al): 100 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 86
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C96-A160-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE ER 160NH 3C96 2PC
Packaging: Bulk
Tolerance: ±4%
Material: 3C96
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Inductance Factor (Al): 160 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 140
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C96-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE ER 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C97-A160-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3C97-A63-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE ER 63NH 3C97 2PC
Packaging: Bulk
Tolerance: ±3%
Material: 3C97
Length: 0.571" (14.50mm)
Width: 0.116" (2.95mm)
Height: 0.268" (6.80mm)
Core Type: ER
Supplier Device Package: ER 14.5 x 3 x 7
Inductance Factor (Al): 63 nH
Finish: Uncoated
Gap: Gapped
Part Status: Active
Effective Permeability (µe): 54
Core Factor (ΣI/A) mm⁻¹: 1.08
Effective Length (le) mm: 19
Effective Area (Ae) mm²: 17.6
Minimum Core Cross Section (Amin) mm²: 17.3
Effective Magnetic Volume (Ve) mm³: 333
Produkt ist nicht verfügbar
ER14.5/3/7-3C97-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F36-A100-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F36-A160-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F36-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F46-A100-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F46-A160-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER14.5/3/7-3F46-S ER14.5_3_7.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER18/3.2/10-3C95-S ER18_3.2_10.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE ER 3C95 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C95
Length: 0.709" (18.00mm)
Width: 0.124" (3.15mm)
Height: 0.382" (9.70mm)
Core Type: ER
Supplier Device Package: ER 18 x 3.2 x 10
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.73
Effective Length (le) mm: 22.1
Effective Area (Ae) mm²: 30.2
Minimum Core Cross Section (Amin) mm²: 30.1
Effective Magnetic Volume (Ve) mm³: 667
Produkt ist nicht verfügbar
ER9.5/2.5/5-3C92-S ER9.5_2.5_5.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE ER 3C92 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C92
Length: 0.374" (9.50mm)
Width: 0.197" (5.00mm)
Height: 0.096" (2.45mm)
Core Type: ER
Supplier Device Package: ER 9.5 x 2.5 x 5
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1000
Core Factor (ΣI/A) mm⁻¹: 1.67
Effective Length (le) mm: 14.2
Effective Area (Ae) mm²: 8.47
Minimum Core Cross Section (Amin) mm²: 7.6
Effective Magnetic Volume (Ve) mm³: 120
Produkt ist nicht verfügbar
ER9.5/2.5/5-3C95-S ER9.5_2.5_5.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER9.5/2.5/5-3C96-S ER9.5_2.5_5.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Produkt ist nicht verfügbar
ER9.5/2.5/5-3F46-S ER9.5_2.5_5.pdf
Hersteller: Ferroxcube
Description: PLANAR ER CORES 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 0.374" (9.50mm)
Width: 0.197" (5.00mm)
Height: 0.096" (2.45mm)
Core Type: ER
Supplier Device Package: ER 9.5 x 2.5 x 5
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 587
Core Factor (ΣI/A) mm⁻¹: 1.67
Effective Length (le) mm: 14.2
Effective Area (Ae) mm²: 8.47
Minimum Core Cross Section (Amin) mm²: 7.6
Effective Magnetic Volume (Ve) mm³: 120
Produkt ist nicht verfügbar
P11/7-3C90
Hersteller: Ferroxcube
Description: FERRITE CORE P 1.7UH 3C90 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3C90
Diameter: 0.437" (11.10mm)
Height: 0.256" (6.50mm)
Core Type: P
Supplier Device Package: P 11 x 7
Inductance Factor (Al): 1.7 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1300
Core Factor (ΣI/A) mm⁻¹: 0.956
Effective Length (le) mm: 15.5
Effective Area (Ae) mm²: 16.2
Minimum Core Cross Section (Amin) mm²: 13.2
Effective Magnetic Volume (Ve) mm³: 251
Produkt ist nicht verfügbar
P22/13-3C95
Hersteller: Ferroxcube
Description: FERRITE CORE P 5.2UH 3C95 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3C95
Diameter: 0.866" (22.00mm)
Height: 0.528" (13.40mm)
Core Type: P
Supplier Device Package: P 22 x 13
Inductance Factor (Al): 5.2 µH
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 2060
Core Factor (ΣI/A) mm⁻¹: 0.497
Effective Length (le) mm: 31.5
Effective Area (Ae) mm²: 63.4
Minimum Core Cross Section (Amin) mm²: 50.9
Effective Magnetic Volume (Ve) mm³: 2000
Produkt ist nicht verfügbar
P26/16-3C90
Hersteller: Ferroxcube
Description: FERRITE CORE P 5.3UH 3C90 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3C90
Diameter: 1.004" (25.50mm)
Height: 0.634" (16.10mm)
Core Type: P (Pot Core)
Supplier Device Package: P 26 x 16
Inductance Factor (Al): 5.3 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 0.4
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 93.9
Minimum Core Cross Section (Amin) mm²: 77.4
Effective Magnetic Volume (Ve) mm³: 3530
Produkt ist nicht verfügbar
Wählen Sie Seite:   [  << Vorherige Seite ]  1 10 12 13 14 15 16 17 18 19 20 21 22 30 40 50 60 70 80 90 100  [ Nächste Seite >> ]
