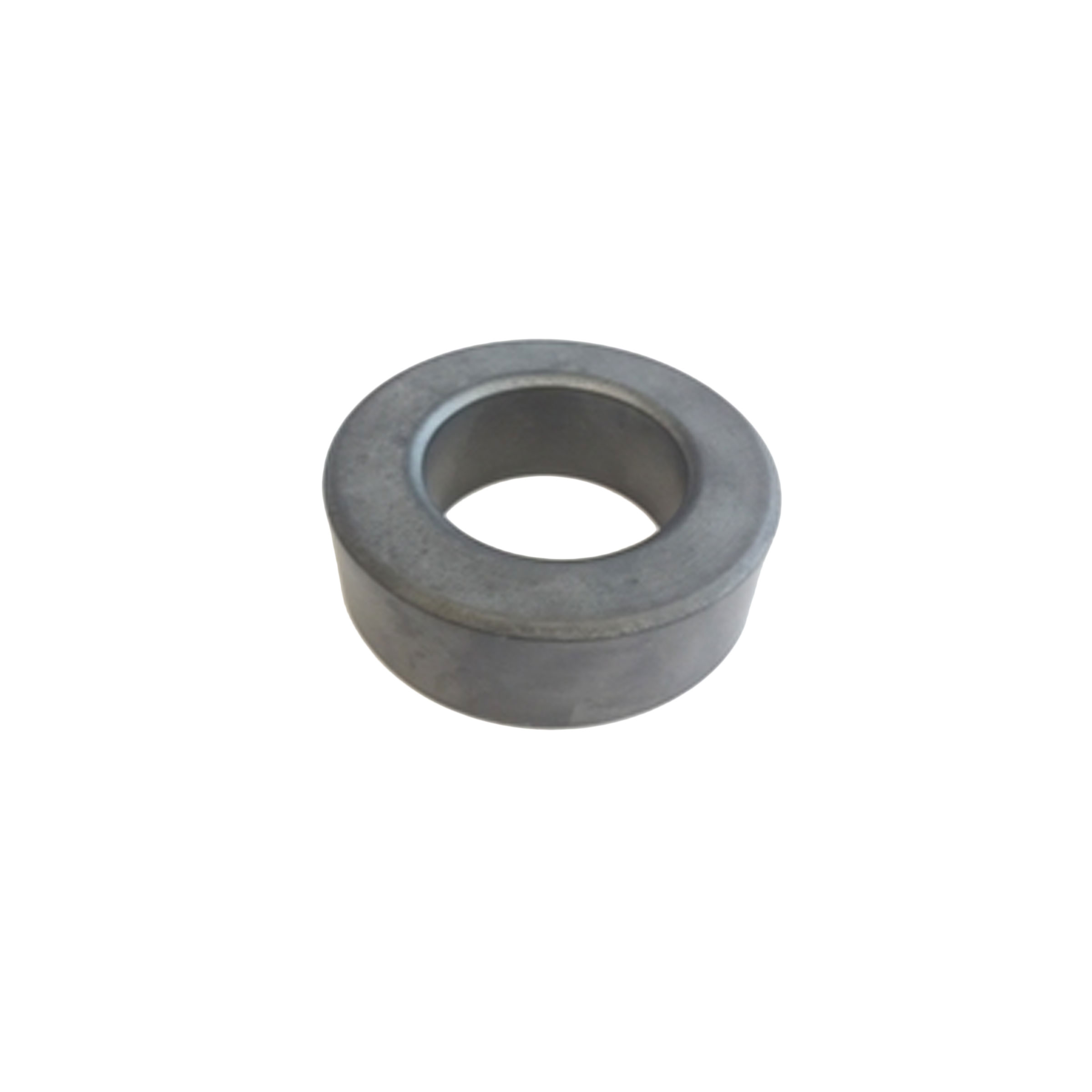

P26/16-3C95 Ferroxcube 3c95.pdf Description: FERRITE CORE P 6.7UH 3C95 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3C95
Diameter: 1.004" (25.50mm)
Height: 0.634" (16.10mm)
Core Type: P (Pot Core)
Supplier Device Package: P 26 x 16
Inductance Factor (Al): 6.7 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 2100
Core Factor (ΣI/A) mm⁻¹: 0.4
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 93.9
Minimum Core Cross Section (Amin) mm²: 77.4
Effective Magnetic Volume (Ve) mm³: 3530
Produkt ist nicht verfügbar
P26/16-3F36 Ferroxcube Description: FERRITE CORE P 3.4UH 3F36 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3F36
Diameter: 1.004" (25.50mm)
Height: 0.634" (16.10mm)
Core Type: P (Pot Core)
Supplier Device Package: P 26 x 16
Inductance Factor (Al): 3.4 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1100
Core Factor (ΣI/A) mm⁻¹: 0.4
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 93.9
Minimum Core Cross Section (Amin) mm²: 77.4
Effective Magnetic Volume (Ve) mm³: 3530
Produkt ist nicht verfügbar
P26/16-3F46 Ferroxcube Description: FERRITE CORE P 2.15UH 3F46 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Diameter: 1.004" (25.50mm)
Height: 0.634" (16.10mm)
Core Type: P (Pot Core)
Supplier Device Package: P 26 x 16
Inductance Factor (Al): 2.15 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 690
Core Factor (ΣI/A) mm⁻¹: 0.4
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 93.9
Minimum Core Cross Section (Amin) mm²: 77.4
Effective Magnetic Volume (Ve) mm³: 3530
Produkt ist nicht verfügbar
P30/19-3C90 Ferroxcube Description: P CORES 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C90
Diameter: 1.181" (30.00mm)
Height: 0.740" (18.80mm)
Core Type: P
Supplier Device Package: P 30 x 19
Inductance Factor (Al): 6.5 µH
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 0.33
Effective Length (le) mm: 45.2
Effective Area (Ae) mm²: 137
Minimum Core Cross Section (Amin) mm²: 116
Effective Magnetic Volume (Ve) mm³: 6190
Produkt ist nicht verfügbar
P30/19-3C95 Ferroxcube P30_19.pdf Description: FERRITE CORE P 3C95 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C95
Diameter: 1.181" (30.00mm)
Height: 0.740" (18.80mm)
Core Type: P
Supplier Device Package: P 30 x 19
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.33
Effective Length (le) mm: 45.2
Effective Area (Ae) mm²: 137
Minimum Core Cross Section (Amin) mm²: 116
Effective Magnetic Volume (Ve) mm³: 6190
Produkt ist nicht verfügbar
P30/19-3F36 Ferroxcube P30_19.pdf Description: P CORES 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F36
Diameter: 1.181" (30.00mm)
Height: 0.740" (18.80mm)
Core Type: P
Supplier Device Package: P 30 x 19
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.33
Effective Length (le) mm: 45.2
Effective Area (Ae) mm²: 137
Minimum Core Cross Section (Amin) mm²: 116
Effective Magnetic Volume (Ve) mm³: 6190
Produkt ist nicht verfügbar
P36/22-3C90 Ferroxcube Description: FERRITE CORE P 8.2UH 3C90 2PC
Packaging: Bulk
Tolerance: ±25%
Material: 3C90
Diameter: 1.425" (36.20mm)
Height: 0.854" (21.70mm)
Core Type: P
Supplier Device Package: P 36 x 22
Inductance Factor (Al): 8.2 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 0.264
Effective Length (le) mm: 53.2
Effective Area (Ae) mm²: 202
Minimum Core Cross Section (Amin) mm²: 172
Effective Magnetic Volume (Ve) mm³: 10700
Produkt ist nicht verfügbar
P36/22-3C95 Ferroxcube P36_22.pdf Description: P CORES 2PC SET
Produkt ist nicht verfügbar
P36/22-3F36 Ferroxcube P36_22.pdf Description: P CORES 2PC SET
Produkt ist nicht verfügbar
PQ20/16-3C94 Ferroxcube PQ20_16.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.638" (16.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 16
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.607
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 61.9
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2330
Produkt ist nicht verfügbar
PQ20/16-3C96 Ferroxcube PQ20_16.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.638" (16.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 16
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.607
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 61.9
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2330
Produkt ist nicht verfügbar
PQ20/16-3F46 Ferroxcube PQ20_16.pdf Description: FERRITE CORE PQ 3F46 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F46
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.638" (16.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 16
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.607
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 61.9
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2330
Produkt ist nicht verfügbar
PQ20/20-3C94 Ferroxcube PQ20_20.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 20
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.731
Effective Length (le) mm: 45.7
Effective Area (Ae) mm²: 62.6
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2850
Produkt ist nicht verfügbar
PQ20/20-3C96 Ferroxcube PQ20_20.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 20
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.731
Effective Length (le) mm: 45.7
Effective Area (Ae) mm²: 62.6
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2850
auf Bestellung 807 Stücke:
Lieferzeit 10-14 Tag (e)
6+3.2 EUR
10+ 2.76 EUR
25+ 2.1 EUR
50+ 1.99 EUR
200+ 1.77 EUR
400+ 1.66 EUR
600+ 1.55 EUR
Mindestbestellmenge: 6
PQ20/20-3F46 Ferroxcube PQ20_20.pdf Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 20
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.731
Effective Length (le) mm: 45.7
Effective Area (Ae) mm²: 62.6
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2850
Produkt ist nicht verfügbar
PQ26/20-3C94 Ferroxcube PQ26_20.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 20
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1640
Core Factor (ΣI/A) mm⁻¹: 0.372
Effective Length (le) mm: 45
Effective Area (Ae) mm²: 121
Minimum Core Cross Section (Amin) mm²: 109
Effective Magnetic Volume (Ve) mm³: 5470
Produkt ist nicht verfügbar
PQ26/20-3C96 Ferroxcube PQ26_20.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 20
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1640
Core Factor (ΣI/A) mm⁻¹: 0.372
Effective Length (le) mm: 45
Effective Area (Ae) mm²: 121
Minimum Core Cross Section (Amin) mm²: 109
Effective Magnetic Volume (Ve) mm³: 5470
auf Bestellung 568 Stücke:
Lieferzeit 10-14 Tag (e)
4+4.8 EUR
10+ 4.15 EUR
25+ 3.15 EUR
50+ 2.99 EUR
160+ 2.66 EUR
320+ 2.49 EUR
Mindestbestellmenge: 4
PQ26/20-3F46 Ferroxcube PQ26_20.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ26/25-3C94 Ferroxcube PQ26_25.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.972" (24.70mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 25
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1890
Core Factor (ΣI/A) mm⁻¹: 0.451
Effective Length (le) mm: 54.3
Effective Area (Ae) mm²: 120
Minimum Core Cross Section (Amin) mm²: 108
Effective Magnetic Volume (Ve) mm³: 6530
Produkt ist nicht verfügbar
PQ26/25-3C96 Ferroxcube PQ26_25.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.972" (24.70mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 25
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1690
Core Factor (ΣI/A) mm⁻¹: 0.451
Effective Length (le) mm: 54.3
Effective Area (Ae) mm²: 120
Minimum Core Cross Section (Amin) mm²: 108
Effective Magnetic Volume (Ve) mm³: 6530
auf Bestellung 715 Stücke:
Lieferzeit 10-14 Tag (e)
4+5.24 EUR
10+ 4.5 EUR
25+ 3.38 EUR
50+ 3.28 EUR
160+ 2.91 EUR
320+ 2.72 EUR
640+ 2.53 EUR
Mindestbestellmenge: 4
PQ26/25-3F46 Ferroxcube PQ26_25.pdf Description: FERRITE CORE PQ 3F46 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F46
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.972" (24.70mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 25
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.451
Effective Length (le) mm: 54.3
Effective Area (Ae) mm²: 120
Minimum Core Cross Section (Amin) mm²: 108
Effective Magnetic Volume (Ve) mm³: 6530
Produkt ist nicht verfügbar
PQ32/15-3C94 Ferroxcube PQ32_15.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/15-3C96 Ferroxcube PQ32_15.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 0.591" (15.00mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 15
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.261
Effective Length (le) mm: 44.7
Effective Area (Ae) mm²: 171
Minimum Core Cross Section (Amin) mm²: 143
Effective Magnetic Volume (Ve) mm³: 7640
Produkt ist nicht verfügbar
PQ32/15-3F46 Ferroxcube PQ32_15.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/20-3C94 Ferroxcube PQ32_20.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/20-3C96 Ferroxcube PQ32_20.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/20-3F46 Ferroxcube PQ32_20.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/25-3C94 Ferroxcube PQ32_25.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 0.984" (25.00mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 25
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 64.2
Effective Area (Ae) mm²: 168
Minimum Core Cross Section (Amin) mm²: 143
Effective Magnetic Volume (Ve) mm³: 10800
Produkt ist nicht verfügbar
PQ32/25-3C96 Ferroxcube PQ32_25.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 0.984" (25.00mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 25
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 64.2
Effective Area (Ae) mm²: 168
Minimum Core Cross Section (Amin) mm²: 143
Effective Magnetic Volume (Ve) mm³: 10800
Produkt ist nicht verfügbar
PQ32/25-3F46 Ferroxcube PQ32_25.pdf Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 0.984" (25.00mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 25
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 64.2
Effective Area (Ae) mm²: 168
Minimum Core Cross Section (Amin) mm²: 143
Effective Magnetic Volume (Ve) mm³: 10800
Produkt ist nicht verfügbar
PQ32/30-3C94 Ferroxcube PQ32_30.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 1.193" (30.30mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1990
Core Factor (ΣI/A) mm⁻¹: 0.447
Effective Length (le) mm: 74.7
Effective Area (Ae) mm²: 167
Minimum Core Cross Section (Amin) mm²: 142
Effective Magnetic Volume (Ve) mm³: 12500
Produkt ist nicht verfügbar
PQ32/30-3C96 PQ32/30-3C96 Ferroxcube PQ32_30.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 1.193" (30.30mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1790
Core Factor (ΣI/A) mm⁻¹: 0.447
Effective Length (le) mm: 74.7
Effective Area (Ae) mm²: 167
Minimum Core Cross Section (Amin) mm²: 142
Effective Magnetic Volume (Ve) mm³: 12500
auf Bestellung 946 Stücke:
Lieferzeit 10-14 Tag (e)
3+7.53 EUR
10+ 6.41 EUR
25+ 4.88 EUR
50+ 4.74 EUR
140+ 4.18 EUR
280+ 3.9 EUR
560+ 3.62 EUR
Mindestbestellmenge: 3
PQ32/30-3F46 Ferroxcube PQ32_30.pdf Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 1.193" (30.30mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.447
Effective Length (le) mm: 74.7
Effective Area (Ae) mm²: 167
Minimum Core Cross Section (Amin) mm²: 142
Effective Magnetic Volume (Ve) mm³: 12500
Produkt ist nicht verfügbar
PQ32/35-3C94 Ferroxcube PQ32_35.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/35-3C96 Ferroxcube PQ32_35.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/35-3F46 Ferroxcube PQ32_35.pdf Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ35/20-3C94 Ferroxcube PQ35_20.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 0.787" (20.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 20
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1790
Core Factor (ΣI/A) mm⁻¹: 0.291
Effective Length (le) mm: 57.5
Effective Area (Ae) mm²: 197
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 11300
Produkt ist nicht verfügbar
PQ35/20-3C96 Ferroxcube PQ35_20.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 0.787" (20.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 20
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1600
Core Factor (ΣI/A) mm⁻¹: 0.291
Effective Length (le) mm: 57.5
Effective Area (Ae) mm²: 197
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 11300
Produkt ist nicht verfügbar
PQ35/20-3F46 Ferroxcube PQ35_20.pdf Description: FERRITE CORE PQ 3F46 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F46
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 0.787" (20.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 20
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 684
Core Factor (ΣI/A) mm⁻¹: 0.291
Effective Length (le) mm: 57.5
Effective Area (Ae) mm²: 197
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 11300
Produkt ist nicht verfügbar
PQ35/30-3C94 Ferroxcube PQ35_30.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 30
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1850
Core Factor (ΣI/A) mm⁻¹: 0.401
Effective Length (le) mm: 77
Effective Area (Ae) mm²: 192
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 14800
Produkt ist nicht verfügbar
PQ35/30-3C96 Ferroxcube PQ35_30.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1660
Core Factor (ΣI/A) mm⁻¹: 0.401
Effective Length (le) mm: 77
Effective Area (Ae) mm²: 192
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 14800
Produkt ist nicht verfügbar
PQ35/30-3F46 Ferroxcube PQ35_30.pdf Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 30
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 702
Core Factor (ΣI/A) mm⁻¹: 0.401
Effective Length (le) mm: 77
Effective Area (Ae) mm²: 192
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 14800
Produkt ist nicht verfügbar
PQ35/35-3C94 Ferroxcube PQ35_35.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.421" (36.10mm)
Width: 1.024" (26.00mm)
Height: 1.366" (34.70mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 35
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.454
Effective Length (le) mm: 86.1
Effective Area (Ae) mm²: 190
Minimum Core Cross Section (Amin) mm²: 162
Effective Magnetic Volume (Ve) mm³: 16300
Produkt ist nicht verfügbar
PQ35/35-3C96 Ferroxcube PQ35_35.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.421" (36.10mm)
Width: 1.024" (26.00mm)
Height: 1.366" (34.70mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 35
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 0.454
Effective Length (le) mm: 86.1
Effective Area (Ae) mm²: 190
Minimum Core Cross Section (Amin) mm²: 162
Effective Magnetic Volume (Ve) mm³: 16300
auf Bestellung 148 Stücke:
Lieferzeit 10-14 Tag (e)
2+8.8 EUR
50+ 5.54 EUR
100+ 4.89 EUR
Mindestbestellmenge: 2
PQ35/35-3F46 Ferroxcube PQ35_35.pdf Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 1.421" (36.10mm)
Width: 1.024" (26.00mm)
Height: 1.366" (34.70mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 35
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.454
Effective Length (le) mm: 86.1
Effective Area (Ae) mm²: 190
Minimum Core Cross Section (Amin) mm²: 162
Effective Magnetic Volume (Ve) mm³: 16300
auf Bestellung 202 Stücke:
Lieferzeit 10-14 Tag (e)
2+11.35 EUR
50+ 7.15 EUR
100+ 6.31 EUR
Mindestbestellmenge: 2
PQ40/30-3C94 Ferroxcube PQ40_30.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1890
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 81
Effective Area (Ae) mm²: 212
Minimum Core Cross Section (Amin) mm²: 174
Effective Magnetic Volume (Ve) mm³: 17100
Produkt ist nicht verfügbar
PQ40/30-3C96 Ferroxcube PQ40_30.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1690
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 81
Effective Area (Ae) mm²: 212
Minimum Core Cross Section (Amin) mm²: 174
Effective Magnetic Volume (Ve) mm³: 17100
Produkt ist nicht verfügbar
PQ40/30-3F4 Ferroxcube PQ40_30.pdf Description: FERRITE CORE PQ 3F4 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F4
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 830
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 81
Effective Area (Ae) mm²: 212
Minimum Core Cross Section (Amin) mm²: 174
Effective Magnetic Volume (Ve) mm³: 17100
Produkt ist nicht verfügbar
PQ40/40-3C94 Ferroxcube PQ40_40.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.567" (39.80mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 40
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1980
Core Factor (ΣI/A) mm⁻¹: 0.507
Effective Length (le) mm: 102
Effective Area (Ae) mm²: 201
Minimum Core Cross Section (Amin) mm²: 175
Effective Magnetic Volume (Ve) mm³: 20500
Produkt ist nicht verfügbar
PQ40/40-3C96 Ferroxcube PQ40_40.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.567" (39.80mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 40
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1690
Core Factor (ΣI/A) mm⁻¹: 0.507
Effective Length (le) mm: 102
Effective Area (Ae) mm²: 201
Minimum Core Cross Section (Amin) mm²: 175
Effective Magnetic Volume (Ve) mm³: 20500
auf Bestellung 326 Stücke:
Lieferzeit 10-14 Tag (e)
2+11.81 EUR
10+ 10.05 EUR
25+ 7.64 EUR
50+ 7.43 EUR
100+ 6.55 EUR
250+ 6.12 EUR
Mindestbestellmenge: 2
PQ40/40-3F4 Ferroxcube PQ40_40.pdf Description: FERRITE CORE PQ 3F4 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F4
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.567" (39.80mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 40
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.507
Effective Length (le) mm: 102
Effective Area (Ae) mm²: 201
Minimum Core Cross Section (Amin) mm²: 175
Effective Magnetic Volume (Ve) mm³: 20500
Produkt ist nicht verfügbar
PQ50/50-3C94 Ferroxcube PQ50_50.pdf Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 2.008" (51.00mm)
Width: 1.260" (32.00mm)
Height: 1.969" (50.00mm)
Core Type: PQ
Supplier Device Package: PQ 50 x 50
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 2030
Core Factor (ΣI/A) mm⁻¹: 0.345
Effective Length (le) mm: 113
Effective Area (Ae) mm²: 328
Minimum Core Cross Section (Amin) mm²: 314
Effective Magnetic Volume (Ve) mm³: 37100
Produkt ist nicht verfügbar
PQ50/50-3C96 Ferroxcube PQ50_50.pdf Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 2.008" (51.00mm)
Width: 1.260" (32.00mm)
Height: 1.969" (50.00mm)
Core Type: PQ
Supplier Device Package: PQ 50 x 50
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1730
Core Factor (ΣI/A) mm⁻¹: 0.345
Effective Length (le) mm: 113
Effective Area (Ae) mm²: 328
Minimum Core Cross Section (Amin) mm²: 314
Effective Magnetic Volume (Ve) mm³: 37100
auf Bestellung 147 Stücke:
Lieferzeit 10-14 Tag (e)
1+20.64 EUR
40+ 13.62 EUR
120+ 11.97 EUR
PQ50/50-3F4 Ferroxcube PQ50_50.pdf Description: FERRITE CORE PQ 3F4 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F4
Length: 2.008" (51.00mm)
Width: 1.260" (32.00mm)
Height: 1.969" (50.00mm)
Core Type: PQ
Supplier Device Package: PQ 50 x 50
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 822
Core Factor (ΣI/A) mm⁻¹: 0.345
Effective Length (le) mm: 113
Effective Area (Ae) mm²: 328
Minimum Core Cross Section (Amin) mm²: 314
Effective Magnetic Volume (Ve) mm³: 37100
Produkt ist nicht verfügbar
RM10/I-3C90-A160 Ferroxcube Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
RM10/I-3C90-A315 Ferroxcube Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
RM10/I-3C90-A900 Ferroxcube Description: FERRITE CORE RM 900NH 3C90 2PC
Packaging: Bulk
Tolerance: ±4%
Material: 3C90
Length: 1.122" (28.50mm)
Width: 0.531" (13.50mm)
Height: 0.729" (18.60mm)
Core Type: RM
Supplier Device Package: RM 10 x 1
Inductance Factor (Al): 900 nH
Finish: Uncoated
Gap: Gapped
Effective Permeability (µe): 330
Core Factor (ΣI/A) mm⁻¹: 0.462
Effective Length (le) mm: 44.6
Effective Area (Ae) mm²: 96.6
Minimum Core Cross Section (Amin) mm²: 89.1
Effective Magnetic Volume (Ve) mm³: 4310
Produkt ist nicht verfügbar
RM10/I-3C90-E100 Ferroxcube Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
RM10/I-3C91 Ferroxcube RM10_I.pdf Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
RM10/I-3C91-A250 Ferroxcube RM10_I.pdf Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
P26/16-3C95 3c95.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE P 6.7UH 3C95 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3C95
Diameter: 1.004" (25.50mm)
Height: 0.634" (16.10mm)
Core Type: P (Pot Core)
Supplier Device Package: P 26 x 16
Inductance Factor (Al): 6.7 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 2100
Core Factor (ΣI/A) mm⁻¹: 0.4
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 93.9
Minimum Core Cross Section (Amin) mm²: 77.4
Effective Magnetic Volume (Ve) mm³: 3530
Produkt ist nicht verfügbar
P26/16-3F36
Hersteller: Ferroxcube
Description: FERRITE CORE P 3.4UH 3F36 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3F36
Diameter: 1.004" (25.50mm)
Height: 0.634" (16.10mm)
Core Type: P (Pot Core)
Supplier Device Package: P 26 x 16
Inductance Factor (Al): 3.4 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1100
Core Factor (ΣI/A) mm⁻¹: 0.4
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 93.9
Minimum Core Cross Section (Amin) mm²: 77.4
Effective Magnetic Volume (Ve) mm³: 3530
Produkt ist nicht verfügbar
P26/16-3F46
Hersteller: Ferroxcube
Description: FERRITE CORE P 2.15UH 3F46 2PC
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Diameter: 1.004" (25.50mm)
Height: 0.634" (16.10mm)
Core Type: P (Pot Core)
Supplier Device Package: P 26 x 16
Inductance Factor (Al): 2.15 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 690
Core Factor (ΣI/A) mm⁻¹: 0.4
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 93.9
Minimum Core Cross Section (Amin) mm²: 77.4
Effective Magnetic Volume (Ve) mm³: 3530
Produkt ist nicht verfügbar
P30/19-3C90
Hersteller: Ferroxcube
Description: P CORES 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C90
Diameter: 1.181" (30.00mm)
Height: 0.740" (18.80mm)
Core Type: P
Supplier Device Package: P 30 x 19
Inductance Factor (Al): 6.5 µH
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 0.33
Effective Length (le) mm: 45.2
Effective Area (Ae) mm²: 137
Minimum Core Cross Section (Amin) mm²: 116
Effective Magnetic Volume (Ve) mm³: 6190
Produkt ist nicht verfügbar
P30/19-3C95 P30_19.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE P 3C95 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C95
Diameter: 1.181" (30.00mm)
Height: 0.740" (18.80mm)
Core Type: P
Supplier Device Package: P 30 x 19
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.33
Effective Length (le) mm: 45.2
Effective Area (Ae) mm²: 137
Minimum Core Cross Section (Amin) mm²: 116
Effective Magnetic Volume (Ve) mm³: 6190
Produkt ist nicht verfügbar
P30/19-3F36 P30_19.pdf
Hersteller: Ferroxcube
Description: P CORES 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F36
Diameter: 1.181" (30.00mm)
Height: 0.740" (18.80mm)
Core Type: P
Supplier Device Package: P 30 x 19
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.33
Effective Length (le) mm: 45.2
Effective Area (Ae) mm²: 137
Minimum Core Cross Section (Amin) mm²: 116
Effective Magnetic Volume (Ve) mm³: 6190
Produkt ist nicht verfügbar
P36/22-3C90
Hersteller: Ferroxcube
Description: FERRITE CORE P 8.2UH 3C90 2PC
Packaging: Bulk
Tolerance: ±25%
Material: 3C90
Diameter: 1.425" (36.20mm)
Height: 0.854" (21.70mm)
Core Type: P
Supplier Device Package: P 36 x 22
Inductance Factor (Al): 8.2 µH
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 0.264
Effective Length (le) mm: 53.2
Effective Area (Ae) mm²: 202
Minimum Core Cross Section (Amin) mm²: 172
Effective Magnetic Volume (Ve) mm³: 10700
Produkt ist nicht verfügbar
P36/22-3C95 P36_22.pdf
Hersteller: Ferroxcube
Description: P CORES 2PC SET
Produkt ist nicht verfügbar
P36/22-3F36 P36_22.pdf
Hersteller: Ferroxcube
Description: P CORES 2PC SET
Produkt ist nicht verfügbar
PQ20/16-3C94 PQ20_16.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.638" (16.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 16
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.607
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 61.9
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2330
Produkt ist nicht verfügbar
PQ20/16-3C96 PQ20_16.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.638" (16.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 16
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.607
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 61.9
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2330
Produkt ist nicht verfügbar
PQ20/16-3F46 PQ20_16.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F46 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F46
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.638" (16.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 16
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.607
Effective Length (le) mm: 37.6
Effective Area (Ae) mm²: 61.9
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2330
Produkt ist nicht verfügbar
PQ20/20-3C94 PQ20_20.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 20
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.731
Effective Length (le) mm: 45.7
Effective Area (Ae) mm²: 62.6
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2850
Produkt ist nicht verfügbar
PQ20/20-3C96 PQ20_20.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 20
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.731
Effective Length (le) mm: 45.7
Effective Area (Ae) mm²: 62.6
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2850
auf Bestellung 807 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
6+3.2 EUR
10+ 2.76 EUR
25+ 2.1 EUR
50+ 1.99 EUR
200+ 1.77 EUR
400+ 1.66 EUR
600+ 1.55 EUR
Mindestbestellmenge: 6
PQ20/20-3F46 PQ20_20.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 0.839" (21.30mm)
Width: 0.551" (14.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 20 x 20
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.731
Effective Length (le) mm: 45.7
Effective Area (Ae) mm²: 62.6
Minimum Core Cross Section (Amin) mm²: 59.1
Effective Magnetic Volume (Ve) mm³: 2850
Produkt ist nicht verfügbar
PQ26/20-3C94 PQ26_20.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 20
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1640
Core Factor (ΣI/A) mm⁻¹: 0.372
Effective Length (le) mm: 45
Effective Area (Ae) mm²: 121
Minimum Core Cross Section (Amin) mm²: 109
Effective Magnetic Volume (Ve) mm³: 5470
Produkt ist nicht verfügbar
PQ26/20-3C96 PQ26_20.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.795" (20.20mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 20
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1640
Core Factor (ΣI/A) mm⁻¹: 0.372
Effective Length (le) mm: 45
Effective Area (Ae) mm²: 121
Minimum Core Cross Section (Amin) mm²: 109
Effective Magnetic Volume (Ve) mm³: 5470
auf Bestellung 568 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
4+4.8 EUR
10+ 4.15 EUR
25+ 3.15 EUR
50+ 2.99 EUR
160+ 2.66 EUR
320+ 2.49 EUR
Mindestbestellmenge: 4
PQ26/20-3F46 PQ26_20.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ26/25-3C94 PQ26_25.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.972" (24.70mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 25
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1890
Core Factor (ΣI/A) mm⁻¹: 0.451
Effective Length (le) mm: 54.3
Effective Area (Ae) mm²: 120
Minimum Core Cross Section (Amin) mm²: 108
Effective Magnetic Volume (Ve) mm³: 6530
Produkt ist nicht verfügbar
PQ26/25-3C96 PQ26_25.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.972" (24.70mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 25
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1690
Core Factor (ΣI/A) mm⁻¹: 0.451
Effective Length (le) mm: 54.3
Effective Area (Ae) mm²: 120
Minimum Core Cross Section (Amin) mm²: 108
Effective Magnetic Volume (Ve) mm³: 6530
auf Bestellung 715 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
4+5.24 EUR
10+ 4.5 EUR
25+ 3.38 EUR
50+ 3.28 EUR
160+ 2.91 EUR
320+ 2.72 EUR
640+ 2.53 EUR
Mindestbestellmenge: 4
PQ26/25-3F46 PQ26_25.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F46 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F46
Length: 1.075" (27.30mm)
Width: 0.748" (19.00mm)
Height: 0.972" (24.70mm)
Core Type: PQ
Supplier Device Package: PQ 26 x 25
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.451
Effective Length (le) mm: 54.3
Effective Area (Ae) mm²: 120
Minimum Core Cross Section (Amin) mm²: 108
Effective Magnetic Volume (Ve) mm³: 6530
Produkt ist nicht verfügbar
PQ32/15-3C94 PQ32_15.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/15-3C96 PQ32_15.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 0.591" (15.00mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 15
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.261
Effective Length (le) mm: 44.7
Effective Area (Ae) mm²: 171
Minimum Core Cross Section (Amin) mm²: 143
Effective Magnetic Volume (Ve) mm³: 7640
Produkt ist nicht verfügbar
PQ32/15-3F46 PQ32_15.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/20-3C94 PQ32_20.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/20-3C96 PQ32_20.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/20-3F46 PQ32_20.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/25-3C94 PQ32_25.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 0.984" (25.00mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 25
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 64.2
Effective Area (Ae) mm²: 168
Minimum Core Cross Section (Amin) mm²: 143
Effective Magnetic Volume (Ve) mm³: 10800
Produkt ist nicht verfügbar
PQ32/25-3C96 PQ32_25.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 0.984" (25.00mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 25
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 64.2
Effective Area (Ae) mm²: 168
Minimum Core Cross Section (Amin) mm²: 143
Effective Magnetic Volume (Ve) mm³: 10800
Produkt ist nicht verfügbar
PQ32/25-3F46 PQ32_25.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 0.984" (25.00mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 25
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 64.2
Effective Area (Ae) mm²: 168
Minimum Core Cross Section (Amin) mm²: 143
Effective Magnetic Volume (Ve) mm³: 10800
Produkt ist nicht verfügbar
PQ32/30-3C94 PQ32_30.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 1.193" (30.30mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1990
Core Factor (ΣI/A) mm⁻¹: 0.447
Effective Length (le) mm: 74.7
Effective Area (Ae) mm²: 167
Minimum Core Cross Section (Amin) mm²: 142
Effective Magnetic Volume (Ve) mm³: 12500
Produkt ist nicht verfügbar
PQ32/30-3C96 PQ32_30.pdf
PQ32/30-3C96
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 1.193" (30.30mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1790
Core Factor (ΣI/A) mm⁻¹: 0.447
Effective Length (le) mm: 74.7
Effective Area (Ae) mm²: 167
Minimum Core Cross Section (Amin) mm²: 142
Effective Magnetic Volume (Ve) mm³: 12500
auf Bestellung 946 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
3+7.53 EUR
10+ 6.41 EUR
25+ 4.88 EUR
50+ 4.74 EUR
140+ 4.18 EUR
280+ 3.9 EUR
560+ 3.62 EUR
Mindestbestellmenge: 3
PQ32/30-3F46 PQ32_30.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 1.299" (33.00mm)
Width: 0.866" (22.00mm)
Height: 1.193" (30.30mm)
Core Type: PQ
Supplier Device Package: PQ 32 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.447
Effective Length (le) mm: 74.7
Effective Area (Ae) mm²: 167
Minimum Core Cross Section (Amin) mm²: 142
Effective Magnetic Volume (Ve) mm³: 12500
Produkt ist nicht verfügbar
PQ32/35-3C94 PQ32_35.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/35-3C96 PQ32_35.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ32/35-3F46 PQ32_35.pdf
Hersteller: Ferroxcube
Description: PQ CORES 2PC SET
Produkt ist nicht verfügbar
PQ35/20-3C94 PQ35_20.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 0.787" (20.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 20
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1790
Core Factor (ΣI/A) mm⁻¹: 0.291
Effective Length (le) mm: 57.5
Effective Area (Ae) mm²: 197
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 11300
Produkt ist nicht verfügbar
PQ35/20-3C96 PQ35_20.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 0.787" (20.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 20
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1600
Core Factor (ΣI/A) mm⁻¹: 0.291
Effective Length (le) mm: 57.5
Effective Area (Ae) mm²: 197
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 11300
Produkt ist nicht verfügbar
PQ35/20-3F46 PQ35_20.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F46 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F46
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 0.787" (20.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 20
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 684
Core Factor (ΣI/A) mm⁻¹: 0.291
Effective Length (le) mm: 57.5
Effective Area (Ae) mm²: 197
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 11300
Produkt ist nicht verfügbar
PQ35/30-3C94 PQ35_30.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 30
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 1850
Core Factor (ΣI/A) mm⁻¹: 0.401
Effective Length (le) mm: 77
Effective Area (Ae) mm²: 192
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 14800
Produkt ist nicht verfügbar
PQ35/30-3C96 PQ35_30.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1660
Core Factor (ΣI/A) mm⁻¹: 0.401
Effective Length (le) mm: 77
Effective Area (Ae) mm²: 192
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 14800
Produkt ist nicht verfügbar
PQ35/30-3F46 PQ35_30.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 1.417" (36.00mm)
Width: 1.024" (26.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 30
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 702
Core Factor (ΣI/A) mm⁻¹: 0.401
Effective Length (le) mm: 77
Effective Area (Ae) mm²: 192
Minimum Core Cross Section (Amin) mm²: 163
Effective Magnetic Volume (Ve) mm³: 14800
Produkt ist nicht verfügbar
PQ35/35-3C94 PQ35_35.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.421" (36.10mm)
Width: 1.024" (26.00mm)
Height: 1.366" (34.70mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 35
Finish: Uncoated
Gap: Ungapped
Core Factor (ΣI/A) mm⁻¹: 0.454
Effective Length (le) mm: 86.1
Effective Area (Ae) mm²: 190
Minimum Core Cross Section (Amin) mm²: 162
Effective Magnetic Volume (Ve) mm³: 16300
Produkt ist nicht verfügbar
PQ35/35-3C96 PQ35_35.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.421" (36.10mm)
Width: 1.024" (26.00mm)
Height: 1.366" (34.70mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 35
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1700
Core Factor (ΣI/A) mm⁻¹: 0.454
Effective Length (le) mm: 86.1
Effective Area (Ae) mm²: 190
Minimum Core Cross Section (Amin) mm²: 162
Effective Magnetic Volume (Ve) mm³: 16300
auf Bestellung 148 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+8.8 EUR
50+ 5.54 EUR
100+ 4.89 EUR
Mindestbestellmenge: 2
PQ35/35-3F46 PQ35_35.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F46 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F46
Length: 1.421" (36.10mm)
Width: 1.024" (26.00mm)
Height: 1.366" (34.70mm)
Core Type: PQ
Supplier Device Package: PQ 35 x 35
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.454
Effective Length (le) mm: 86.1
Effective Area (Ae) mm²: 190
Minimum Core Cross Section (Amin) mm²: 162
Effective Magnetic Volume (Ve) mm³: 16300
auf Bestellung 202 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+11.35 EUR
50+ 7.15 EUR
100+ 6.31 EUR
Mindestbestellmenge: 2
PQ40/30-3C94 PQ40_30.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C94
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1890
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 81
Effective Area (Ae) mm²: 212
Minimum Core Cross Section (Amin) mm²: 174
Effective Magnetic Volume (Ve) mm³: 17100
Produkt ist nicht verfügbar
PQ40/30-3C96 PQ40_30.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3C96
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1690
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 81
Effective Area (Ae) mm²: 212
Minimum Core Cross Section (Amin) mm²: 174
Effective Magnetic Volume (Ve) mm³: 17100
Produkt ist nicht verfügbar
PQ40/30-3F4 PQ40_30.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F4 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F4
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.181" (30.00mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 30
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 830
Core Factor (ΣI/A) mm⁻¹: 0.383
Effective Length (le) mm: 81
Effective Area (Ae) mm²: 212
Minimum Core Cross Section (Amin) mm²: 174
Effective Magnetic Volume (Ve) mm³: 17100
Produkt ist nicht verfügbar
PQ40/40-3C94 PQ40_40.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.567" (39.80mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 40
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1980
Core Factor (ΣI/A) mm⁻¹: 0.507
Effective Length (le) mm: 102
Effective Area (Ae) mm²: 201
Minimum Core Cross Section (Amin) mm²: 175
Effective Magnetic Volume (Ve) mm³: 20500
Produkt ist nicht verfügbar
PQ40/40-3C96 PQ40_40.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.567" (39.80mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 40
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1690
Core Factor (ΣI/A) mm⁻¹: 0.507
Effective Length (le) mm: 102
Effective Area (Ae) mm²: 201
Minimum Core Cross Section (Amin) mm²: 175
Effective Magnetic Volume (Ve) mm³: 20500
auf Bestellung 326 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
2+11.81 EUR
10+ 10.05 EUR
25+ 7.64 EUR
50+ 7.43 EUR
100+ 6.55 EUR
250+ 6.12 EUR
Mindestbestellmenge: 2
PQ40/40-3F4 PQ40_40.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F4 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3F4
Length: 1.634" (41.50mm)
Width: 1.102" (28.00mm)
Height: 1.567" (39.80mm)
Core Type: PQ
Supplier Device Package: PQ 40 x 40
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Core Factor (ΣI/A) mm⁻¹: 0.507
Effective Length (le) mm: 102
Effective Area (Ae) mm²: 201
Minimum Core Cross Section (Amin) mm²: 175
Effective Magnetic Volume (Ve) mm³: 20500
Produkt ist nicht verfügbar
PQ50/50-3C94 PQ50_50.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C94 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C94
Length: 2.008" (51.00mm)
Width: 1.260" (32.00mm)
Height: 1.969" (50.00mm)
Core Type: PQ
Supplier Device Package: PQ 50 x 50
Finish: Uncoated
Gap: Ungapped
Effective Permeability (µe): 2030
Core Factor (ΣI/A) mm⁻¹: 0.345
Effective Length (le) mm: 113
Effective Area (Ae) mm²: 328
Minimum Core Cross Section (Amin) mm²: 314
Effective Magnetic Volume (Ve) mm³: 37100
Produkt ist nicht verfügbar
PQ50/50-3C96 PQ50_50.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3C96 2PC SET
Tolerance: ±25%
Packaging: Bulk
Material: 3C96
Length: 2.008" (51.00mm)
Width: 1.260" (32.00mm)
Height: 1.969" (50.00mm)
Core Type: PQ
Supplier Device Package: PQ 50 x 50
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 1730
Core Factor (ΣI/A) mm⁻¹: 0.345
Effective Length (le) mm: 113
Effective Area (Ae) mm²: 328
Minimum Core Cross Section (Amin) mm²: 314
Effective Magnetic Volume (Ve) mm³: 37100
auf Bestellung 147 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
1+20.64 EUR
40+ 13.62 EUR
120+ 11.97 EUR
PQ50/50-3F4 PQ50_50.pdf
Hersteller: Ferroxcube
Description: FERRITE CORE PQ 3F4 2PC SET
Packaging: Bulk
Tolerance: ±25%
Material: 3F4
Length: 2.008" (51.00mm)
Width: 1.260" (32.00mm)
Height: 1.969" (50.00mm)
Core Type: PQ
Supplier Device Package: PQ 50 x 50
Finish: Uncoated
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 822
Core Factor (ΣI/A) mm⁻¹: 0.345
Effective Length (le) mm: 113
Effective Area (Ae) mm²: 328
Minimum Core Cross Section (Amin) mm²: 314
Effective Magnetic Volume (Ve) mm³: 37100
Produkt ist nicht verfügbar
RM10/I-3C90-A160
Hersteller: Ferroxcube
Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
RM10/I-3C90-A315
Hersteller: Ferroxcube
Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
RM10/I-3C90-A900
Hersteller: Ferroxcube
Description: FERRITE CORE RM 900NH 3C90 2PC
Packaging: Bulk
Tolerance: ±4%
Material: 3C90
Length: 1.122" (28.50mm)
Width: 0.531" (13.50mm)
Height: 0.729" (18.60mm)
Core Type: RM
Supplier Device Package: RM 10 x 1
Inductance Factor (Al): 900 nH
Finish: Uncoated
Gap: Gapped
Effective Permeability (µe): 330
Core Factor (ΣI/A) mm⁻¹: 0.462
Effective Length (le) mm: 44.6
Effective Area (Ae) mm²: 96.6
Minimum Core Cross Section (Amin) mm²: 89.1
Effective Magnetic Volume (Ve) mm³: 4310
Produkt ist nicht verfügbar
RM10/I-3C90-E100
Hersteller: Ferroxcube
Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
RM10/I-3C91 RM10_I.pdf
Hersteller: Ferroxcube
Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
RM10/I-3C91-A250 RM10_I.pdf
Hersteller: Ferroxcube
Description: RM CORES 2PC SET
Produkt ist nicht verfügbar
Wählen Sie Seite:   [  << Vorherige Seite ]  1 10 13 14 15 16 17 18 19 20 21 22 23 30 40 50 60 70 80 90 100  [ Nächste Seite >> ]
