Produkte > GOSSEN METRAWATT > Alle Produkte des Herstellers GOSSEN METRAWATT (72) > Seite 1 nach 2

Hersteller: GOSSEN METRAWATT
Category: Current Transformers
Description: Transformer: current; Iin: 1.5kA; Iout: 1A; on cable,for bus bar
Manufacturer series: ASK
Type of Transformer: current
Mounting: for bus bar; on cable
Internal diameter: 44mm
Conductor rail size: 50mmx40mm; 60mmx30mm
Dimensions (a x b x c): 96x105.5x58mm
Output current: 1A
Accuracy class: 1 @max 10VA
Power: 10VA
Frequency: 50Hz
Max. voltage: 720V
Input current: 1.5kA

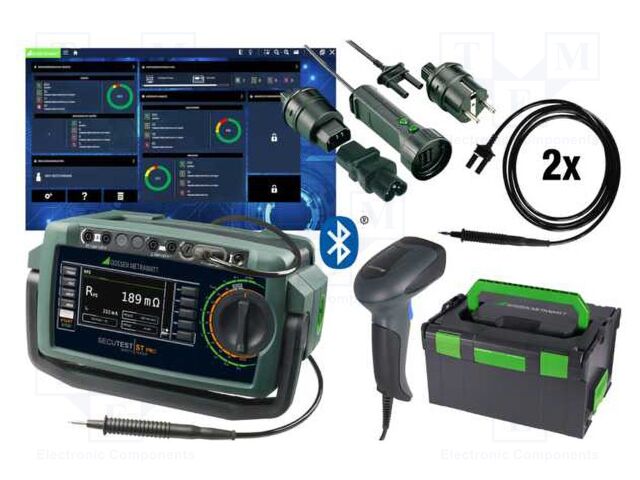

Hersteller: GOSSEN METRAWATT
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; touch screen,LCD; VAC: 0÷300V; 10kΩ÷300MΩ
Type of meter: appliance meter
Kind of display used: LCD; touch screen
Measurement: AC voltage; continuity; DC voltage; insulation resistance; leakage current; protective conductor resistance; RCD tripping time; touch voltage
Interface: Bluetooth; USB
Standard equipment: calibration certificate DAkkS; crocodile clip; mains cable; test leads set; USB cable; user's manual
Power supply: mains power supply
Body dimensions: 295x145x150mm
Measuring instrument features: automatic test sequence; protective rubber cover; remote control capability
Software: IZYTRONIQ BUSINESS Professional
Measurement memory: 50000
AC voltage measuring accuracy: ±(2% + 2 digit)
Insulation resistance measuring accuracy: ±(5% + 4digit)
Insulation resistance measuring ranges: 10kΩ...300MΩ
Conform to the norm: CAT II 250V; EN 60529; EN 61010; EN 61326; EN 61557
IP rating: IP40
Kit contents: adapter; barcode scanner; case; insert; probe; SECUTEST DB COMFORT
Test: residual current circuit breakers
Manufacturer series: SECUTEST
Operating temperature: 0...40°C
AC voltage measuring range: 0...300V

Hersteller: GOSSEN METRAWATT
Category: LAN and Telephone Networks Testers
Description: Tester: wire localizer; EasyTest; 120VAC; 0.25m
Manufacturer series: EasyTest
Power supply: battery 9V x2
Measuring instrument features: 6 frequencies selectable: SOLID: 1000, 2600, 577.5 Hz and ALT: 1000/800, 2600/1900, 577.5 Hz; acoustic and optical indication of signal presence and strength; automatic power-off; auto polarity; data port test with HUB-Blink; identifies state of operating telephone line; ISDN signal detection with probe; low battery indicator; visual fault location (VFL); voltage detector
Standard equipment: case; receiver; transmitter
Test: circuit continuity; wiring RJ11; wiring RJ45
Detection: discontinuities and short circuits in conductors; reversed connection; trace cable length up to 15km (no load)
Receiver dimensions: 220x40x25mm
Connection: crocodile clip; headphone jack; RJ11; RJ45; universal 2.5mm ferrule for FO connectors
Cable length: 0.25m
Protection: anti-overvoltage OVP
Max. voltage: 120V AC
Related items: KE-EASYTEST800; KE-PROBE410
Additional functions: torch
Application: IT; telecommunication
Type of tester: wire localizer
Transmitter dimensions: 68x96x25mm

Hersteller: GOSSEN METRAWATT
Category: Insulation Resistance Meters
Description: Carrying case
Related items: GM-M535E; GM-M540E; GM-M712D; GM-M712U; GM-M712X
Body dimensions: 380x310x200mm
Type of test accessories: carrying case

Hersteller: GOSSEN METRAWATT
Category: Bags & Soft Cases
Description: Carrying case; Equipment: carrying strap
Type of test accessories: carrying case
Standard equipment: carrying strap

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 10A; 1kV
Current rating: 10A
Rated voltage: 1kV
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 315mA; 1kV
Current rating: 0.315A
Rated voltage: 1kV
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 630mA; 380V
Current rating: 0.63A
Rated voltage: 380V
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 1.6A; 700V
Current rating: 1.6A
Rated voltage: 700V
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 16A; 600V
Current rating: 16A
Rated voltage: 0.6kV
Type of test accessories: fuse
Related items: GM-M101A; GM-M113A

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 1A; 1kV
Current rating: 1A
Rated voltage: 1kV
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 1A; 380V
Current rating: 1A
Rated voltage: 380V
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 6.3A; 500V
Current rating: 6.3A
Rated voltage: 0.5kV
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 630mA; 700V
Current rating: 0.63A
Rated voltage: 700V
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 1.6A; 1kV
Current rating: 1.6A
Rated voltage: 1kV
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 16A; 1kV
Current rating: 16A
Rated voltage: 1kV
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 16A; 600V
Current rating: 16A
Rated voltage: 0.6kV
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: Earth Resistance Meter
Description: Meter: grounding resistance; IP54; Interface: USB; 25V,50V
Type of meter: grounding resistance
Measurement: ground resistivity; interference frequencies; interference voltages; resistance (3-wire); resistance (4-wire)
Interface: USB
Measuring instrument features: clamp meter calibration; real time clock- RTC
IP rating: IP54
Standard equipment: 1,2m long test lead (red); 2,2m long test lead (black); 25m long test lead (green); 25m long test lead (red); 50m long test lead (blue); a earth spike; battery charger with plug for car lighter socket; case; crocodile clips (red, black); manufacturer's calibration certificate; power supply; screw terminal; USB cable; user's manual
Power supply: rechargeable battery Ni-MH x1
Body dimensions: 400x170x310mm
Test voltage: 25V; 50V
Measurement memory: 990

Hersteller: GOSSEN METRAWATT
Category: Earth Resistance Meter
Description: Meter: grounding resistance; IP54; Interface: USB; 25V,50V
Type of meter: grounding resistance
Measurement: ground resistivity; interference frequencies; interference voltages; resistance (3-wire); resistance (4-wire)
Interface: USB
Measuring instrument features: clamp meter calibration; measured values are save together with GPS coordinates; real time clock- RTC
IP rating: IP54
Standard equipment: 1,2m long test lead (red); 2,2m long test lead (black); 25m long test lead (green); 25m long test lead (red); 50m long test lead (blue); a earth spike; battery charger with plug for car lighter socket; case; crocodile clips (red, black); manufacturer's calibration certificate; power supply; screw terminal; USB cable; user's manual
Power supply: rechargeable battery Ni-MH x1
Body dimensions: 400x170x310mm
Test voltage: 25V; 50V
Measurement memory: 990

Hersteller: GOSSEN METRAWATT
Category: Bags & Soft Cases
Description: Carrying case; Equipment: carrying strap
Standard equipment: carrying strap
Type of test accessories: carrying case

Hersteller: GOSSEN METRAWATT
Category: Electronic Loads
Description: Test acces: GPIB interface
Type of test accessories: GPIB interface
Related items: GM-K852A; GM-K853A; GM-K854A; GM-K855A

Hersteller: GOSSEN METRAWATT
Category: One Channel Power Supplies
Description: Laboratory power supply: programmable; single-channel; 0÷60VDC
Type of laboratory power supply: programmable
Kind of power supply: single-channel
Number of channels: 1
Output voltage: 0...60V DC
Output current: 0...40A
Supply voltage: 115/230V AC
Kind of display used: LCD
Maximum power: 800W
Interface: GPIB (option); RS232C; USB
Manufacturer series: SYSKON
Measuring instrument features: 15 sets memory; 1700 parameters memory; automatic test sequence; MIN/MAX function; remote control capability
Voltage (regulated) ripple and noise: ≤6mVrms
Operating modes: constant current; constant voltage
Related items: GM-K384A; GM-K991B
Operating temperature: 0...40°C
Mounting: rack 19" (optional)
Output current resolution: 1mA
Output voltage resolution: 1mV
Dimensions: 447x102x541mm
Number of inputs/outputs: 2/3
Protection: anti-overvoltage OVP; over current OCP
Standard equipment: calibration certificate DAkkS; CD with documentation; mains cable; mounting kit; USB cable
Software: download from manufacturers website; included; SYSKON-SFP
Conform to the norm: EN 61010; EN 61326; IEC 61010-1:2010; VDE 0411

Hersteller: GOSSEN METRAWATT
Category: Single Test Leads
Description: Connection cable; 60VDC; 30VAC; Len: 100m
Type of test accessories: connection cable
Rated voltage: 30V AC; 60V DC
Cable length: 100m
Standard equipment: cable reel; user's manual
Related items: GM-M272S; GM-M273S; GM-M274S; GM-M630K
Cable/adapter structure: banana 4mm plug x2; banana 4mm socket x2

Hersteller: GOSSEN METRAWATT
Category: LAN and Telephone Networks Testers
Description: Tester: wire localizer; EasyTest; 350VAC,500VDC; 0.35m
Manufacturer series: EasyTest
Conform to the norm: CAT II 300V; EN 61010
Power supply: battery 9V x2
Measuring instrument features: 6 frequencies selectable: SOLID: 1000, 2600, 577.5 Hz and ALT: 1000/800, 2600/1900, 577.5 Hz; acoustic and optical indication of signal presence and strength; automatic power-off; auto polarity; data port test with HUB-Blink; identifies state of operating telephone line; low battery indicator; visual fault location (VFL); voltage detector
Standard equipment: case; receiver; transmitter
Test: circuit continuity; wiring RJ11; wiring RJ45
Detection: discontinuities and short circuits in conductors; reversed connection; trace cable length up to 15km (no load)
Receiver dimensions: 220x40x25mm
Connection: crocodile clip; headphone jack
Cable length: 0.35m
Protection: anti-overvoltage OVP
Max. voltage: 350V AC; 500V DC
Related items: KE-EASYTEST500; KE-PROBE510
Additional functions: torch
Application: IT; telecommunication
Type of tester: wire localizer
Transmitter dimensions: 68x96x25mm

Hersteller: GOSSEN METRAWATT
Category: LAN and Telephone Networks Testers
Description: Tester: wire localizer; EasyTest; 350VAC,500VDC; 0.25m
Manufacturer series: EasyTest
Power supply: battery 9V x2
Measuring instrument features: 6 frequencies selectable: SOLID: 1000, 2600, 577.5 Hz and ALT: 1000/800, 2600/1900, 577.5 Hz; acoustic and optical indication of signal presence and strength; automatic power-off; auto polarity; data port test with HUB-Blink; identifies state of operating telephone line; ISDN signal detection with probe; low battery indicator; visual fault location (VFL); voltage detector
Standard equipment: case; receiver; transmitter
Test: circuit continuity; wiring RJ11; wiring RJ45
Detection: discontinuities and short circuits in conductors; reversed connection; trace cable length up to 15km (no load)
Receiver dimensions: 220x40x25mm
Connection: crocodile clip; headphone jack; RJ11; RJ45
Cable length: 0.25m
Protection: anti-overvoltage OVP
Max. voltage: 350V AC; 500V DC
Related items: KE-EASYTEST720; KE-PROBE410
Additional functions: torch
Application: IT; telecommunication
Type of tester: wire localizer
Transmitter dimensions: 68x96x25mm

Hersteller: GOSSEN METRAWATT
Category: LAN and Telephone Networks Testers
Description: Tester: LAN wiring; LCD; max.150m; IP52
Related items: KE-0.49420-100; KE-0.57485-10; KE-0.57606; KE-0.57613; KE-0.57620; KE-KE7010; KE-KE7010-KIT; KE-KE7010PRO-KIT
Standard equipment: adapter RJ45 KE-0.57485-10; case; receiver KE-KE7010 x2; receiver KE-KE7200; test leads
Protection: anti-overvoltage OVP
Power supply: battery AA 1,5V x4
Detection: cable and wire continuity; discontinuities and short circuits in conductors; Hub-Link blink function; place of cable failure
Software: Ethernet Manager
IP rating: IP52
Type of tester: LAN wiring
Kind of display used: LCD
Test: wiring BNC; wiring RJ11; wiring RJ45; wiring type F
Receiver dimensions: 195x100x45mm
Measured cable length: max. 150m
Measuring instrument features: 10/100/1000Mbit networks test; changing the frame size for the PING function; datalogging; data port test with HUB-Blink; graphical display of measurement results; PoE/PoE+/PoE++ performance test; possibility of connecting up to 32 receivers; static and dynamic (DHCP) IP tests.; wire-mapping

Hersteller: GOSSEN METRAWATT
Category: Test Leads - Sets with Accessories
Description: Test leads; 20A; 1.2m; black,red; banana 4mm plug x2; -20÷50°C
Type of test accessories: test leads
Colour: black; red
Conform to the norm: CAT III 1000V; CAT IV 600V
Kit contents: clip-on probes x2; crocodile clip x2; test leads x2; test probes x2; USA mains socket test probe
Related items: GM-M101A; GM-M102A; GM-M192A; GM-M194A; GM-M197A; GM-M205A; GM-M227A; GM-M227B; GM-M227T; GM-M240A; GM-M241A; GM-M242A; GM-M243A; GM-M244A; GM-M245A; GM-M246B; GM-M246C; GM-M246S; GM-M248A; GM-M249A; GM-M250A; GM-M250T; GM-M252A; GM-M253A; GM-M273S; GM-M274S
Cable/adapter structure: banana 4mm plug x2
Operating temperature: -20...50°C
Cable length: 1.2m
Current rating: 20A

Hersteller: GOSSEN METRAWATT
Category: Test Leads - Sets
Description: Test leads; Inom: 16A; insulated,with protection; test leads x3
Current rating: 16A
Test lead configuration: banana plug 4mm x3; probe tip x3
Colour: black; blue; red
Conform to the norm: CAT II 1000V; CAT IV 600V
Related items: GM-M227A; GM-M245A; GM-M249A; GM-Z270M
Connector variant: insulated; with protection
Wire insulation material: PVC
Type of test accessories: test leads
Kit contents: test leads x3

Hersteller: GOSSEN METRAWATT
Category: Crocodile Clips - Others
Description: Crocodile clip; black,red; Kit: crocodile clip x2; 19A
Type of test accessories: crocodile clip
Colour: black; red
Conform to the norm: CAT III 1000V
Kit contents: crocodile clip x2
Related items: GM-GTY3620034P0002; GM-M101A; GM-M102A; GM-M192A; GM-M194A; GM-M205A; GM-M227A; GM-M227B; GM-M227T; GM-M240A; GM-M241A; GM-M242A; GM-M243A; GM-M245A; GM-M246B; GM-M246C; GM-M246M; GM-M246S; GM-M248A; GM-M250A; GM-M252A; GM-M253A; GM-M273S; GM-M274S; GM-Z270M
Cable/adapter structure: banana 4mm plug
Maximum current: 19A

Hersteller: GOSSEN METRAWATT
Category: Probes - Test Plugs
Description: Clip-on probe; black,red; Overall len: 162mm; Kit: test probes x2
Type of test accessories: clip-on probe
Colour: black; red
Conform to the norm: CAT II 1000V
Overall length: 162mm
Kit contents: test probes x2
Related items: GM-GTY3620034P0002; GM-M101A; GM-M102A; GM-M192A; GM-M194A; GM-M197A; GM-M205A; GM-M206A; GM-M240A; GM-M241A; GM-M242A; GM-M243A; GM-M244A; GM-M244B; GM-M245A; GM-M246B; GM-M246C; GM-M246M; GM-M246N; GM-M246S; GM-M248A; GM-M249A; GM-M249D; GM-M250A; GM-M250T; GM-M252A; GM-M253A; GM-M272S; GM-M273S; GM-M274S
Cable/adapter structure: banana 4mm socket
Maximum current: 6A
Jaw capacity: 4mm

Hersteller: GOSSEN METRAWATT
Category: Accessories - Others
Description: Fuse; 125mA; 250V
Current rating: 0.125A
Rated voltage: 0.25kV
Type of test accessories: fuse

Hersteller: GOSSEN METRAWATT
Category: PV and EVSE Testers and Meters
Description: Meter: appliance meter; 0÷1.5kV; 0÷20A; Temp: -40÷120°C
Battery/ rechargeable battery: rechargeable battery Li-Ion 11,25V x1
Interface: USB
Measuring instruments application: photovoltaics
Kind of display used: LCD; touch screen
Temperature measuring range: -40...120°C
Operating temperature: 0...50°C
DC current measuring range: 0...20A
DC voltage measuring range: 0...1.5kV
Test voltage: 0... 1.5kV DC; 25V DC; 100V DC; 500V DC; 1.5kV DC
Body dimensions: 410x328x175mm
Display resolution: 480x272
Standard equipment: etui; external temperature sensor; power supply; radiation sensor; software; test leads MC4; USB cable
Measurement: insolation; internal resistance; power; temperature
Type of meter: appliance meter
Measuring instrument features: battery level indication; memory built-in; tone signal

Hersteller: GOSSEN METRAWATT
Description: PROFiTEST MF TECH, Tester
Packaging: Retail Package
For Use With/Related Products: Field Testing
Tool Type: Multi-Function Tester

Hersteller: GOSSEN METRAWATT
Description: METRALINE VT LED, Voltage Tester
Packaging: Retail Package
For Use With/Related Products: Electrical Systems
Tool Type: Voltage Tester

Hersteller: GOSSEN METRAWATT
Category: Indicators, Voltage & Continuity Testers
Description: Tester: electrical; LCD; VAC: 500mV÷1kV; VDC: 500mV÷1.5kV; IP64
Type of tester: electrical
Measuring instrument features: automatic power-off; built-in torch; indicates phase sequence; LED indicator; polarization indicator; reinforced enclosure; True RMS measurement; vibration mode
Power supply: battery LR03 AAA 1,5V x2
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Conform to the norm: CAT II 1000V; CAT III 1000V; CAT IV 600V; EN 61243-3
IP rating: IP64
Kind of display used: LCD
True effective value measurement: True RMS AC
Operating temperature: -15...50°C
Diode test: 0...2V
Bandwidth for AC voltage measurements: 16.7...950Hz
Resistance measuring range: 0...1999Ω
Body dimensions: 280x75x35mm
AC voltage measuring range: 500mV...1kV
DC voltage measuring range: 500mV...1.5kV
DC voltage measuring accuracy: ±(3% + 3 digit)
Resistance measuring accuracy: ±(5%+10 digit)
Frequency measuring range: 1...950Hz
AC voltage measuring accuracy: ±(3% + 3 digit)
Frequency measuring accuracy: ±(5%+5 digit)
Measurement: AC voltage; continuity; DC voltage; frequency; phase sequence; resistance
Continuity test: acoustic indication; optical indication; 0Ω...500kΩ

Hersteller: GOSSEN METRAWATT
Description: SECUTEST ST PRO, Tester
Packaging: Retail Package
For Use With/Related Products: Test Equipment
Tool Type: Safety Tester

Hersteller: GOSSEN METRAWATT

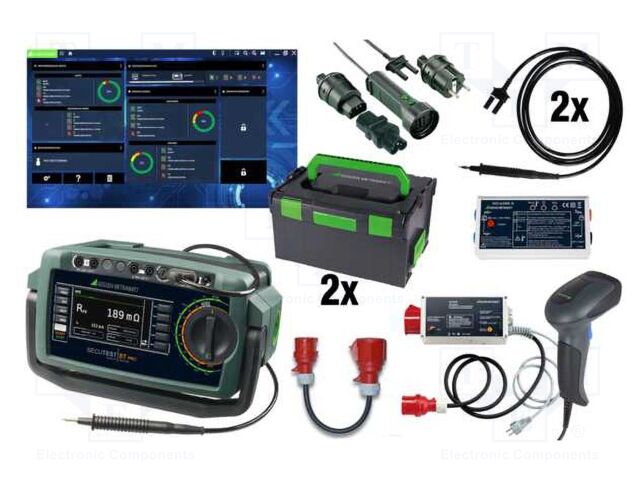

Description: PROFIPAKET SECUTEST ST PRO
Packaging: Retail Package
For Use With/Related Products: Test Equipment
Tool Type: Safety Tester

Hersteller: GOSSEN METRAWATT
Description: SECUTEST LEMONGREEN, Tester
Packaging: Retail Package
For Use With/Related Products: Test Equipment
Tool Type: Safety Tester

Hersteller: GOSSEN METRAWATT
Category: Calibrators
Description: Meter: multimeter calibrator; Diode test: 1mA@3.2V; frequency
Type of meter: multimeter calibrator
Kind of display used: LCD
Display parameters: 4,75 digit; (30000)
True effective value measurement: True RMS AC
DC voltage measuring range: 60mV; 300mV; 3V; 30V; 300V
DC voltage measuring accuracy: ±(0.05% + 10 digit)
AC voltage measuring range: 60mV; 300mV; 3V; 30V; 300V
AC voltage measuring accuracy: ±(0.2% + 30 digit)
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA
DC current measuring accuracy: ±(0.05% + 15 digit)
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA
AC current measuring accuracy: ±(0.015% + 0.005% range); ±(0.5% + 30 digit)
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Resistance measuring accuracy: ±(0.1%+5 digit)
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
Capacitance measuring accuracy: ±(1%+ 6 digit)
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Frequency measuring accuracy: ±(0.05%+5 digit)
Diode test: 1mA @3.2V
Continuity test: acoustic indication; <300Ω
Measurement: 0-20mA current loop; 0-24mA current loop; 4-20mA current loop; AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Interface: IR (option)
Measuring instrument features: dual mode – simultaneous calibration and measurement; frequency generator; HOLD function; MIN/MAX function; operates with thermocouple types: J, K, T, S, B, E, N, L, U, R, Pt100, PT1000, Ni100, Ni1000
Dimensions: 200x87x45mm
Producer guarantee (months): 36
Memory capacity: 16Mb
Standard equipment: calibration certificate DAkkS; carrying strap; holster; test leads ( 3pcs.); user's manual
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Power supply: battery LR6 AA 1,5V x2
Additional functions: calibrator; data logger; multimeter; simulator
Conform to the norm: CAT II 600V; EN 61010
Kind of calibrator: current; frequency; loop; resistance; RTD; thermocouple; voltage
Software: LabVIEW
IP rating: IP65
Current source: 0...24mA

Hersteller: GOSSEN METRAWATT
Category: Batteries Testers
Description: Tester: batteries and rechargeable batteries; 96x154x33mm; IP40
Dimensions: 96x154x33mm
Kind of display used: LCD
Interface: Bluetooth
Standard equipment: carrying strap; crocodile clip x2; hard case; Kelvin probe x2; manufacturer's calibration certificate; power supply; test probe x2; user's manual
Measuring instrument features: battery identification by means of RFID tag reader; capacity test: recording of discharge current and voltage curve; impact resistant holster; measurement of block voltages up to ± 24.5 VDC; Rct and Rel measurement methods- possible electrical and electro-chemical damage to the battery block is reliably detected
DC voltage measuring range: -600...600V
Temperature measuring range: -230...230°C
Resistance measuring range: 0...1000mΩ
AC voltage measuring range: 0...300V
Measurement: AC voltage; DC voltage; resistance; temperature
Measurement memory: 30000
Type of tester: batteries and rechargeable batteries
Conform to the norm: CAT III 600V; EN 61010
Supported formats: CSV
Application: for battery systems; for UPS
Related items: GM-Z202B; GM-Z204A; GM-Z227F; GM-Z680A
Software: included
IP rating: IP40
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x4
Power supply: rechargeable battery Ni-MH AA 1,2V x4

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4,5 digit (19999); 2x/s; True RMS; IP52
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 4,5 digit (19999)
Sampling: 2x/s
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring accuracy: ±(0.05% + 3 digit)
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
AC voltage measuring accuracy: ±(0.5% + 9 digit)
DC current measuring range: 10mA; 100mA; 1A; 10A
DC current measuring accuracy: ±(0.1% + 5 digit)
AC current measuring range: 10mA; 100mA; 1A; 10A
AC current measuring accuracy: ±(1% + 10 digit)
True effective value measurement: True RMS
Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 40MΩ
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 100µF; 1mF
Capacitance measuring accuracy: ±(1%+ 6 digit)
Frequency measuring range: 15Hz...10kHz
Frequency measuring accuracy: ±(1%+9 digit)
Temperature measuring range: -250...1372°C
Temperature measurement accuracy: ±(0.3% + 15 digit)
Resistance measuring accuracy: ±(0.2%+5 digit)
Temperature measurement resolution: 0.1°C
Diode test: 5.1V
Continuity test: acoustic indication; <100Ω
Operating temperature: -10...50°C
Pollution degree: 2
IP rating: IP52
Weight with battery: 350g
Power supply: battery LR6 AA 1,5V x2
Standard equipment: calibration certificate DAkkS; holster; test leads KS17-2; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 200x87x45mm
Producer guarantee (months): 36
Measuring instrument features: 10A/1000V fuse; automatic power-off; for use with type-K thermocouple; HOLD function; MIN/MAX function; protective rubber cover
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Manufacturer series: METRAHIT
Bargraph: yes

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; IR; LCD; 4,5 digit (19999); 2x/s; True RMS
Operating temperature: -10...50°C
Power supply: battery LR6 AA 1,5V x2
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Type of meter: digital multimeter
Interface: IR
Standard equipment: calibration certificate DAkkS; test leads KS17-2; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Kind of display used: LCD
IP rating: IP52
Manufacturer series: METRAHIT
True effective value measurement: True RMS
Bargraph: yes
Temperature measuring range: -250...1372°C
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 100µF; 1mF
AC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A; 10A
DC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A; 10A
Diode test: 5.1V
DC voltage measuring accuracy: ±(0.05% + 3 digit)
Resistance measuring accuracy: ±(0.2%+5 digit)
Frequency measuring accuracy: ±(1%+9 digit)
AC voltage measuring accuracy: ±(0.5% + 9 digit)
DC current measuring accuracy: ±(0.5% + 3 digit)
Temperature measurement accuracy: ±(0.3% + 15 digit)
Dimensions (W x H x D): 200x87x45mm
Temperature measurement resolution: 0.1°C
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
AC current measuring accuracy: ±(1.5% + 10 digit)
Capacitance measuring accuracy: ±(1%+ 6 digit)
Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 40MΩ
Pollution degree: 2
Frequency measuring range: 15Hz...20kHz
Producer guarantee (months): 36
Weight with battery: 350g
Memory capacity: 4Mb
Sampling: 2x/s
Display parameters: 4,5 digit (19999)
Measuring instrument features: 10A/1000V fuse; automatic power-off; HOLD function; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000; with power pack socket
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Continuity test: acoustic indication; <100Ω

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; IR; LCD; 4,75 digit; True RMS; Resol: 0.1°C
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: 4,75 digit
True effective value measurement: True RMS
DC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Frequency measuring accuracy: ±(0.1%+2 digit)
Temperature measuring range: -250...1372°C
Test: diodes
Continuity test: acoustic indication; <90Ω
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; insulation resistance; resistance; temperature
Interface: IR
Measuring instrument features: interturn short-circuit detection with COIL test adapter; low-pass filter; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000
Producer guarantee (months): 36
Test voltage: 50V; 100V; 250V; 500V; 1kV
Weight with battery: 350g
Insulation resistance measuring ranges: 3.1GΩ
Standard equipment: calibration certificate DAkkS; test leads KS17-2
Related items: GM-Z270F
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Power supply: battery LR6 AA 1,5V x2
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
IP rating: IP54
Manufacturer series: METRAHIT
Bargraph: yes
Dimensions (W x H x D): 200x87x45mm
Temperature measurement resolution: 0.1°C

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,WLAN; colour,LCD TFT 3,5"; IP52
Interface: Bluetooth; WLAN
Related items: GM-Z270A; GM-Z270E; GM-Z270F; GM-Z270L; GM-Z270M
Kind of display used: colour; LCD TFT 3,5"
Display resolution: 320x480
IP rating: IP52
Battery/ rechargeable battery: rechargeable battery Li-Po 3,7V 4000mAh x1
Power supply: rechargeable battery Li-Po 3,7V 4000mAh x1
True effective value measurement: True RMS AC; True RMS AC+DC
Bargraph: yes
Temperature measuring range: -250...1372°C
Insulation resistance measuring ranges: 3.1GΩ
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
Frequency measuring accuracy: ±(0.05%+5 digit)
Temperature measurement resolution: 0.1°C
AC voltage measuring accuracy: ±(0.15% + 10 digit)
DC current measuring accuracy: ±(0.15% + 10 digit)
DC voltage measuring accuracy: ±(0.5% + 30 digit)
Resistance measuring accuracy: ±(0.15%+10 digit)
Dimensions (W x H x D): 235x105x56mm
DC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC current measuring accuracy: ±(0.5% + 30 digit)
Capacitance measuring accuracy: ±(1%+ 6 digit)
Diode test: 5.1V
Producer guarantee (months): 36
Test voltage: 50V; 100V; 250V; 500V; 1kV
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Weight with battery: 700g
Standard equipment: calibration certificate DAkkS; card with registration key for the software; hard case; Kelvin clip; Kelvin probe; power supply; test leads KS17-2; test probe x1; user's manual
Measurement: AC current; AC voltage; capacitance; continuity; current (with current clamps); DC current; DC voltage; frequency; insulation resistance; resistance (2-wire); resistance (4-wire); temperature
Continuity test: acoustic indication; <90Ω
Type of meter: digital multimeter
Measuring instrument features: auto and manual ranging; automatic blocking sockets for the current input; current measurement with clamp sensors; HOLD function; impact resistant holster; interturn short-circuit detection with COIL test adapter; low-pass filter; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000; polarization index (PI) and dielelectric absorption ratio (DAR); push/print function transfers measured values to software by pressing a key
Application: automotive
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth; colour,LCD TFT 3,5"; (30000)
Interface: Bluetooth
Kind of display used: colour; LCD TFT 3,5"
Display resolution: 320x480
IP rating: IP52
Battery/ rechargeable battery: rechargeable battery Li-Po 3,7V 4000mAh x1
Power supply: rechargeable battery Li-Po 3,7V 4000mAh x1
True effective value measurement: True RMS
Bargraph: yes
Temperature measuring range: -250...1372°C
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
Frequency measuring accuracy: ±(0.05%+5 digit)
Temperature measurement resolution: 0.1°C
AC voltage measuring accuracy: ±(0.5% + 30 digit)
DC current measuring accuracy: ±(0.15% + 10 digit)
DC voltage measuring accuracy: ±(0.15% + 10 digit)
Resistance measuring accuracy: ±(0.15%+10 digit)
Dimensions (W x H x D): 235x105x56mm
DC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC current measuring accuracy: ±(0.5% + 30 digit)
Capacitance measuring accuracy: ±(1%+ 6 digit)
Diode test: 4.5V
Producer guarantee (months): 36
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Weight with battery: 700g
Standard equipment: calibration certificate DAkkS; card with registration key for the software; hard case; Kelvin clip; power supply; test leads KS17-2; test probe x1; user's manual
Display parameters: (30000)
Measurement: AC current; AC voltage; capacitance; continuity; current (with current clamps); DC current; DC voltage; frequency; insulation resistance; resistance (2-wire); resistance (4-wire); temperature
Continuity test: acoustic indication; <90Ω
Type of meter: digital multimeter
Measuring instrument features: auto and manual ranging; automatic blocking sockets for the current input; current measurement with clamp sensors; HOLD function; impact resistant holster; interturn short-circuit detection with COIL test adapter; low-pass filter; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000; polarization index (PI) and dielelectric absorption ratio (DAR); push/print function transfers measured values to software by pressing a key
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Manufacturer series: METRAHIT

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,WLAN; colour,LCD TFT 3,5"; IP52
Interface: Bluetooth; WLAN
Related items: GM-Z270A; GM-Z270E; GM-Z270F; GM-Z270L; GM-Z270M
Kind of display used: colour; LCD TFT 3,5"
Display resolution: 320x480
IP rating: IP52
Battery/ rechargeable battery: rechargeable battery Li-Po 3,7V 4000mAh x1
Power supply: rechargeable battery Li-Po 3,7V 4000mAh x1
True effective value measurement: True RMS AC; True RMS AC+DC
Bargraph: yes
Temperature measuring range: -250...1372°C
Insulation resistance measuring ranges: 3.1GΩ
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 1A
Frequency measuring accuracy: ±(0.05%+5 digit)
Temperature measurement resolution: 0.1°C
AC voltage measuring accuracy: ±(0.15% + 10 digit)
DC current measuring accuracy: ±(0.15% + 10 digit)
DC voltage measuring accuracy: ±(0.5% + 30 digit)
Resistance measuring accuracy: ±(0.15%+10 digit)
Dimensions (W x H x D): 235x105x56mm
DC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC current measuring accuracy: ±(0.5% + 30 digit)
Capacitance measuring accuracy: ±(1%+ 6 digit)
Diode test: 5.1V
Producer guarantee (months): 36
Test voltage: 50V; 100V; 250V; 500V; 1kV
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Weight with battery: 700g
Standard equipment: calibration certificate DAkkS; card with registration key for the software; hard case; Kelvin clip; power supply; test leads KS17-2; test probe x1; user's manual
Measurement: AC current; AC voltage; capacitance; continuity; current (with current clamps); DC current; DC voltage; frequency; insulation resistance; resistance (2-wire); resistance (4-wire); temperature
Continuity test: acoustic indication; <90Ω
Type of meter: digital multimeter
Measuring instrument features: auto and manual ranging; automatic blocking sockets for the current input; current measurement with clamp sensors; HOLD function; impact resistant holster; interturn short-circuit detection with COIL test adapter; low-pass filter; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000; polarization index (PI) and dielelectric absorption ratio (DAR); push/print function transfers measured values to software by pressing a key
Application: automotive
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; IR; LCD; 4,75 digit; True RMS; Resol: 0.1°C
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: 4,75 digit
True effective value measurement: True RMS
DC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Frequency measuring accuracy: ±(0.1%+2 digit)
Temperature measuring range: -250...1372°C
Test: diodes
Continuity test: acoustic indication; <90Ω
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; insulation resistance; resistance; temperature
Interface: IR
Measuring instrument features: low-pass filter; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000
Producer guarantee (months): 36
Test voltage: 50V; 100V; 250V; 500V; 1kV
Weight with battery: 350g
Insulation resistance measuring ranges: 3.1GΩ
Standard equipment: calibration certificate DAkkS; test leads KS17-2
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Power supply: battery LR6 AA 1,5V x2
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
IP rating: IP54
Manufacturer series: METRAHIT
Bargraph: yes
Dimensions (W x H x D): 200x87x45mm
Temperature measurement resolution: 0.1°C

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,IR,USB X-TRA; LCD; (60000); IP52
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (60000)
True effective value measurement: True RMS
DC voltage measuring range: 300mV; 3V; 30V; 300V; 600V
DC voltage measuring accuracy: ±(0.02% + 5 digit)
AC voltage measuring range: 300mV; 3V; 30V; 300V; 600V
AC voltage measuring accuracy: ±(0.2% + 30 digit)
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
DC current measuring accuracy: ±(0.3% + 5 digit)
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
AC current measuring accuracy: ±(0.5% + 30 digit)
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Resistance measuring accuracy: ±(0.06%+5 digit)
Capacitance measuring range: 3nF; 30nF; 300nF; 3µF; 30µF; 300µF; 3mF
Capacitance measuring accuracy: ±(1%+ 6 digit)
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Frequency measuring accuracy: ±(0.05%+3 digit)
Temperature measuring range: -250...1372°C
Diode test: 4.5V
Test: diodes
Continuity test: acoustic indication; <300Ω
Measurement: AC current; AC voltage; capacitance; continuity; dB; DC current; DC voltage; frequency; resistance; temperature
Interface: Bluetooth; IR; USB X-TRA
Measuring instrument features: 10A/1000V fuse; HOLD function; MIN/MAX/REL function; zeroing function
Temperature measurement accuracy: ±(0.3% + 10°C)
Producer guarantee (months): 36
Weight with battery: 400g
Standard equipment: calibration certificate DAkkS; holster; test leads KS17-2; user's manual
Battery/ rechargeable battery: battery AA 1,5V x2
Power supply: battery AA 1,5V x2
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
IP rating: IP52
Manufacturer series: METRAHIT
Operating temperature: -10...50°C
Dimensions (W x H x D): 200x87x45mm
Temperature measurement resolution: 0.1°C

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; IR; LCD; 4-6/7 digits (60000); 2x/s; True RMS
Kind of display used: LCD
Manufacturer series: METRAHIT
True effective value measurement: True RMS
Bargraph: yes
Temperature measuring range: -250...1372°C
Operating temperature: -10...50°C
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC voltage measuring accuracy: ±(0.05% + 5 digit)
Temperature measurement resolution: 0.1°C
DC current measuring accuracy: ±(0.1% + 5 digit)
Resistance measuring accuracy: ±(0.1%+5 digit)
Dimensions (W x H x D): 200x87x45mm
Temperature measurement accuracy: ±(0.3% + 15 digit)
AC voltage measuring accuracy: ±(0.5% + 9 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
Capacitance measuring accuracy: ±(1%+ 6 digit)
Frequency measuring accuracy: ±(1%+9 digit)
AC current measuring accuracy: ±(1% + 10 digit)
Pollution degree: 2
Diode test: 6V
Frequency measuring range: 15Hz...100kHz
Producer guarantee (months): 36
Weight with battery: 350g
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Sampling: 2x/s
Memory capacity: 16Mb
Display parameters: 4-6/7 digits (60000)
Measuring instrument features: 10A/1000V fuse; automatic power-off; HOLD function; low-pass filter; MIN/MAX/REL function; operates with thermocouple types: K, Pt100, PT1000; with power pack socket; zeroing function
Measurement: AC current; AC voltage; capacitance; continuity; dB; DC current; DC voltage; frequency; resistance; temperature
Continuity test: acoustic indication; <600Ω
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Power supply: battery LR6 AA 1,5V x2
Standard equipment: calibration certificate DAkkS; case; holster; test leads KS17-2; user's manual
Type of meter: digital multimeter
IP rating: IP52
Interface: IR

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3 6/7-digit; 3x/s; True RMS; 10÷1000kHz
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: 3 6/7-digit
True effective value measurement: True RMS
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1% + 5 digit)
DC current measuring range: 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(1% + 5 digit)
AC current measuring range: 60mA; 600mA; 6A; 10A
AC current measuring accuracy: ±(1.5% + 5 digit)
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 40MΩ
Resistance measuring accuracy: ±(0.7%+3 digit)
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF
Capacitance measuring accuracy: ±(1%+ 6 digit)
Frequency measuring range: 10...1000kHz
Frequency measuring accuracy: ±(0.1%+2 digit)
Temperature measuring range: -50...800°C
Diode test: 3V
Continuity test: acoustic indication; <600Ω
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Measuring instrument features: 1,6A/1000V fuse; 10A/1000V fuse; auto and manual ranging; HOLD function; MIN/MAX function
Temperature measurement accuracy: ±(1% + 5°C)
Pollution degree: 2
Producer guarantee (months): 36
Weight with battery: 350g
Standard equipment: calibration certificate DAkkS; holster; test leads KS17-2; user's manual
Sampling: 3x/s
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Power supply: battery LR6 AA 1,5V x2
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
IP rating: IP40
Manufacturer series: METRAHIT
Bargraph: yes
Operating temperature: -10...50°C
Dimensions (W x H x D): 84x195x35mm
Temperature measurement resolution: 0.1°C

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,75 digit (3999); 3x/s; Resol: 1°C; IP50
Operating temperature: 0...50°C
Test: diodes
IP rating: IP50
Kind of display used: LCD
Temperature measuring range: -50...1300°C
DC current measuring range: 40mA; 400mA; 10A
Capacitance measuring range: 5nF; 50nF; 500nF; 5µF; 50µF; 200µF
AC current measuring range: 40mA; 400mA; 10A
DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
AC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
Dimensions (W x H x D): 86x188x53mm
Frequency measuring accuracy: ±(0.2%+2 digit)
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
DC voltage measuring accuracy: ±(0.5% + 2 digit)
Capacitance measuring accuracy: ±(0.5%+ 3 digit)
Resistance measuring accuracy: ±(0.8%+2 digit)
DC current measuring accuracy: ±(0.8% + 2 digit)
Temperature measurement resolution: 1°C
Temperature measurement accuracy: ±(2% + 3 digit)
AC voltage measuring accuracy: ±(1% + 5 digit)
AC current measuring accuracy: ±(1% + 5 digit)
Pollution degree: 2
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 500kHz
Producer guarantee (months): 36
Weight with battery: 480g
Sampling: 3x/s
Display parameters: 3,75 digit (3999)
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Continuity test: acoustic indication; <400Ω
Measuring instrument features: auto and manual ranging; HOLD function; REL function
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Power supply: battery LR6 AA 1,5V x2
Standard equipment: holster; test leads
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Type of meter: digital multimeter

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4 digit; 2,8x/s; I DC: 66mA,660mA; IP50
Continuity test: acoustic indication; <600Ω
Measuring instrument features: auto and manual ranging; MIN/MAX/REL function; operates with thermocouple types: K; zeroing function
Power supply: battery LR6 AA 1,5V x2
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Standard equipment: holster; test leads
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Type of meter: digital multimeter
IP rating: IP50
Kind of display used: LCD
Bargraph: yes
Temperature measuring range: -50...1300°C
Operating temperature: 0...50°C
DC current measuring range: 66mA; 660mA
AC current measuring range: 66mA; 660mA
Dimensions (W x H x D): 86x188x53mm
DC voltage measuring range: 660mV; 6.6V; 66V; 660V; 1kV
AC voltage measuring range: 660mV; 6.6V; 66V; 660V; 1kV
DC voltage measuring accuracy: ±(0.4% + 5 digit)
DC current measuring accuracy: ±(0.8% + 5 digit)
Resistance measuring accuracy: ±(0.8%+5 digit)
AC current measuring accuracy: ±(0.8% + 5 digit)
Temperature measurement resolution: 1°C
AC voltage measuring accuracy: ±(1% + 3 digit)
Pollution degree: 2
Temperature measurement accuracy: ±(2% + 2°C)
Diode test: 3.3V
Producer guarantee (months): 36
Resistance measuring range: 660Ω; 6.6kΩ; 66kΩ; 660kΩ; 6.6MΩ; 66MΩ
Weight with battery: 480g
Sampling: 2,8x/s
Display parameters: 4 digit
Measurement: AC current; AC voltage; DC current; DC voltage; resistance; temperature

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4 digit; 2,8x/s; I DC: 66mA,660mA,10A
Continuity test: acoustic indication; <600Ω
Measuring instrument features: auto and manual ranging; MIN/MAX/REL function; operates with thermocouple types: K; zeroing function
Power supply: battery LR6 AA 1,5V x2
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Standard equipment: holster; test leads
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Type of meter: digital multimeter
IP rating: IP50
Kind of display used: LCD
True effective value measurement: True RMS
Bargraph: yes
Temperature measuring range: -50...1300°C
Operating temperature: 0...50°C
Capacitance measuring range: 6.6nF; 66nF; 660nF; 6.6µF; 66µF; 660µF; 6.6mF; 40mF
DC current measuring range: 66mA; 660mA; 10A
AC current measuring range: 66mA; 660mA; 10A
Dimensions (W x H x D): 86x188x53mm
Frequency measuring accuracy: ±(0.2%+2 digit)
DC voltage measuring range: 660mV; 6.6V; 66V; 660V; 1kV
AC voltage measuring range: 660mV; 6.6V; 66V; 660V; 1kV
DC voltage measuring accuracy: ±(0.4% + 5 digit)
Capacitance measuring accuracy: ±(2%+ 10 digit)
DC current measuring accuracy: ±(0.8% + 5 digit)
Resistance measuring accuracy: ±(0.8%+5 digit)
AC current measuring accuracy: ±(0.8% + 5 digit)
Temperature measurement resolution: 1°C
AC voltage measuring accuracy: ±(1% + 3 digit)
Pollution degree: 2
Temperature measurement accuracy: ±(2% + 2°C)
Diode test: 3.3V
Frequency measuring range: 66...10MHz
Producer guarantee (months): 36
Resistance measuring range: 660Ω; 6.6kΩ; 66kΩ; 660kΩ; 6.6MΩ; 66MΩ
Weight with battery: 480g
Sampling: 2,8x/s
Display parameters: 4 digit
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature

Hersteller: GOSSEN METRAWATT
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; LCD TFT 3,5"; Earthing R range: 0÷9999Ω
Type of meter: appliance meter
Kind of display used: LCD TFT 3,5"
Body dimensions: 250x107x135mm
Power supply: battery AA 1,5V x6
Measuring instrument features: automatic polarization selection
Standard equipment: 3 crocodile clips; case; test leads; test probe x3; USB A / USB B cable
Interface: USB
Battery/ rechargeable battery: battery AA 1,5V x6
Conform to the norm: CAT III 600V; CAT IV 300V; EN 60529; EN 61010; IEC 60529; IEC 61010; IEC 61326-1; IEC 61557
Software: METRAreport
Touchpad: none
Illumination: yes
Operating temperature: 0...40°C
AC voltage measuring range: 0...550V
Earthing resistance measuring range: 0...9999Ω
Insulation resistance measuring ranges: 0...999MΩ
Test voltage: 50V; 100V; 250V; 500V; 1kV
Measurement memory: 1000
RCD test: AC, B, B+, A and F-type RCDs
Measurement: AC voltage; continuity; earthing resistance; frequency; impedance; insulation resistance; RCD tripping current; RCD tripping time
Manufacturer series: METRALINE MF

Hersteller: GOSSEN METRAWATT
Category: Miliohmmeters
Description: Milli-ohm meter; LCD TFT 3,5"; 1mΩ÷99.9Ω; ±(1%+2digit); IP40
Type of meter: milli-ohm meter
Kind of display used: LCD TFT 3,5"
IP rating: IP40
Power supply: battery LR6 AA 1,5V x6
Measuring instrument features: 4-wire measurement possibility; autoranging
Standard equipment: case; four-wire Kelvin clips; mains cable; manufacturer's calibration certificate; test leads with crocodile clips; USB A / USB B cable
Conform to the norm: CAT II 600V; EN 60529; EN 61010; EN 61557; IEC 60529; IEC 61010; IEC 61326-1
Operating temperature: 0...40°C
Resistance measuring range: 1mΩ...99.9Ω
Resistance measuring accuracy: ±(1%+2 digit)
Dimensions (W x H x D): 250x107x135mm
Weight with battery: 1.75kg
Measurement memory: 1000
Measuring resolution: 0,001Ω
Measurement: resistance

Hersteller: GOSSEN METRAWATT
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; 4,75 digit; 2x/s; True RMS; IP40
Interface: USB
Bargraph: yes
Temperature measuring range: -250...1372°C
Operating temperature: -10...50°C
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
DC voltage measuring range: 30mV; 300mV; 3V; 30V; 300V; 600V
AC voltage measuring range: 30mV; 300mV; 3V; 30V; 300V; 600V
Temperature measurement resolution: 0.1°C
Dimensions (W x H x D): 146x118x44mm
DC voltage measuring accuracy: ±(0.2% + 3 digit)
Resistance measuring accuracy: ±(0.2%+5 digit)
DC current measuring accuracy: ±(0.5% + 5 digit)
Temperature measurement accuracy: ±(0.5% + 15 digit)
AC voltage measuring accuracy: ±(0.5% + 30 digit)
Capacitance measuring accuracy: ±(1%+ 6 digit)
AC current measuring accuracy: ±(1.5% + 30 digit)
Pollution degree: 2
Diode test: 8.4V
Resistance measuring range: 30Ω; 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Producer guarantee (months): 36
Weight with battery: 450g
Sampling: 2x/s
Frequency measuring range: 300...1000kHz
Display parameters: 4,75 digit
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Continuity test: acoustic indication; <300Ω
Measuring instrument features: auto and manual ranging; MIN/MAX function; operates with thermocouple types: K, Pt100, PT1000
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Power supply: battery LR6 AA 1,5V x2
Standard equipment: calibration certificate DAkkS; carrying strap; test leads KS17-2; user's manual
Conform to the norm: CAT II 300V; EN 61010
Type of meter: digital multimeter
IP rating: IP40
Kind of display used: LCD
True effective value measurement: True RMS

Hersteller: GOSSEN METRAWATT
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD 5,6"; VAC: 0÷750V; 0÷49.99uF
Related items: GM-Z555A; GM-Z555B; GM-Z555C; GM-Z555D; GM-Z555E; GM-Z555F; GM-Z555G; GM-Z555H; GM-Z555J; GM-Z555K; GM-Z555L; GM-Z555M; GM-Z555N; GM-Z555O; GM-Z555P; GM-Z555R; GM-Z555S; GM-Z555T; GM-Z555U; GM-Z555Z; GM-Z556K; GM-Z556L; GM-Z556M; GM-Z556N; GM-Z556O
Conform to the norm: CAT III 1000V; CAT IV 600V; DIN VDE 0413; EN 61010
Measuring instrument features: creation of R/I or R/U diagrams; digital filter for stabilizing measured values; polarization index (PI) and dielelectric absorption ratio (DAR)
Type of meter: insulation resistance
IP rating: IP40
Kind of display used: LCD 5,6"
Power supply: rechargeable battery Li-Ion 14,8V x1
Temperature measuring range: -10...99.9°C
Capacitance measuring range: 0...49.99µF
Resistance measuring range: 0...20Ω; 20...200Ω; 200...1000Ω
AC voltage measuring range: 0...750V
Body dimensions: 390x310x180mm
AC voltage measuring accuracy: ±(2% + 2 digit)
Resistance measuring accuracy: ±(2%+3 digit)
Temperature measurement accuracy: ±(3% + 8 digit)
Capacitance measuring accuracy: ±(5%+ 5 digit)
Test voltage: 50V; 100V; 250V; 500V; 1kV; 2.5kV; 5kV; 10kV
Insulation resistance measuring ranges: 10MΩ...40TΩ
Standard equipment: 3 crocodile clips 11kV, 32A (CAT IV 1000V); 10kV cable, 3m, (CAT IV 1000V) with banana plug sockets, blue; 11kV cable, 3m, (CAT IV 1000V) with banana plug sockets, black; 11kV cable, 3m, (CAT IV 1000V) with banana plug sockets, red; case; mains cable; manufacturer's calibration certificate; temperature probe Z555J; test probe x2; USB cable; user's manual
Measurement: AC voltage; capacitance; DC voltage; insulation resistance; leakage current; resistance

Hersteller: GOSSEN METRAWATT
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; analogue; VAC: 0÷2kV; VDC: 0÷2kV
Conform to the norm: CAT II 1000V; CAT III 600V; CAT IV 300V; DIN VDE 0413; EN 61010
Related items: GM-Z580A
Measuring instrument features: guard terminal for compensating surface current
Type of meter: insulation resistance
IP rating: IP52
DC voltage measuring range: 0...2kV
AC voltage measuring range: 0...2kV
Body dimensions: 290x250x140mm
DC voltage measuring accuracy: ±5%
AC voltage measuring accuracy: ±5%
Test voltage: 100V; 250V; 500V; 1kV; 1.5kV; 2kV; 2.5kV; 5kV
Insulation resistance measuring ranges: 100kΩ...1TΩ
Standard equipment: 2 crocodile clips; carrying strap; test leads; user's manual
Measurement: AC voltage; DC voltage; insulation resistance
Kind of display used: analogue
Power supply: battery LR20 D 1,5V x6
Kit contents: carrying case F2000; crocodile clips CAT III 1000V/ 5000V CAT I 16A x2; guard cable with plug and crocodile clip

Hersteller: GOSSEN METRAWATT
Category: Phase Sequence Indicators
Description: Tester: phase sequence; LED; 100÷690VAC; Freq: 45÷1000Hz; IP50
Conform to the norm: CAT II 600V; EN 61010
Measuring instrument features: testing for phase failure
Standard equipment: crocodile clip x1; test leads ( 3pcs.); test probe x3
Measurement: motor's rotation direction; phase sequence
Power supply: from tested wiring system
IP rating: IP50
Kind of display used: LED
Type of tester: phase sequence
Body dimensions: 70x105x38.5mm
Operating frequency: 45...1000Hz
Phase-to-phase voltage range for phase sequence indication: 100...690V AC; 100...690V AC
Weight without batteries: 300g

Hersteller: GOSSEN METRAWATT
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; LCD; Earthing R range: 150mΩ÷9999Ω; USB
Type of meter: appliance meter
Kind of display used: LCD
Earthing resistance measuring range: 150mΩ...9999Ω
Earthing resistance measuring accuracy: ±(5% + 3 digit)
RCD test: AC, B, B+, EV, A and F-type RCDs
AC voltage measuring range: 300mV...600V
AC voltage measuring accuracy: ±(2% + 1 digit)
Measurement: AC voltage; contact voltage without tripping the RCCB; earthing resistance; insulation resistance; phase sequence; RCD tripping current; RCD tripping time; votlage drop
Insulation resistance measuring ranges: 50kΩ...499MΩ
Insulation resistance measuring accuracy: ±(5% + 1digit)
Manufacturer series: PROFITEST
Interface: USB
IP rating: IP20 (probe); IP40
Conform to the norm: CAT III 600V; CAT IV 300V; EN 60529; EN 61010; EN 61326; EN 61557
Power supply: battery AA 1,5V x8
Measuring instrument features: automatic power-off; automatic setup / detection of measurement type / mains type; automatic test sequence; battery level indication; low battery indicator; multilanguage menu; simulation of operating states of electric vehicles at electric charging stations
Body dimensions: 330x260x90mm
Operating temperature: -5...50°C
Standard equipment: 2 crocodile clips; 2-pole measuring adapter with expansion cable; calibration certificate DAkkS; mains battery charger; protection cover; shoulder strap; USB cable; user's manual
Kit contents: angled PRO-Schuko; case; drum with 50m measurement cable; earth bars x1; fuse finder; probe kit; VARIO plug adapter set
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x8
Software: IZYTRONIQ BUSINESS Professional
Measurement memory: 50000
Test: N-PE reversal; residual current circuit breakers
