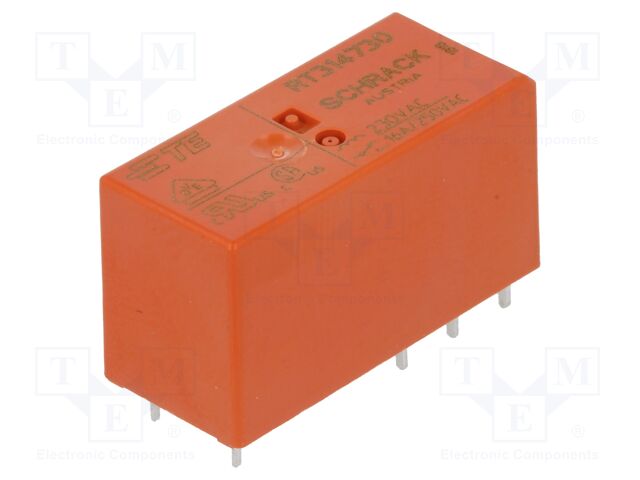

0-1393240-7 TE Connectivity
Hersteller: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 230VAC; Icontacts max: 16A
Operating temperature: -40...70°C
IP rating: IP40
Number of pins: 8
Contact material: AgNi
Coil resistance: 32.5kΩ
Contacts configuration: SPDT
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: RT/5
Rated coil voltage: 230V AC
Coil voltage min.: 172.5V AC
Coil power consumption: 0.75VA
Switched voltage: max. 300V DC; max. 400V AC
Contact current max.: 16A
Switching capacity: 3kVA
Max surge current: 25A
Terminal pitch: 5mm
Mechanical durability: 10000000 cycles
Mounting: THT
Body dimensions: 29x15.7x12.7mm
Height: 15.7mm
Anzahl je Verpackung: 1 Stücke
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 230VAC; Icontacts max: 16A
Operating temperature: -40...70°C
IP rating: IP40
Number of pins: 8
Contact material: AgNi
Coil resistance: 32.5kΩ
Contacts configuration: SPDT
AC contacts rating @R: 16A / 250V AC
DC contacts rating @R: 16A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Relay series: RT/5
Rated coil voltage: 230V AC
Coil voltage min.: 172.5V AC
Coil power consumption: 0.75VA
Switched voltage: max. 300V DC; max. 400V AC
Contact current max.: 16A
Switching capacity: 3kVA
Max surge current: 25A
Terminal pitch: 5mm
Mechanical durability: 10000000 cycles
Mounting: THT
Body dimensions: 29x15.7x12.7mm
Height: 15.7mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 999 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
9+ | 8.52 EUR |
13+ | 5.62 EUR |
14+ | 5.31 EUR |
500+ | 5.09 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 0-1393240-7 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 230VAC; Icontacts max: 16A, Operating temperature: -40...70°C, IP rating: IP40, Number of pins: 8, Contact material: AgNi, Coil resistance: 32.5kΩ, Contacts configuration: SPDT, AC contacts rating @R: 16A / 250V AC, DC contacts rating @R: 16A / 24V DC, Type of relay: electromagnetic, Relay variant: miniature, Relay series: RT/5, Rated coil voltage: 230V AC, Coil voltage min.: 172.5V AC, Coil power consumption: 0.75VA, Switched voltage: max. 300V DC; max. 400V AC, Contact current max.: 16A, Switching capacity: 3kVA, Max surge current: 25A, Terminal pitch: 5mm, Mechanical durability: 10000000 cycles, Mounting: THT, Body dimensions: 29x15.7x12.7mm, Height: 15.7mm, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 0-1393240-7 nach Preis ab 5.09 EUR bis 8.52 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0-1393240-7 | Hersteller : TE Connectivity |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 230VAC; Icontacts max: 16A Operating temperature: -40...70°C IP rating: IP40 Number of pins: 8 Contact material: AgNi Coil resistance: 32.5kΩ Contacts configuration: SPDT AC contacts rating @R: 16A / 250V AC DC contacts rating @R: 16A / 24V DC Type of relay: electromagnetic Relay variant: miniature Relay series: RT/5 Rated coil voltage: 230V AC Coil voltage min.: 172.5V AC Coil power consumption: 0.75VA Switched voltage: max. 300V DC; max. 400V AC Contact current max.: 16A Switching capacity: 3kVA Max surge current: 25A Terminal pitch: 5mm Mechanical durability: 10000000 cycles Mounting: THT Body dimensions: 29x15.7x12.7mm Height: 15.7mm |
auf Bestellung 999 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
0-1393240-7 | Hersteller : TE Connectivity Ltd. (Tyco Electronics) | RT314730 1FORMC обмотка 220VAC конт 250V/16A 29x12.7x15.7мм |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
