0878311420
Produktcode: 75689
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller:
Steckverbinder, Reihenklemmen > Steckverbindungen sonstige
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote 0878311420 nach Preis ab 1.74 EUR bis 3.01 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

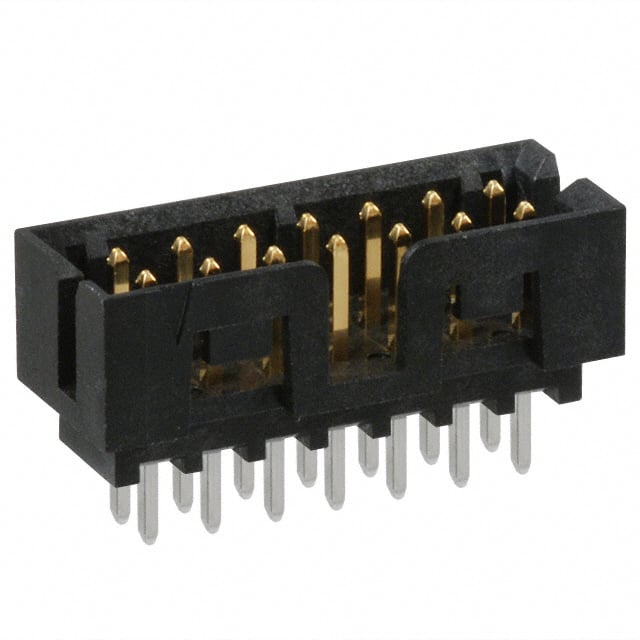

0878311420 | Molex |
Description: CONN HEADER VERT 14POS 2MM Packaging: Tube Features: Keying Slot Connector Type: Header Voltage Rating: 125V Current Rating (Amps): 2A Mounting Type: Through Hole Number of Positions: 14 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 105°C Contact Type: Male Pin Fastening Type: Latch Holder Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 15.0µin (0.38µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.098" (2.50mm) Insulation Height: 0.252" (6.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA), Nylon, Glass Filled Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.141" (3.60mm) |
auf Bestellung 63048 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
0878311420 | Molex |
Роз'єм 2-рядний, Вид = Вилка, К-сть конт. = 14, Крок, мм = 2, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: DIP Од. вим: шт Anzahl je Verpackung: 3200 Stücke |
verfügbar 108 Stücke: |
Mindestbestellmenge: 10 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 0878311420 |
|
Hersteller: Molex
Description: CONN HEADER VERT 14POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Voltage Rating: 125V
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.098" (2.50mm)
Insulation Height: 0.252" (6.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.141" (3.60mm)
Description: CONN HEADER VERT 14POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Voltage Rating: 125V
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.098" (2.50mm)
Insulation Height: 0.252" (6.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.141" (3.60mm)
auf Bestellung 63048 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 7+ | 3.01 EUR |
| 32+ | 2.37 EUR |
| 128+ | 2.14 EUR |
| 512+ | 1.94 EUR |
| 1024+ | 1.86 EUR |
| 5024+ | 1.74 EUR |
| 0878311420 |
|
Hersteller: Molex
Роз'єм 2-рядний, Вид = Вилка, К-сть конт. = 14, Крок, мм = 2, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: DIP Од. вим: шт
Anzahl je Verpackung: 3200 Stücke
Роз'єм 2-рядний, Вид = Вилка, К-сть конт. = 14, Крок, мм = 2, Тип монт. = на плату, В-нь між рядами = 2 мм,... Роз'єми Корпус: DIP Од. вим: шт
Anzahl je Verpackung: 3200 Stücke
verfügbar 108 Stücke:
