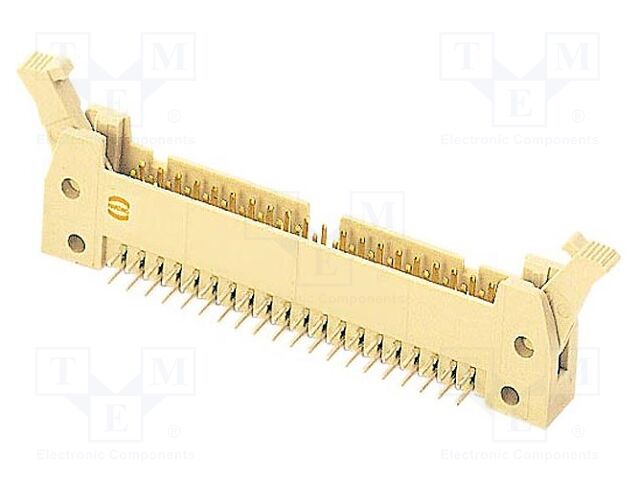

09185506903 HARTING
Hersteller: HARTINGCategory: IDC connectors
Description: Connector: IDC; socket; male; PIN: 50; SEK; angled; 1A; THT; 2.54mm
Operating temperature: -55...125°C
Flammability rating: UL94V-0
Body material: PBT
Number of pins: 50
Contact material: copper alloy
Connector pinout layout: 2x25
Connector variant: with ejector
Contacts pitch: 2.54mm
Body colour: grey
Electrical mounting: THT
Lead length: 2.9mm
Manufacturer series: SEK
Spatial orientation: angled
Engineering PN: SEK-18 SV MA STD ANG29 RLG 50P PL2
Type of connector: IDC
Connector: socket
Kind of connector: male
Mechanical durability: 250 cycles
Current rating: 1A
auf Bestellung 44 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 13+ | 5.66 EUR |
| 20+ | 3.72 EUR |
| 21+ | 3.52 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 09185506903 HARTING
Description: CONN HEADER R/A 50POS 2.54MM, Packaging: Tray, Features: Keying Slot, Mounting Flange, Connector Type: Header, Mounting Type: Through Hole, Right Angle, Number of Positions: 50, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Long, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Gray, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.114" (2.90mm), Insulation Height: 0.335" (8.51mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).
Weitere Produktangebote 09185506903 nach Preis ab 3.37 EUR bis 9.24 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
09185506903 | Hersteller : HARTING |
Category: IDC connectors Description: Connector: IDC; socket; male; PIN: 50; SEK; angled; 1A; THT; 2.54mm Operating temperature: -55...125°C Flammability rating: UL94V-0 Body material: PBT Number of pins: 50 Contact material: copper alloy Connector pinout layout: 2x25 Connector variant: with ejector Contacts pitch: 2.54mm Body colour: grey Electrical mounting: THT Lead length: 2.9mm Manufacturer series: SEK Spatial orientation: angled Engineering PN: SEK-18 SV MA STD ANG29 RLG 50P PL2 Type of connector: IDC Connector: socket Kind of connector: male Mechanical durability: 250 cycles Current rating: 1A Anzahl je Verpackung: 1 Stücke |
auf Bestellung 44 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||
 |
09185506903 | Hersteller : Harting |
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Side Entry Thru-Hole Carton |
auf Bestellung 342 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
|
|
09185506903 | Hersteller : Harting |
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Side Entry Thru-Hole Carton |
auf Bestellung 342 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
09185506903 | Hersteller : HARTING |
Description: CONN HEADER R/A 50POS 2.54MM Packaging: Tray Features: Keying Slot, Mounting Flange Connector Type: Header Mounting Type: Through Hole, Right Angle Number of Positions: 50 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks, Long Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Gray Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.114" (2.90mm) Insulation Height: 0.335" (8.51mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.240" (6.10mm) |
auf Bestellung 90 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
09185506903 | Hersteller : HARTING |
Headers & Wire Housings 50P MALE RA IDC LONG LEVERS |
auf Bestellung 127 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
09 18 550 6903 | Hersteller : HARTING |
Description: HARTING - 09 18 550 6903 - Stiftleiste, abgewinkelt, Wire-to-Board, 2.54 mm, 2 Reihe(n), 50 Kontakt(e) tariffCode: 85366990 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Messing usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 50Kontakt(e) euEccn: NLR Steckverbindersysteme: Wire-to-Board Steckverbindertyp: PCB-Stiftleiste Produktpalette: SEK 18 Series productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm |
auf Bestellung 19 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||
 |
09185506903 | Hersteller : Harting |
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Side Entry Thru-Hole Carton |
Produkt ist nicht verfügbar |
|||||||||||||
|
|
09185506903 | Hersteller : Harting |
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Side Entry Thru-Hole Carton |
Produkt ist nicht verfügbar |
