Produkte > HARTING > 09330162672
09330162672

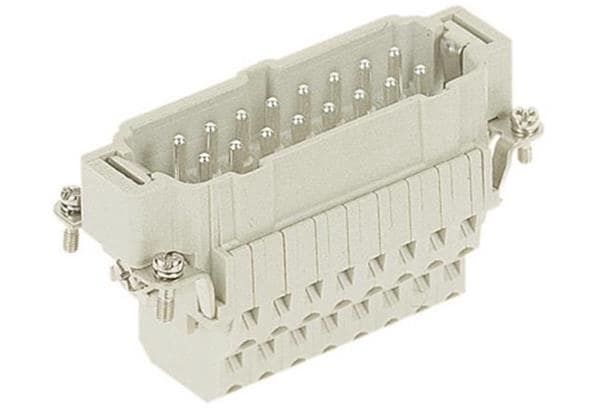

09330162672 HARTING

09330162672_100089129DRW005C.pdf Hersteller: HARTING
Description: INSERT MALE 16POS+1GND PUSH IN
Packaging: Bulk
Connector Type: Insert
Gender: Male
Voltage Rating: 500V
Current Rating (Amps): 16A
Number of Positions: 16+Ground
Operating Temperature: -40°C ~ 125°C
Termination Style: Push In
Size: 16b
Part Status: Active
auf Bestellung 4 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl Preis ohne MwSt
1+275.31 EUR
Produktrezensionen
Produktbewertung abgeben

Technische Details 09330162672 HARTING

Category: HARTING connectors, Description: Connector: HDC; contact insert; male; Han® ESS; PIN: 16; 16+PE; 16A, Number of pins: 16, Current rating: 16A, Mechanical durability: 500 cycles, Insert mounting: 77.5x27mm, Operating temperature: -40...125°C, Connector series: Han® ESS, Engineering PN: Han ESS 16 Pos. M Insert Double Cage Cla, Electrical mounting: spring clamp, Connector pinout layout: 16+PE, Type of connector: HDC, Wire cross-section: 0.14...2.5mm2, Insulator material: polycarbonate, Case: size 16B, Kind of connector: male, Connector: contact insert, Contact plating: silver plated, Rated voltage: 500V, Contact material: copper alloy, Flammability rating: UL94V-0, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 09330162672

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
09330162672 09330162672 Hersteller : HARTING TB_09330162672_BL01_R414268.pdf Category: HARTING connectors
Description: Connector: HDC; contact insert; male; Han® ESS; PIN: 16; 16+PE; 16A
Number of pins: 16
Current rating: 16A
Mechanical durability: 500 cycles
Insert mounting: 77.5x27mm
Operating temperature: -40...125°C
Connector series: Han® ESS
Engineering PN: Han ESS 16 Pos. M Insert Double Cage Cla
Electrical mounting: spring clamp
Connector pinout layout: 16+PE
Type of connector: HDC
Wire cross-section: 0.14...2.5mm2
Insulator material: polycarbonate
Case: size 16B
Kind of connector: male
Connector: contact insert
Contact plating: silver plated
Rated voltage: 500V
Contact material: copper alloy
Flammability rating: UL94V-0
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
09330162672 09330162672 Hersteller : HARTING PDF_DS_09330162672_EN-2478688.pdf Heavy Duty Power Connectors MALE INSERT HAN 16ESS CAGE CLMP
Produkt ist nicht verfügbar
09330162672 09330162672 Hersteller : HARTING TB_09330162672_BL01_R414268.pdf Category: HARTING connectors
Description: Connector: HDC; contact insert; male; Han® ESS; PIN: 16; 16+PE; 16A
Number of pins: 16
Current rating: 16A
Mechanical durability: 500 cycles
Insert mounting: 77.5x27mm
Operating temperature: -40...125°C
Connector series: Han® ESS
Engineering PN: Han ESS 16 Pos. M Insert Double Cage Cla
Electrical mounting: spring clamp
Connector pinout layout: 16+PE
Type of connector: HDC
Wire cross-section: 0.14...2.5mm2
Insulator material: polycarbonate
Case: size 16B
Kind of connector: male
Connector: contact insert
Contact plating: silver plated
Rated voltage: 500V
Contact material: copper alloy
Flammability rating: UL94V-0
Produkt ist nicht verfügbar
