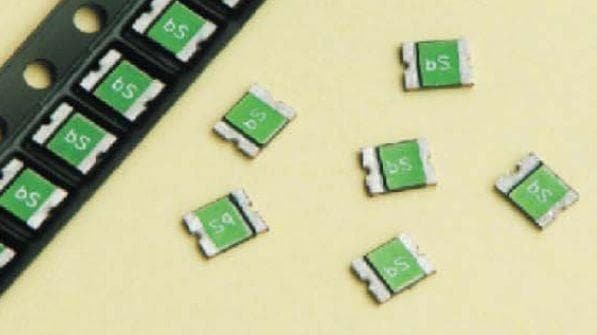

0ZCJ0025FF2E Bel Fuse Inc.
Hersteller: Bel Fuse Inc.Description: PTC RESET FUSE 16V 250MA 1206
Packaging: Tape & Reel (TR)
Package / Case: 1206 (3216 Metric), Concave
Size / Dimension: 0.128" L x 0.065" W (3.25mm x 1.65mm)
Mounting Type: Surface Mount
Type: Polymeric
Operating Temperature: -40°C ~ 85°C
Current - Hold (Ih) (Max): 250 mA
Current - Trip (It): 500 mA
Voltage - Max: 16V
Thickness (Max): 0.030" (0.75mm)
Current - Max: 100 A
Time to Trip: 80 ms
Resistance - Initial (Ri) (Min): 550 mOhms
Resistance - Post Trip (R1) (Max): 2.3 Ohms
Grade: Automotive
Qualification: AEC-Q200
auf Bestellung 63000 Stücke:
Lieferzeit 21-28 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 3000+ | 0.17 EUR |
| 6000+ | 0.16 EUR |
| 15000+ | 0.15 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 0ZCJ0025FF2E Bel Fuse Inc.
Description: PTC RESET FUSE 16V 250MA 1206, Packaging: Tape & Reel (TR), Package / Case: 1206 (3216 Metric), Concave, Size / Dimension: 0.128" L x 0.065" W (3.25mm x 1.65mm), Mounting Type: Surface Mount, Type: Polymeric, Operating Temperature: -40°C ~ 85°C, Current - Hold (Ih) (Max): 250 mA, Current - Trip (It): 500 mA, Voltage - Max: 16V, Thickness (Max): 0.030" (0.75mm), Current - Max: 100 A, Time to Trip: 80 ms, Resistance - Initial (Ri) (Min): 550 mOhms, Resistance - Post Trip (R1) (Max): 2.3 Ohms, Grade: Automotive, Qualification: AEC-Q200.
Weitere Produktangebote 0ZCJ0025FF2E nach Preis ab 0.084 EUR bis 0.39 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0ZCJ0025FF2E | Hersteller : BEL FUSE |
Category: SMD Polymer Fuses Description: Fuse: PTC polymer; 250mA; Imax: 100A; 0ZCJ; 1206 Type of fuse: PTC polymer Current rating: 0.25A Maximum current: 100A Switched current: 0.5A Max. voltage: 16V Power: 0.6W Min. resistance: 550mΩ Max resistance: 2.3Ω Manufacturer series: 0ZCJ Case: 1206 Operating temperature: -40...85°C Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1198 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||||
|
|
0ZCJ0025FF2E | Hersteller : BEL FUSE |
Category: SMD Polymer Fuses Description: Fuse: PTC polymer; 250mA; Imax: 100A; 0ZCJ; 1206 Type of fuse: PTC polymer Current rating: 0.25A Maximum current: 100A Switched current: 0.5A Max. voltage: 16V Power: 0.6W Min. resistance: 550mΩ Max resistance: 2.3Ω Manufacturer series: 0ZCJ Case: 1206 Operating temperature: -40...85°C |
auf Bestellung 1198 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||||
 |
0ZCJ0025FF2E | Hersteller : Bel Fuse |
Resettable Fuses - PPTC |
auf Bestellung 46262 Stücke: Lieferzeit 14-28 Tag (e) |
|
||||||||||||||||||
|
|
0ZCJ0025FF2E | Hersteller : Bel Fuse Inc. |
Description: PTC RESET FUSE 16V 250MA 1206 Packaging: Cut Tape (CT) Package / Case: 1206 (3216 Metric), Concave Size / Dimension: 0.128" L x 0.065" W (3.25mm x 1.65mm) Mounting Type: Surface Mount Type: Polymeric Operating Temperature: -40°C ~ 85°C Current - Hold (Ih) (Max): 250 mA Current - Trip (It): 500 mA Voltage - Max: 16V Thickness (Max): 0.030" (0.75mm) Current - Max: 100 A Time to Trip: 80 ms Resistance - Initial (Ri) (Min): 550 mOhms Resistance - Post Trip (R1) (Max): 2.3 Ohms Grade: Automotive Qualification: AEC-Q200 |
auf Bestellung 65378 Stücke: Lieferzeit 21-28 Tag (e) |
|
||||||||||||||||||
 |
0ZCJ0025FF2E | Hersteller : BEL FUSE |
Description: BEL FUSE - 0ZCJ0025FF2E - FUSE, RESETTABLE PTC, 16VDC, 0.25A, SMD tariffCode: 85361010 Zeit zur Auslösung: 0 rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES Nennstrom, max.: 0 usEccn: EAR99 Haltestrom: 0 Betriebstemperatur, min.: 0 euEccn: NLR PPTC-Bauform: 1206 (3216 Metric) Qualifizierungsstandard der Automobilindustrie: 0 Auslösestrom: 0 Produktpalette: 0ZCJ Series productTraceability: No Nennspannung: 0 Betriebstemperatur, max.: 0 directShipCharge: 25 SVHC: No SVHC (10-Jun-2022) |
auf Bestellung 2978 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||||
|
0ZCJ0025FF2E PTC RESET FUSE 16V 250MA 1206 Produktcode: 189992 |
Sicherungen > Sicherungen SMD |
Produkt ist nicht verfügbar
|
|||||||||||||||||||||
 |
0ZCJ0025FF2E | Hersteller : BEL Stewart Connector |
PTC Resettable Fuse 0.25A(hold) 0.5A(trip) 16VDC 100A 0.6W 0.08s 0.55Ohm SMD Solder Pad 1206 T/R Automotive |
Produkt ist nicht verfügbar |
