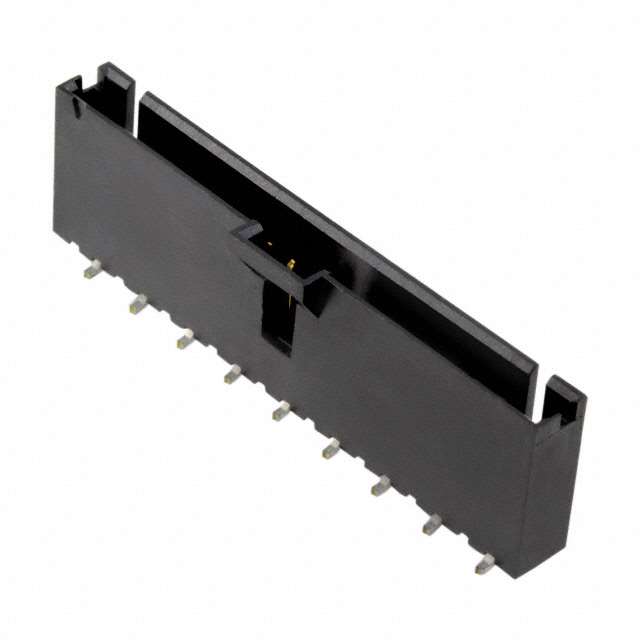

1-1375583-7 TE Connectivity AMP Connectors

Description: CONN HEADER SMD 18POS 2.54MM, Features: Board Lock, Keying Slot, Packaging: Tape & Reel (TR), Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Surface Mount, Number of Positions: 18, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin-Lead, Contact Shape: Square, Insulation Height: 0.535" (13.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Contact Length - Mating: 0.230" (5.84mm).
