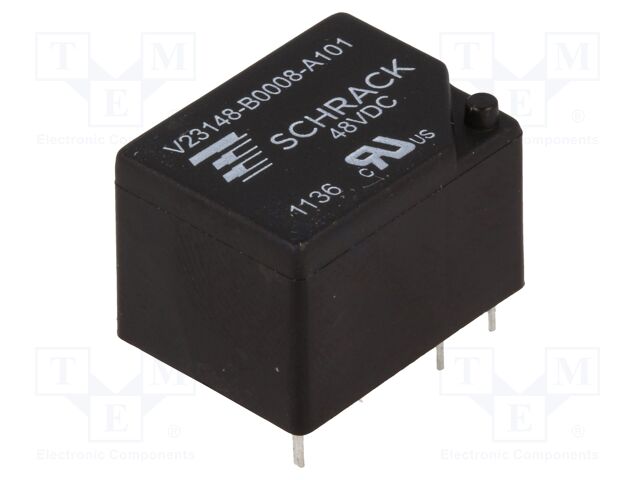

1-1393204-3 TE Connectivity
Hersteller: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 48VDC; 7A; 7A/250VAC; 7A/24VDC
Operating temperature: -25...70°C
Relay variant: bistable; miniature
Type of relay: electromagnetic
Mounting: PCB
Release time: 3ms
Operate time: 5ms
Terminal pitch: 5.08mm
Body dimensions: 21.2x16.2x14.9mm
Coil power consumption: 606mW
Contact current max.: 7A
DC contacts rating @R: 7A / 24V DC
AC contacts rating @R: 7A / 250V AC
Rated coil voltage: 48V DC
Switched voltage: max. 60V DC; max. 400V AC
Coil resistance: 3.8kΩ
Switching capacity: 1.75kVA
Manufacturer series: UB
Contacts configuration: SPDT
Contact material: AgNi 90/10
| Anzahl | Preis |
|---|---|
| 4+ | 20.06 EUR |
| 5+ | 18.83 EUR |
| 10+ | 18.08 EUR |
| 25+ | 17.7 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1-1393204-3 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 48VDC; 7A; 7A/250VAC; 7A/24VDC, Operating temperature: -25...70°C, Relay variant: bistable; miniature, Type of relay: electromagnetic, Mounting: PCB, Release time: 3ms, Operate time: 5ms, Terminal pitch: 5.08mm, Body dimensions: 21.2x16.2x14.9mm, Coil power consumption: 606mW, Contact current max.: 7A, DC contacts rating @R: 7A / 24V DC, AC contacts rating @R: 7A / 250V AC, Rated coil voltage: 48V DC, Switched voltage: max. 60V DC; max. 400V AC, Coil resistance: 3.8kΩ, Switching capacity: 1.75kVA, Manufacturer series: UB, Contacts configuration: SPDT, Contact material: AgNi 90/10.
Weitere Produktangebote 1-1393204-3 nach Preis ab 23.27 EUR bis 24.64 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1-1393204-3 | Hersteller : TE Connectivity Potter & Brumfield Relays |
Description: V23148-B0008-A101 Packaging: Tube Part Status: Active |
auf Bestellung 261 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
1-1393204-3 | Hersteller : TE CONNECTIVITY - SCHRACK |
Description: TE CONNECTIVITY - SCHRACK - 1-1393204-3 - Leistungsrelais, SPDT, 48 VDC, 7 A, U/UB Series, Durchsteckmontage, Bistabile Einzelspule tariffCode: 85364190 rohsCompliant: YES Relaisanschlüsse: Lötanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: Bistabile Einzelspule Kontaktmaterial: Silber-Nickel isCanonical: Y Kontaktstrom: 7A usEccn: EAR99 Spulenwiderstand: 1.75kohm euEccn: NLR Kontaktspannung V DC: - Relaismontage: Durchsteckmontage Produktpalette: U/UB Series productTraceability: No Spulenspannung: 48VDC Kontaktkonfiguration: SPDT Kontaktspannung V AC: 250V SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 354 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||
|
|
1-1393204-3 | Hersteller : TE CONNECTIVITY / PARTNER STOCK |
Description: TE CONNECTIVITY / PARTNER STOCK - 1-1393204-3 - Leistungsrelais, SPDT, 48 VDC, 7 A, U/UB Series, Durchsteckmontage, Bistabile Einzelspule tariffCode: 85364900 rohsCompliant: YES Relaisanschlüsse: Lötanschlüsse hazardous: false rohsPhthalatesCompliant: YES Spulentyp: Bistabile Einzelspule Kontaktmaterial: Silber-Nickel isCanonical: Y Kontaktstrom: 7A usEccn: EAR99 Spulenwiderstand: 1.75kohm euEccn: NLR Kontaktspannung V DC: - Relaismontage: Durchsteckmontage Produktpalette: U/UB Series productTraceability: Yes-Date/Lot Code Spulenspannung: 48VDC Kontaktkonfiguration: SPDT Kontaktspannung V AC: 250V SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 617 Stücke: Lieferzeit 14-21 Tag (e) |
