1-1393238-9

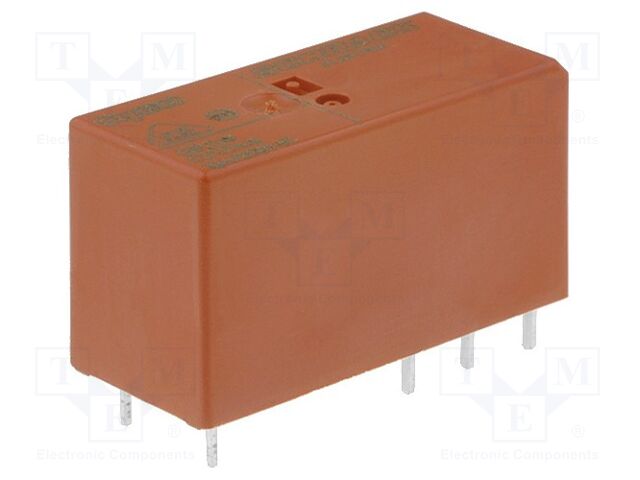

1-1393238-9 TE Connectivity

pVersion=0046&contRep=ZT&docId=E1C056EE3FBA33F1A6F5005056AB5A8F&compId=RT1.pdf?ci_sign=b326e2193a54e361ec36b4911e7864708cae9a19 Hersteller: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 12A
Manufacturer series: RT1
IP rating: IP67
Contacts configuration: SPDT
Operating temperature: -40...70°C
Body dimensions: 29x15.7x12.7mm
Height: 15.7mm
Number of pins: 5
Contact material: AgNi
Coil resistance: 1.44kΩ
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 24V DC
Coil voltage min.: 16.8V DC
Coil power consumption: 400mW
Switched voltage: max. 300V DC; max. 400V AC
Contact current max.: 12A
Switching capacity: 3kVA
Max surge current: 25A
Mounting: THT
Mechanical durability: 30000000 cycles
Terminal pitch: 3.5mm
auf Bestellung 67 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
15+5.08 EUR
16+4.62 EUR
22+3.35 EUR
23+3.16 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 1-1393238-9 TE Connectivity

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 12A, Manufacturer series: RT1, IP rating: IP67, Contacts configuration: SPDT, Operating temperature: -40...70°C, Body dimensions: 29x15.7x12.7mm, Height: 15.7mm, Number of pins: 5, Contact material: AgNi, Coil resistance: 1.44kΩ, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 24V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 24V DC, Coil voltage min.: 16.8V DC, Coil power consumption: 400mW, Switched voltage: max. 300V DC; max. 400V AC, Contact current max.: 12A, Switching capacity: 3kVA, Max surge current: 25A, Mounting: THT, Mechanical durability: 30000000 cycles, Terminal pitch: 3.5mm, Anzahl je Verpackung: 1 Stücke.
