Produkte > TE CONNECTIVITY > 1-1825137-6
1-1825137-6

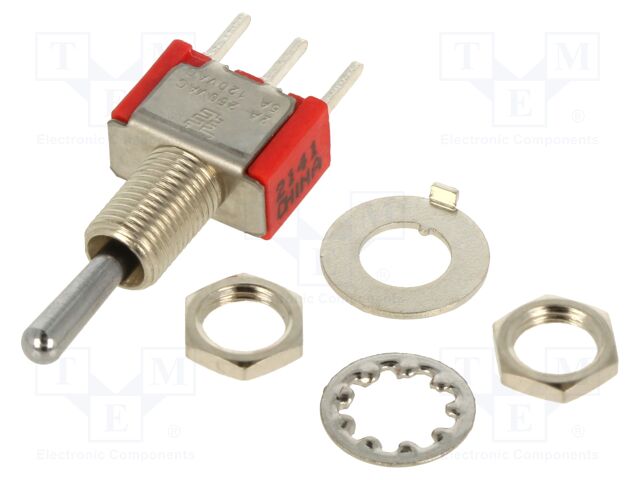

1-1825137-6 TE Connectivity


pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA2D58C7AC279E0C4&compId=1-1825137-6%20datasheet.pdf?ci_sign=a22dac48b459ee2d80e2b5b956c6c486f2f02cb5 pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA2D58C7AC27AE0C4&compId=1-1825137-6%20layout.pdf?ci_sign=0b8ab52318a2ba916ab765b06aca49db6c034b7c Hersteller: TE Connectivity
Category: Toggle Switches
Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 2A/250VAC; 5A/28VDC; 10mΩ
Type of switch: toggle
Contacts configuration: SP3T
Switching method: ON-OFF-ON
Manufacturer series: Gemini A
Operating temperature: -30...85°C
Max. contact resistance:: 10mΩ
Mounting: THT
Dimensions: 12.7x6.9x8.9mm
Number of positions: 3
Shape: rectangular
Contact plating: silver plated
Leads: for PCB
Contact material: copper
AC contacts rating @R: 2A / 250V AC
DC contacts rating @R: 5A / 28V DC
Stable positions number: 3
Illumination: none
Anzahl je Verpackung: 1 Stücke
auf Bestellung 105 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
14+5.38 EUR
15+4.86 EUR
16+4.59 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 1-1825137-6 TE Connectivity

Category: Toggle Switches, Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 2A/250VAC; 5A/28VDC; 10mΩ, Type of switch: toggle, Contacts configuration: SP3T, Switching method: ON-OFF-ON, Manufacturer series: Gemini A, Operating temperature: -30...85°C, Max. contact resistance:: 10mΩ, Mounting: THT, Dimensions: 12.7x6.9x8.9mm, Number of positions: 3, Shape: rectangular, Contact plating: silver plated, Leads: for PCB, Contact material: copper, AC contacts rating @R: 2A / 250V AC, DC contacts rating @R: 5A / 28V DC, Stable positions number: 3, Illumination: none, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 1-1825137-6 nach Preis ab 4.59 EUR bis 7.53 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
1-1825137-6 1-1825137-6 Hersteller : TE Connectivity pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA2D58C7AC279E0C4&compId=1-1825137-6%20datasheet.pdf?ci_sign=a22dac48b459ee2d80e2b5b956c6c486f2f02cb5 pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA2D58C7AC27AE0C4&compId=1-1825137-6%20layout.pdf?ci_sign=0b8ab52318a2ba916ab765b06aca49db6c034b7c Category: Toggle Switches
Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 2A/250VAC; 5A/28VDC; 10mΩ
Type of switch: toggle
Contacts configuration: SP3T
Switching method: ON-OFF-ON
Manufacturer series: Gemini A
Operating temperature: -30...85°C
Max. contact resistance:: 10mΩ
Mounting: THT
Dimensions: 12.7x6.9x8.9mm
Number of positions: 3
Shape: rectangular
Contact plating: silver plated
Leads: for PCB
Contact material: copper
AC contacts rating @R: 2A / 250V AC
DC contacts rating @R: 5A / 28V DC
Stable positions number: 3
Illumination: none
auf Bestellung 105 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
14+5.38 EUR
15+4.86 EUR
16+4.59 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
1-1825137-6 1-1825137-6 Hersteller : TE Connectivity ALCOSWITCH Switches DDEController?Action=srchrtrv&DocNm=2-1773458-5_GEMINI_SERIES_SWITCHES_QRG&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=1-1825137-6 Description: SWITCH TOGGLE SPDT 5A 120V
Features: Epoxy Sealed Terminals
Packaging: Bulk
Current Rating (Amps): 5A (AC/DC)
Mounting Type: Panel Mount
Circuit: SPDT
Switch Function: On-Off-On
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: 1/4-40
Actuator Length: 10.41mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 6.35mm Dia
Part Status: Active
Voltage Rating - AC: 120 V
Voltage Rating - DC: 28 V
auf Bestellung 388 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+7.44 EUR
10+6.42 EUR
25+6.06 EUR
50+5.80 EUR
100+5.54 EUR
300+5.17 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
1-1825137-6 1-1825137-6 Hersteller : TE Connectivity / P&B ENG_CD_1825137_A8-2020974.pdf Toggle Switches A103SYCQ04
auf Bestellung 765 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+7.53 EUR
10+5.65 EUR
100+5.53 EUR
200+5.40 EUR
500+5.24 EUR
1000+5.19 EUR
Im Einkaufswagen  Stück im Wert von  UAH
1-1825137-6 1-1825137-6 Hersteller : TE Connectivity eng_cs_1308111-1_switches_core_program_catalog_0308.pdf Switch Toggle ON OFF ON SPDT Long Baton Lever PC Pins 5A 250VAC 28VDC PC Mount with Threads Bulk
