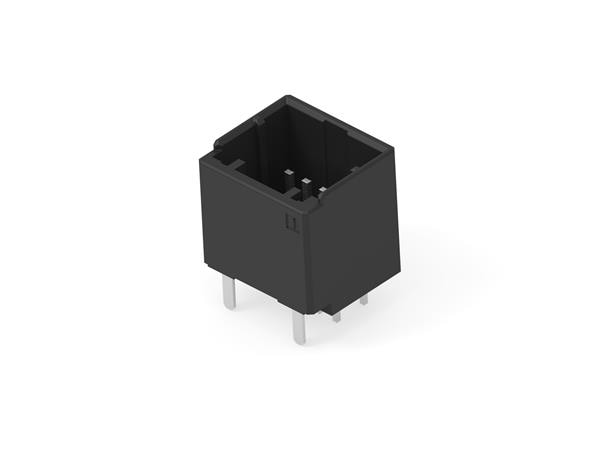

1-2379285-5 TE Connectivity AMP Connectors
Hersteller: TE Connectivity AMP ConnectorsDescription: D1100 HDR ASSY V 10P XBLACK PRE-
Packaging: Tube
Features: Board Guide
Connector Type: Header
Voltage Rating: 50VAC
Current Rating (Amps): 0.5A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.490" (12.44mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic, Polyester, Glass Filled
Row Spacing - Mating: 0.130" (3.30mm)
auf Bestellung 1802 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 4.12 EUR |
| 37+ | 3.19 EUR |
| 111+ | 2.95 EUR |
| 518+ | 2.65 EUR |
| 1036+ | 2.52 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1-2379285-5 TE Connectivity AMP Connectors
Description: D1100 HDR ASSY V 10P XBLACK PRE-, Packaging: Tube, Features: Board Guide, Connector Type: Header, Voltage Rating: 50VAC, Current Rating (Amps): 0.5A, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.120" (3.05mm), Insulation Height: 0.490" (12.44mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Polyester, Glass Filled, Row Spacing - Mating: 0.130" (3.30mm).
