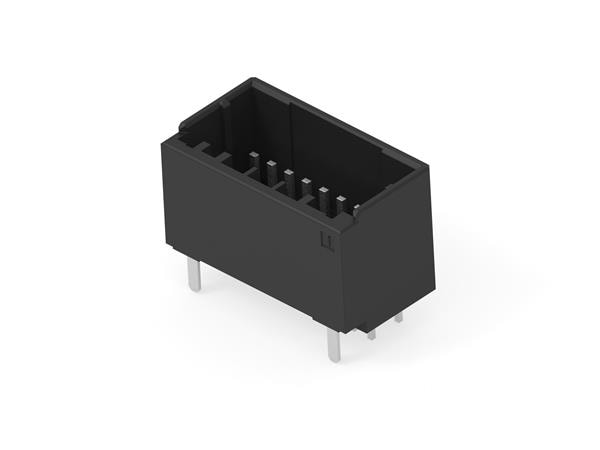

1-2379285-9 TE Connectivity AMP Connectors

Description: D1100 HDR ASSY V 18P XBLACK PRE-, Contact Finish - Post: Tin, Contact Finish - Mating: Tin, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black, Contact Material: Copper Alloy, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 85°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 18, Mounting Type: Through Hole, Current Rating (Amps): 0.5A, Voltage Rating: 50VAC, Connector Type: Header, Features: Board Guide, Packaging: Tube, Row Spacing - Mating: 0.130" (3.30mm), Insulation Material: Thermoplastic, Polyester, Glass Filled, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.490" (12.44mm), Contact Length - Post: 0.120" (3.05mm), Contact Shape: Square.
