1-281695-2

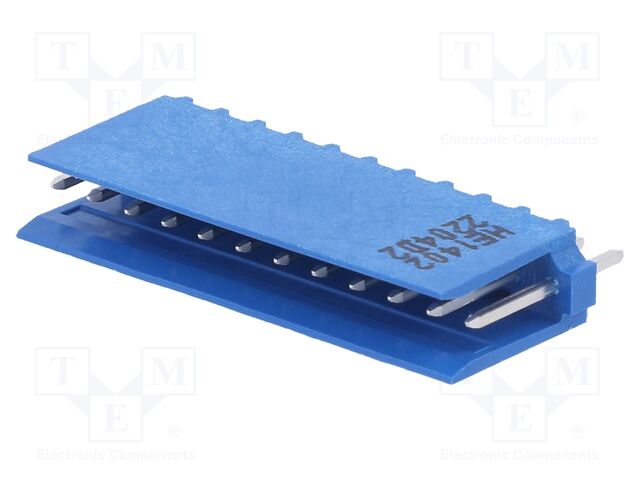

1-281695-2 TE Connectivity

DDEController?Action=srchrtrv&DocNm=281695&DocType=Customer+Drawing&DocLang=English Hersteller: TE Connectivity
Category: Raster signal connectors 2,54mm
Description: Socket; wire-board; male; HE14; 2.54mm; PIN: 12; straight; THT; 3A
Flammability rating: UL94V-0
Number of pins: 12
Contact material: phosphor bronze
Connector series: HE14
Connector pinout layout: 2x12
Connector variant: straight
Contacts pitch: 2.54mm
Type of connector: wire-board
Connector: socket
Kind of connector: male
Mounting: THT
Current rating: 3A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 19 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
17+4.42 EUR
19+ 3.76 EUR
20+ 3.58 EUR
Mindestbestellmenge: 17
Produktrezensionen
Produktbewertung abgeben

Technische Details 1-281695-2 TE Connectivity

Description: CONN HEADER VERT 12POS 2.54MM, Packaging: Bulk, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 12, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 100°C, Contact Type: Male Pin, Fastening Type: Friction Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Blue, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.114" (2.90mm), Insulation Height: 0.449" (11.40mm), Shrouding: Shrouded - 2 Wall, Overall Contact Length: 0.492" (12.50mm), Insulation Material: Thermoplastic, Contact Length - Mating: 0.276" (7.00mm).

Weitere Produktangebote 1-281695-2 nach Preis ab 3.76 EUR bis 6.58 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
1-281695-2 1-281695-2 Hersteller : TE Connectivity DDEController?Action=srchrtrv&DocNm=281695&DocType=Customer+Drawing&DocLang=English Category: Raster signal connectors 2,54mm
Description: Socket; wire-board; male; HE14; 2.54mm; PIN: 12; straight; THT; 3A
Flammability rating: UL94V-0
Number of pins: 12
Contact material: phosphor bronze
Connector series: HE14
Connector pinout layout: 2x12
Connector variant: straight
Contacts pitch: 2.54mm
Type of connector: wire-board
Connector: socket
Kind of connector: male
Mounting: THT
Current rating: 3A
auf Bestellung 19 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis ohne MwSt
17+4.42 EUR
19+ 3.76 EUR
Mindestbestellmenge: 17
1-281695-2 1-281695-2 Hersteller : TE Connectivity ENG_CD_281695_K1-2035534.pdf Headers & Wire Housings HEADER VERT 12 POS HE14
auf Bestellung 1715 Stücke:
Lieferzeit 14-28 Tag (e)
Anzahl Preis ohne MwSt
8+6.5 EUR
10+ 5.8 EUR
100+ 5.2 EUR
250+ 5.07 EUR
500+ 4.89 EUR
1000+ 4.26 EUR
3000+ 3.98 EUR
Mindestbestellmenge: 8
1-281695-2 1-281695-2 Hersteller : TE Connectivity AMP Connectors DDEController?Action=srchrtrv&DocNm=281695&DocType=Customer+Drawing&DocLang=English Description: CONN HEADER VERT 12POS 2.54MM
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 100°C
Contact Type: Male Pin
Fastening Type: Friction Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Blue
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.449" (11.40mm)
Shrouding: Shrouded - 2 Wall
Overall Contact Length: 0.492" (12.50mm)
Insulation Material: Thermoplastic
Contact Length - Mating: 0.276" (7.00mm)
auf Bestellung 45 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl Preis ohne MwSt
4+6.58 EUR
10+ 5.86 EUR
Mindestbestellmenge: 4
1-281695-2 1-281695-2 Hersteller : AMP - TE CONNECTIVITY 579624.pdf Description: AMP - TE CONNECTIVITY - 1-281695-2 - Stiftleiste, vertikal, Wire-to-Board, 2.54 mm, 1 Reihe(n), 12 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 12Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Produktpalette: AMPMODU HE14
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (14-Jun-2023)
auf Bestellung 5033 Stücke:
Lieferzeit 14-21 Tag (e)
1-281695-2 1-281695-2 Hersteller : TE Connectivity 339432048047324339431418965102eng_cd_281695_k1.pdf Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Box
Produkt ist nicht verfügbar
