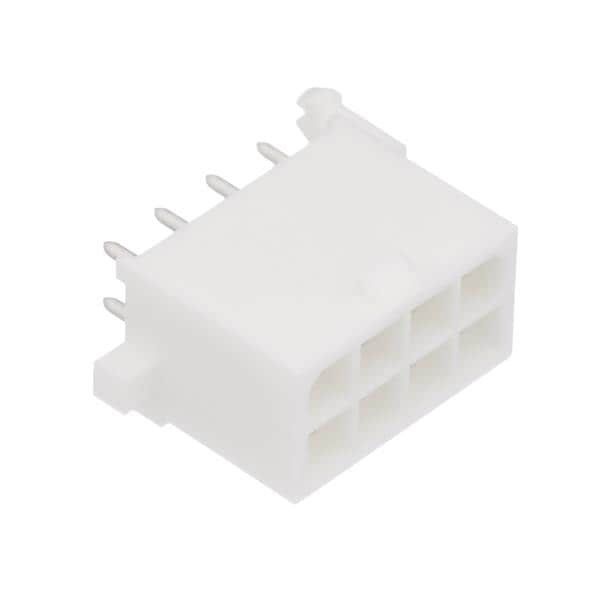

1-794073-0 TE Connectivity
Hersteller: TE Connectivity
Category: Raster signal connectors 4,14mm
Description: Connector: wire-board; socket; male; PIN: 8; 600V; straight; THT
Spatial orientation: straight
Electrical mounting: THT
Kind of connector: male
Mechanical mounting: on PCBs; PCB snap
Locking system: latch
Contact plating: tinned
Connector variant: sealed
Manufacturer series: Mini Universal MATE-N-LOK
Type of connector: wire-board
Connector: socket
Contacts pitch: 4.14mm
Current rating: 9.5A
Number of pins: 8
Rated voltage: 0.6kV
Connector pinout layout: 2x4
| Anzahl | Preis |
|---|---|
| 35+ | 2.04 EUR |
| 42+ | 1.72 EUR |
| 45+ | 1.6 EUR |
| 50+ | 1.52 EUR |
| 70+ | 1.49 EUR |
| 100+ | 1.44 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1-794073-0 TE Connectivity
Description: CONN HEADER VERT 8POS 4.14MM, Features: Board Lock, Packaging: Bulk, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 8, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -20°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: White, Pitch - Mating: 0.163" (4.14mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 150.0µin (3.81µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.175" (4.45mm), Insulation Height: 0.531" (13.50mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.163" (4.14mm).
Weitere Produktangebote 1-794073-0 nach Preis ab 1.66 EUR bis 2.97 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1-794073-0 | TE Connectivity AMP Connectors |
Description: CONN HEADER VERT 8POS 4.14MM Features: Board Lock Packaging: Bulk Connector Type: Header Voltage Rating: 600VAC Current Rating (Amps): Varies by Wire Gauge Mounting Type: Through Hole Number of Positions: 8 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -20°C ~ 85°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: White Pitch - Mating: 0.163" (4.14mm) Contact Finish - Mating: Tin Contact Finish Thickness - Mating: 150.0µin (3.81µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.175" (4.45mm) Insulation Height: 0.531" (13.50mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA), Nylon Row Spacing - Mating: 0.163" (4.14mm) |
auf Bestellung 1586 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
1-794073-0 | TE Connectivity / AMP |
Pin & Socket Connectors HEADER 8 POS TIN DUAL ROW |
auf Bestellung 1589 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 1-794073-0 |
|
Hersteller: TE Connectivity AMP Connectors
Description: CONN HEADER VERT 8POS 4.14MM
Features: Board Lock
Packaging: Bulk
Connector Type: Header
Voltage Rating: 600VAC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -20°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: White
Pitch - Mating: 0.163" (4.14mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 150.0µin (3.81µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.175" (4.45mm)
Insulation Height: 0.531" (13.50mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.163" (4.14mm)
Description: CONN HEADER VERT 8POS 4.14MM
Features: Board Lock
Packaging: Bulk
Connector Type: Header
Voltage Rating: 600VAC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -20°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: White
Pitch - Mating: 0.163" (4.14mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 150.0µin (3.81µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.175" (4.45mm)
Insulation Height: 0.531" (13.50mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.163" (4.14mm)
auf Bestellung 1586 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 7+ | 2.89 EUR |
| 10+ | 2.45 EUR |
| 200+ | 1.98 EUR |
| 600+ | 1.84 EUR |
| 1000+ | 1.77 EUR |
| 1-794073-0 |
|
Hersteller: TE Connectivity / AMP
Pin & Socket Connectors HEADER 8 POS TIN DUAL ROW
Pin & Socket Connectors HEADER 8 POS TIN DUAL ROW
auf Bestellung 1589 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 1+ | 2.97 EUR |
| 10+ | 2.69 EUR |
| 100+ | 2.38 EUR |
| 200+ | 2.04 EUR |
| 600+ | 1.88 EUR |
| 1000+ | 1.78 EUR |
| 5000+ | 1.66 EUR |
