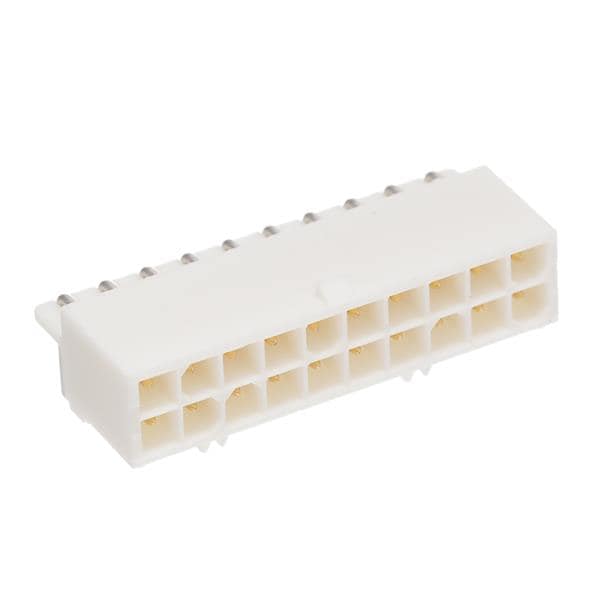

1-794106-1 TE Connectivity AMP Connectors
Hersteller: TE Connectivity AMP Connectors
Description: CONN HEADER R/A 20POS 4.14MM
Features: Board Lock
Packaging: Bulk
Connector Type: Header
Voltage Rating: 600VAC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -20°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: White
Pitch - Mating: 0.163" (4.14mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.145" (3.68mm)
Insulation Height: 0.386" (9.80mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.163" (4.14mm)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 26.93 EUR |
| 10+ | 26.38 EUR |
| 100+ | 22.04 EUR |
| 500+ | 19.09 EUR |
| 1000+ | 18.94 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details 1-794106-1 TE Connectivity AMP Connectors
Description: CONN HEADER R/A 20POS 4.14MM, Features: Board Lock, Packaging: Bulk, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Right Angle, Number of Positions: 20, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -20°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: White, Pitch - Mating: 0.163" (4.14mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.145" (3.68mm), Insulation Height: 0.386" (9.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.163" (4.14mm).
Weitere Produktangebote 1-794106-1 nach Preis ab 25.53 EUR bis 39.69 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1-794106-1 | TE Connectivity / AMP |
Pin & Socket Connectors HEADER 20 POS R/A GOLD DUAL ROW |
auf Bestellung 380 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| 1-794106-1 | TE Connectivity |
Category: Raster signal connectors 4,14mm Description: Connector: wire-board; plug; PIN: 20; Mini Universal MATE-N-LOK Spatial orientation: angled Rated voltage: 0.6kV Maximum current: 9.5A Contact material: brass Manufacturer series: Mini Universal MATE-N-LOK Flammability rating: UL94V-0 Connector variant: shrouded Contacts pitch: 4.14mm Number of pins: 20 Current rating: 9.5A Body colour: white Operating temperature: -20...105°C Mechanical mounting: on PCBs Body material: polyamide Electrical mounting: THT Connector pinout layout: 2x10 Type of connector: wire-board Max. voltage: 600V DC Connector: plug Contact plating: gold-plated |
auf Bestellung 139 Stücke: Lieferzeit 14-21 Tag (e) |
Mindestbestellmenge: 5 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 1-794106-1 |
|
Hersteller: TE Connectivity / AMP
Pin & Socket Connectors HEADER 20 POS R/A GOLD DUAL ROW
Pin & Socket Connectors HEADER 20 POS R/A GOLD DUAL ROW
auf Bestellung 380 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 39.69 EUR |
| 10+ | 33.72 EUR |
| 25+ | 32.49 EUR |
| 50+ | 30.95 EUR |
| 100+ | 27.36 EUR |
| 200+ | 25.93 EUR |
| 600+ | 25.53 EUR |
| 1-794106-1 |
|
Hersteller: TE Connectivity
Category: Raster signal connectors 4,14mm
Description: Connector: wire-board; plug; PIN: 20; Mini Universal MATE-N-LOK
Spatial orientation: angled
Rated voltage: 0.6kV
Maximum current: 9.5A
Contact material: brass
Manufacturer series: Mini Universal MATE-N-LOK
Flammability rating: UL94V-0
Connector variant: shrouded
Contacts pitch: 4.14mm
Number of pins: 20
Current rating: 9.5A
Body colour: white
Operating temperature: -20...105°C
Mechanical mounting: on PCBs
Body material: polyamide
Electrical mounting: THT
Connector pinout layout: 2x10
Type of connector: wire-board
Max. voltage: 600V DC
Connector: plug
Contact plating: gold-plated
Category: Raster signal connectors 4,14mm
Description: Connector: wire-board; plug; PIN: 20; Mini Universal MATE-N-LOK
Spatial orientation: angled
Rated voltage: 0.6kV
Maximum current: 9.5A
Contact material: brass
Manufacturer series: Mini Universal MATE-N-LOK
Flammability rating: UL94V-0
Connector variant: shrouded
Contacts pitch: 4.14mm
Number of pins: 20
Current rating: 9.5A
Body colour: white
Operating temperature: -20...105°C
Mechanical mounting: on PCBs
Body material: polyamide
Electrical mounting: THT
Connector pinout layout: 2x10
Type of connector: wire-board
Max. voltage: 600V DC
Connector: plug
Contact plating: gold-plated
auf Bestellung 139 Stücke:
Lieferzeit 14-21 Tag (e)
