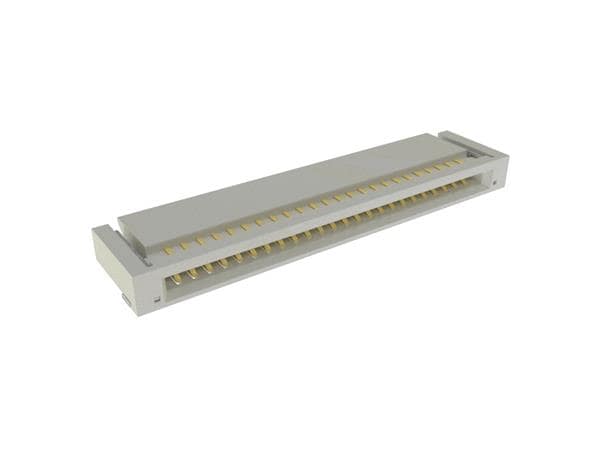

10051922-2410EHLF Amphenol ICC (FCI)
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Part Status: Active
Connector/Contact Type: Contacts, Bottom
Flat Flex Type: FPC
Cable End Type: Straight
Contact Material: Copper Alloy
Actuator Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Material Flammability Rating: UL94 V-0
Locking Feature: Slide Lock
Height Above Board: 0.051" (1.30mm)
Termination: Solder
Operating Temperature: -55°C ~ 85°C
Pitch: 0.020" (0.50mm)
Number of Positions: 24
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 50V
Contact Finish: Gold
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
FFC, FCB Thickness: 0.30mm
Produktrezensionen
Produktbewertung abgeben
Technische Details 10051922-2410EHLF Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 24POS 0.5MM R/A, Part Status: Active, Connector/Contact Type: Contacts, Bottom, Flat Flex Type: FPC, Cable End Type: Straight, Contact Material: Copper Alloy, Actuator Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, Material Flammability Rating: UL94 V-0, Locking Feature: Slide Lock, Height Above Board: 0.051" (1.30mm), Termination: Solder, Operating Temperature: -55°C ~ 85°C, Pitch: 0.020" (0.50mm), Number of Positions: 24, Mounting Type: Surface Mount, Right Angle, Voltage Rating: 50V, Contact Finish: Gold, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free, FFC, FCB Thickness: 0.30mm.
Weitere Produktangebote 10051922-2410EHLF nach Preis ab 0.54 EUR bis 0.98 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
10051922-2410EHLF | Amphenol ICC (FCI) |
Description: CONN FPC BOTTOM 24POS 0.5MM R/A Actuator Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free Material Flammability Rating: UL94 V-0 Locking Feature: Slide Lock Height Above Board: 0.051" (1.30mm) Termination: Solder Operating Temperature: -55°C ~ 85°C Pitch: 0.020" (0.50mm) Number of Positions: 24 Mounting Type: Surface Mount, Right Angle Voltage Rating: 50V Contact Finish: Gold Features: Solder Retention, Zero Insertion Force (ZIF) Packaging: Cut Tape (CT) Part Status: Active Connector/Contact Type: Contacts, Bottom Flat Flex Type: FPC Cable End Type: Straight Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free FFC, FCB Thickness: 0.30mm Contact Material: Copper Alloy |
auf Bestellung 7965 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
10051922-2410EHLF | Amphenol FCI |
FFC & FPC Connectors 0.50mm Flex Connector, VLL Series, 24 Position, Lower Side Contact, Side Entry Surface Mount ZIF Connector, Halogen-free & Lead Free Type. |
auf Bestellung 4314 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
10051922-2410EHLF | AMPHENOL COMMUNICATIONS SOLUTIONS |
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 10051922-2410EHLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI VLL 10051922 Series tariffCode: 85366930 rohsCompliant: YES FFC/FPC-Dicke: 0.3mm Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupferlegierung isCanonical: Y Ausführung: Buchse usEccn: EAR99 Anzahl der Kontakte: 24Kontakt(e) euEccn: NLR Kontaktposition: Unten Produktpalette: FCI VLL 10051922 Series productTraceability: No Kontaktanschluss: Oberflächenmontage, abgewinkelt Anzahl der Reihen: 1 Reihe Rastermaß: 0.5mm SVHC: No SVHC (04-Feb-2026) |
auf Bestellung 1791 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| 10051922-2410EHLF |
|
Hersteller: Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Actuator Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Material Flammability Rating: UL94 V-0
Locking Feature: Slide Lock
Height Above Board: 0.051" (1.30mm)
Termination: Solder
Operating Temperature: -55°C ~ 85°C
Pitch: 0.020" (0.50mm)
Number of Positions: 24
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 50V
Contact Finish: Gold
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Part Status: Active
Connector/Contact Type: Contacts, Bottom
Flat Flex Type: FPC
Cable End Type: Straight
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
FFC, FCB Thickness: 0.30mm
Contact Material: Copper Alloy
Description: CONN FPC BOTTOM 24POS 0.5MM R/A
Actuator Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Material Flammability Rating: UL94 V-0
Locking Feature: Slide Lock
Height Above Board: 0.051" (1.30mm)
Termination: Solder
Operating Temperature: -55°C ~ 85°C
Pitch: 0.020" (0.50mm)
Number of Positions: 24
Mounting Type: Surface Mount, Right Angle
Voltage Rating: 50V
Contact Finish: Gold
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Part Status: Active
Connector/Contact Type: Contacts, Bottom
Flat Flex Type: FPC
Cable End Type: Straight
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
FFC, FCB Thickness: 0.30mm
Contact Material: Copper Alloy
auf Bestellung 7965 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 19+ | 0.93 EUR |
| 23+ | 0.8 EUR |
| 25+ | 0.75 EUR |
| 50+ | 0.71 EUR |
| 100+ | 0.68 EUR |
| 250+ | 0.64 EUR |
| 500+ | 0.61 EUR |
| 1000+ | 0.58 EUR |
| 10051922-2410EHLF |
|
Hersteller: Amphenol FCI
FFC & FPC Connectors 0.50mm Flex Connector, VLL Series, 24 Position, Lower Side Contact, Side Entry Surface Mount ZIF Connector, Halogen-free & Lead Free Type.
FFC & FPC Connectors 0.50mm Flex Connector, VLL Series, 24 Position, Lower Side Contact, Side Entry Surface Mount ZIF Connector, Halogen-free & Lead Free Type.
auf Bestellung 4314 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 0.98 EUR |
| 10+ | 0.83 EUR |
| 25+ | 0.74 EUR |
| 100+ | 0.71 EUR |
| 250+ | 0.63 EUR |
| 1000+ | 0.59 EUR |
| 2500+ | 0.54 EUR |
| 10051922-2410EHLF |
|
Hersteller: AMPHENOL COMMUNICATIONS SOLUTIONS
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 10051922-2410EHLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI VLL 10051922 Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.3mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 24Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FCI VLL 10051922 Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, abgewinkelt
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (04-Feb-2026)
Description: AMPHENOL COMMUNICATIONS SOLUTIONS - 10051922-2410EHLF - FFC/FPC-Leiterplattensteckverbinder, 0.5 mm, 24 Kontakt(e), Buchse, FCI VLL 10051922 Series
tariffCode: 85366930
rohsCompliant: YES
FFC/FPC-Dicke: 0.3mm
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Ausführung: Buchse
usEccn: EAR99
Anzahl der Kontakte: 24Kontakt(e)
euEccn: NLR
Kontaktposition: Unten
Produktpalette: FCI VLL 10051922 Series
productTraceability: No
Kontaktanschluss: Oberflächenmontage, abgewinkelt
Anzahl der Reihen: 1 Reihe
Rastermaß: 0.5mm
SVHC: No SVHC (04-Feb-2026)
auf Bestellung 1791 Stücke:
Lieferzeit 14-21 Tag (e)
