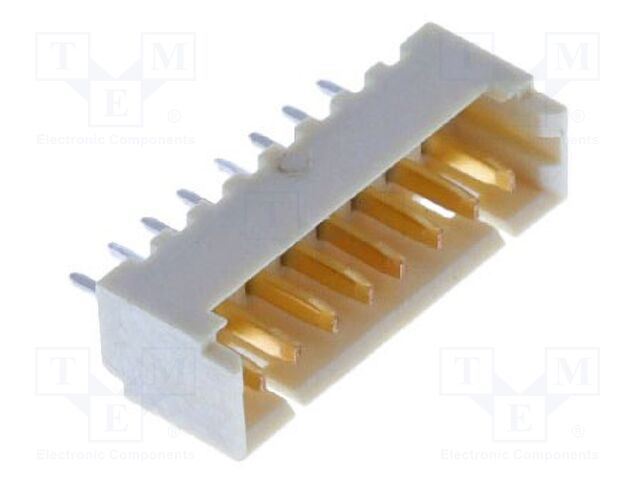

10114829-13108LF AMPHENOL
Hersteller: AMPHENOL
Category: Raster signal connectors 1,25mm
Description: Connector: wire-board; plug; male; PIN: 8; Minitek; 1A; 125V; THT
Type of connector: wire-board
Connector: plug
Kind of connector: male
Number of pins: 8
Current rating: 1A
Rated voltage: 0.125kV
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 1.25mm
Contact plating: gold-plated
Flammability rating: UL94V-0
Connector variant: shrouded
Contact material: phosphor bronze
Operating temperature: -40...105°C
Body colour: natural
Manufacturer series: Minitek
Produktrezensionen
Produktbewertung abgeben
Technische Details 10114829-13108LF AMPHENOL
Description: WTB 1.25 WAFER 180 DIP, Contact Type: Male Pin, Operating Temperature: -40°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 8, Mounting Type: Through Hole, Current Rating (Amps): 1A, Voltage Rating: 125V, Connector Type: Header, Packaging: Tape & Reel (TR), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.165" (4.20mm), Contact Length - Post: 0.091" (2.30mm), Contact Shape: Rectangular, Part Status: Active, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.049" (1.25mm), Insulation Color: Natural, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Detent Lock.
Weitere Produktangebote 10114829-13108LF nach Preis ab 1.13 EUR bis 2.2 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
10114829-13108LF | Amphenol Communications Solutions-FCI |
1.25mm Wire to Board Wafer, Vertical, Through Hole, 8 Positions |
auf Bestellung 2800 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
10114829-13108LF | Amphenol FCI |
Headers & Wire Housings WTB 1.25 WAFER 180 DIP |
auf Bestellung 3402 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
10114829-13108LF | Amphenol ICC (FCI) |
Description: WTB 1.25 WAFER 180 DIP Insulation Material: Liquid Crystal Polymer (LCP) Shrouding: Shrouded - 4 Wall Insulation Height: 0.165" (4.20mm) Contact Length - Post: 0.091" (2.30mm) Contact Shape: Rectangular Part Status: Active Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Mating: Gold Pitch - Mating: 0.049" (1.25mm) Insulation Color: Natural Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Detent Lock Contact Type: Male Pin Operating Temperature: -40°C ~ 105°C Style: Board to Cable/Wire Number of Rows: 1 Number of Positions: 8 Mounting Type: Through Hole Current Rating (Amps): 1A Voltage Rating: 125V Connector Type: Header Packaging: Cut Tape (CT) |
auf Bestellung 18 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 10114829-13108LF |
|
Hersteller: Amphenol Communications Solutions-FCI
1.25mm Wire to Board Wafer, Vertical, Through Hole, 8 Positions
1.25mm Wire to Board Wafer, Vertical, Through Hole, 8 Positions
auf Bestellung 2800 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1400+ | 1.17 EUR |
| 2800+ | 1.13 EUR |
| 10114829-13108LF |
|
Hersteller: Amphenol FCI
Headers & Wire Housings WTB 1.25 WAFER 180 DIP
Headers & Wire Housings WTB 1.25 WAFER 180 DIP
auf Bestellung 3402 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 2.2 EUR |
| 10+ | 1.87 EUR |
| 100+ | 1.61 EUR |
| 250+ | 1.59 EUR |
| 500+ | 1.57 EUR |
| 2500+ | 1.19 EUR |
| 10114829-13108LF |
|
Hersteller: Amphenol ICC (FCI)
Description: WTB 1.25 WAFER 180 DIP
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.165" (4.20mm)
Contact Length - Post: 0.091" (2.30mm)
Contact Shape: Rectangular
Part Status: Active
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.049" (1.25mm)
Insulation Color: Natural
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Detent Lock
Contact Type: Male Pin
Operating Temperature: -40°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 1
Number of Positions: 8
Mounting Type: Through Hole
Current Rating (Amps): 1A
Voltage Rating: 125V
Connector Type: Header
Packaging: Cut Tape (CT)
Description: WTB 1.25 WAFER 180 DIP
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.165" (4.20mm)
Contact Length - Post: 0.091" (2.30mm)
Contact Shape: Rectangular
Part Status: Active
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.049" (1.25mm)
Insulation Color: Natural
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Detent Lock
Contact Type: Male Pin
Operating Temperature: -40°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 1
Number of Positions: 8
Mounting Type: Through Hole
Current Rating (Amps): 1A
Voltage Rating: 125V
Connector Type: Header
Packaging: Cut Tape (CT)
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 10+ | 2.2 EUR |
| 12+ | 1.86 EUR |
