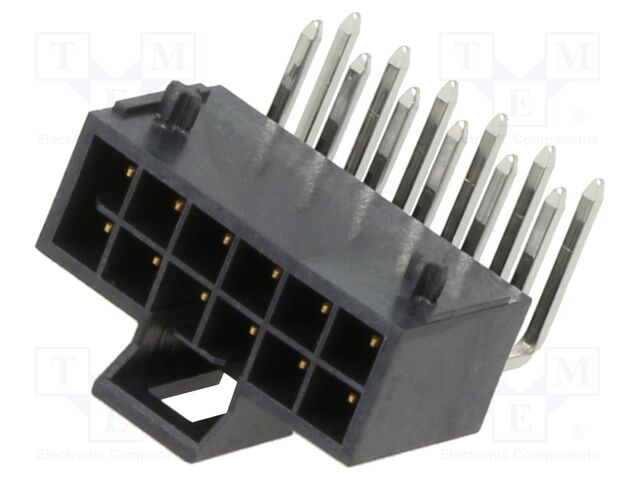

105314-1312 MOLEX
Hersteller: MOLEX
Category: Raster signal connectors 2,50mm
Description: Connector: wire-board; socket; male; PIN: 12; Nano-Fit; angled; 2x6
Type of connector: wire-board
Number of pins: 12
Operating temperature: -40...105°C
Mechanical mounting: for panel mounting
Body material: LCP
Connector pinout layout: 2x6
Kind of connector: male
Connector: socket
Spatial orientation: angled
Manufacturer series: Nano-Fit
Flammability rating: UL94V-0
Contacts pitch: 2.5mm
| Anzahl | Privatkunde |
|---|---|
| 14+ | 6.52 EUR |
| 15+ | 5.89 EUR |
| 25+ | 5.53 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 105314-1312 MOLEX
Description: CONN HEADER R/A 12POS 2.5MM, Features: Board Guide, Packaging: Tray, Connector Type: Header, Voltage Rating: 250V, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Right Angle, Number of Positions: 12, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.098" (2.50mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.138" (3.50mm), Insulation Height: 0.247" (6.28mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.098" (2.50mm).
Weitere Produktangebote 105314-1312 nach Preis ab 3.84 EUR bis 10.52 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
105314-1312 | Molex | Headers & Wire Housings NanoFit RA Hdr TH DR 12Ckt 0.76um Au Blk |
auf Bestellung 1675 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
1053141312 | Molex |
 Description: CONN HEADER R/A 12POS 2.5MMFeatures: Board Guide Packaging: Tray Connector Type: Header Voltage Rating: 250V Current Rating (Amps): Varies by Wire Gauge Mounting Type: Through Hole, Right Angle Number of Positions: 12 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Holder Number of Positions Loaded: All Termination: Solder Contact Material: Brass Insulation Color: Black Pitch - Mating: 0.098" (2.50mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.138" (3.50mm) Insulation Height: 0.247" (6.28mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.098" (2.50mm) |
auf Bestellung 646 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
1053141312 | Molex |
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray |
auf Bestellung 179 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
 |
105314-1312 | MOLEX |
Description: MOLEX - 105314-1312 - Stiftleiste, Power, 2.5 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage, abgewinkelt tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Messing usEccn: EAR99 Steckverbinderkragen: - Anzahl der Kontakte: 12Kontakt(e) euEccn: NLR Steckverbindersysteme: Power Steckverbinder: - Produktpalette: Nano-Fit 105314 productTraceability: No Kontaktanschluss: Durchsteckmontage, abgewinkelt Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.5mm SVHC: No SVHC (25-Jun-2025) |
auf Bestellung 782 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||
|
|
1053141312 | Molex |
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray |
auf Bestellung 6 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH | ||||||||||
|
|
1053141312 | Molex |
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray |
auf Bestellung 6 Stücke: Lieferzeit 14-21 Tag (e) |
Mindestbestellmenge: 3 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 105314-1312 |
Hersteller: Molex
Headers & Wire Housings NanoFit RA Hdr TH DR 12Ckt 0.76um Au Blk
Headers & Wire Housings NanoFit RA Hdr TH DR 12Ckt 0.76um Au Blk
auf Bestellung 1675 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 6.62 EUR |
| 10+ | 5.38 EUR |
| 100+ | 4.46 EUR |
| 1053141312 |
|
Hersteller: Molex
Description: CONN HEADER R/A 12POS 2.5MM
Features: Board Guide
Packaging: Tray
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole, Right Angle
Number of Positions: 12
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.098" (2.50mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.247" (6.28mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.098" (2.50mm)
Description: CONN HEADER R/A 12POS 2.5MM
Features: Board Guide
Packaging: Tray
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole, Right Angle
Number of Positions: 12
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.098" (2.50mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.247" (6.28mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.098" (2.50mm)
auf Bestellung 646 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 6.68 EUR |
| 10+ | 5.45 EUR |
| 102+ | 4.44 EUR |
| 510+ | 3.84 EUR |
| 1053141312 |
|
Hersteller: Molex
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray
auf Bestellung 179 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 23+ | 7.81 EUR |
| 105314-1312 |
|
Hersteller: MOLEX
Description: MOLEX - 105314-1312 - Stiftleiste, Power, 2.5 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage, abgewinkelt
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Messing
usEccn: EAR99
Steckverbinderkragen: -
Anzahl der Kontakte: 12Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Power
Steckverbinder: -
Produktpalette: Nano-Fit 105314
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.5mm
SVHC: No SVHC (25-Jun-2025)
Description: MOLEX - 105314-1312 - Stiftleiste, Power, 2.5 mm, 2 Reihe(n), 12 Kontakt(e), Durchsteckmontage, abgewinkelt
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Messing
usEccn: EAR99
Steckverbinderkragen: -
Anzahl der Kontakte: 12Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Power
Steckverbinder: -
Produktpalette: Nano-Fit 105314
productTraceability: No
Kontaktanschluss: Durchsteckmontage, abgewinkelt
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.5mm
SVHC: No SVHC (25-Jun-2025)
auf Bestellung 782 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 24+ | 10.52 EUR |
| 31+ | 7.5 EUR |
| 100+ | 5.84 EUR |
| 250+ | 5.52 EUR |
| 500+ | 5.2 EUR |
| 1053141312 |
|
Hersteller: Molex
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
| 1053141312 |
|
Hersteller: Molex
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray
Conn Wire to Board HDR 12 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit Tray
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
