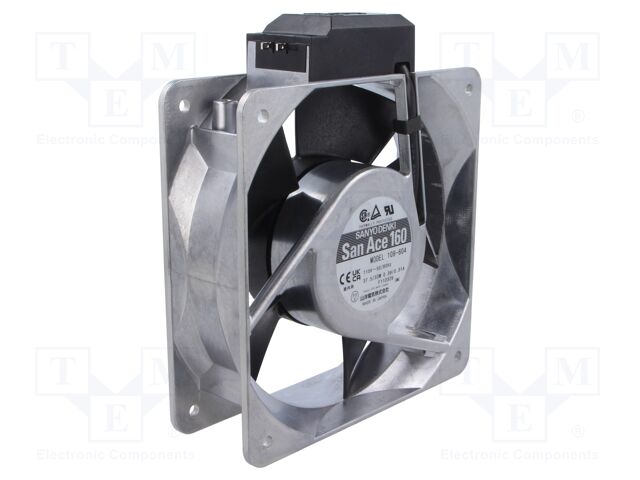

109-604 Sanyo Denki America Inc.
Hersteller: Sanyo Denki America Inc.
Description: FAN 160X51MM 115VAC
Power (Watts): 33.00W
Packaging: Box
Voltage - Rated: 115VAC
Size / Dimension: Square - 160mm L x 160mm H
Bearing Type: Ball
RPM: 3350 RPM
Air Flow: 300.4 CFM (8.41m³/min)
Width: 51.00mm
Weight: 2.4 lbs (1.1 kg)
Operating Temperature: -22 ~ 140°F (-30 ~ 60°C)
Termination: 2 Terminals
Approval Agency: CE, CSA, PSE, TUV, UL
Fan Type: Tubeaxial
Noise: 60.0dB(A)
Static Pressure: 0.669 in H2O (166.6 Pa)
Part Status: Active
| Anzahl | Privatkunde |
|---|---|
| 1+ | 244.41 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details 109-604 Sanyo Denki America Inc.
Category: AC115V Fans, Description: Fan: AC; 160x160x51mm; axial; 432m3/h; 56dBA; ball; 2850rpm; 115VAC, Kind of fan: axial, Rated voltage: 115V AC, Flammability rating: UL94V-1, Current rating: 0.39A, Fan efficiency: 432m3/h, Operating temperature: -30...60°C, Rotational rate/speed: 2850rpm, Enclosure material: aluminium, Kind of Bearing: ball, Current and power consumption tolerance: ±10%, Fan dimensions: 160x160x51mm, Min. insulation resistance: 10MΩ, Kind of material: flame retardant, Power consumption: 37.5W, Impeller material: plastic, Type of fan: AC, Noise level: 56dBA, Additional functions: lock sensor; reverse polarity protection, Operating voltage: 115V AC.
Weitere Produktangebote 109-604 nach Preis ab 265.76 EUR bis 287.41 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
109-604 | Sanyo Denki |
AC Fans AC Axial Fan, 160x160x51mm, 115VAC, High Ace |
auf Bestellung 18 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
 |
109-604 | SANYO DENKI |
Category: AC115V Fans Description: Fan: AC; 160x160x51mm; axial; 432m3/h; 56dBA; ball; 2850rpm; 115VAC Kind of fan: axial Rated voltage: 115V AC Flammability rating: UL94V-1 Current rating: 0.39A Fan efficiency: 432m3/h Operating temperature: -30...60°C Rotational rate/speed: 2850rpm Enclosure material: aluminium Kind of Bearing: ball Current and power consumption tolerance: ±10% Fan dimensions: 160x160x51mm Min. insulation resistance: 10MΩ Kind of material: flame retardant Power consumption: 37.5W Impeller material: plastic Type of fan: AC Noise level: 56dBA Additional functions: lock sensor; reverse polarity protection Operating voltage: 115V AC |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| 109-604 |
|
Hersteller: Sanyo Denki
AC Fans AC Axial Fan, 160x160x51mm, 115VAC, High Ace
AC Fans AC Axial Fan, 160x160x51mm, 115VAC, High Ace
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 287.41 EUR |
| 10+ | 265.76 EUR |
| 109-604 |
|
Hersteller: SANYO DENKI
Category: AC115V Fans
Description: Fan: AC; 160x160x51mm; axial; 432m3/h; 56dBA; ball; 2850rpm; 115VAC
Kind of fan: axial
Rated voltage: 115V AC
Flammability rating: UL94V-1
Current rating: 0.39A
Fan efficiency: 432m3/h
Operating temperature: -30...60°C
Rotational rate/speed: 2850rpm
Enclosure material: aluminium
Kind of Bearing: ball
Current and power consumption tolerance: ±10%
Fan dimensions: 160x160x51mm
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Power consumption: 37.5W
Impeller material: plastic
Type of fan: AC
Noise level: 56dBA
Additional functions: lock sensor; reverse polarity protection
Operating voltage: 115V AC
Category: AC115V Fans
Description: Fan: AC; 160x160x51mm; axial; 432m3/h; 56dBA; ball; 2850rpm; 115VAC
Kind of fan: axial
Rated voltage: 115V AC
Flammability rating: UL94V-1
Current rating: 0.39A
Fan efficiency: 432m3/h
Operating temperature: -30...60°C
Rotational rate/speed: 2850rpm
Enclosure material: aluminium
Kind of Bearing: ball
Current and power consumption tolerance: ±10%
Fan dimensions: 160x160x51mm
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Power consumption: 37.5W
Impeller material: plastic
Type of fan: AC
Noise level: 56dBA
Additional functions: lock sensor; reverse polarity protection
Operating voltage: 115V AC
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
