Produkte > SANYO DENKI > 109P0405H301

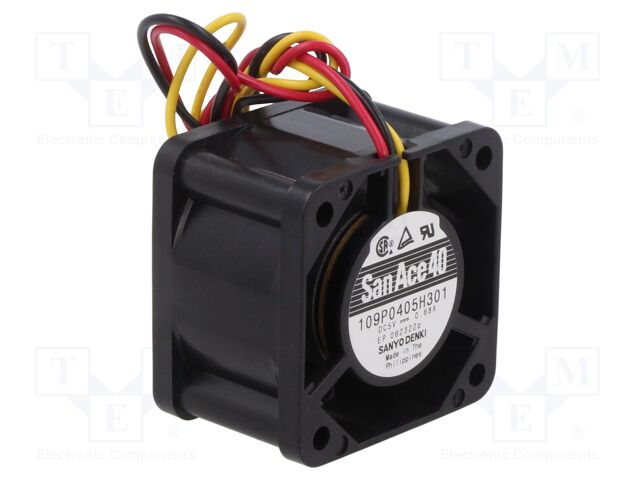

109P0405H301

109P0405H301 SANYO DENKI


pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA1FD0B5D70A420C7&compId=109P0405H301.pdf?ci_sign=c80a8e575e8d5a18312d5030ce6cd207436b49c2 Hersteller: SANYO DENKI
Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 40x40x28mm; 19.2m3/h; 37dBA; ball; 8700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 5V DC
Operating voltage: 4.5...5.5V DC
Fan dimensions: 40x40x28mm
Current rating: 0.68A
Fan efficiency: 19.2m3/h
Noise level: 37dBA
Kind of Bearing: ball
Rotational rate/speed: 8700rpm
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.32m
Operating temperature: -20...70°C
Additional functions: lock sensor; reverse polarity protection
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Flammability rating: UL94V-1
Power consumption: 3.4W
Anzahl je Verpackung: 1 Stücke
auf Bestellung 70 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
4+20.56 EUR
5+14.59 EUR
6+13.81 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 109P0405H301 SANYO DENKI

Category: DC5V Fans, Description: Fan: DC; axial; 5VDC; 40x40x28mm; 19.2m3/h; 37dBA; ball; 8700rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 5V DC, Operating voltage: 4.5...5.5V DC, Fan dimensions: 40x40x28mm, Current rating: 0.68A, Fan efficiency: 19.2m3/h, Noise level: 37dBA, Kind of Bearing: ball, Rotational rate/speed: 8700rpm, Impeller material: plastic, Enclosure material: plastic, Leads: leads x3, Lead length: 0.32m, Operating temperature: -20...70°C, Additional functions: lock sensor; reverse polarity protection, Min. insulation resistance: 10MΩ, Kind of material: flame retardant, Flammability rating: UL94V-1, Power consumption: 3.4W, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 109P0405H301 nach Preis ab 13.81 EUR bis 25.82 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
109P0405H301 109P0405H301 Hersteller : SANYO DENKI pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA1FD0B5D70A420C7&compId=109P0405H301.pdf?ci_sign=c80a8e575e8d5a18312d5030ce6cd207436b49c2 Category: DC5V Fans
Description: Fan: DC; axial; 5VDC; 40x40x28mm; 19.2m3/h; 37dBA; ball; 8700rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 5V DC
Operating voltage: 4.5...5.5V DC
Fan dimensions: 40x40x28mm
Current rating: 0.68A
Fan efficiency: 19.2m3/h
Noise level: 37dBA
Kind of Bearing: ball
Rotational rate/speed: 8700rpm
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Lead length: 0.32m
Operating temperature: -20...70°C
Additional functions: lock sensor; reverse polarity protection
Min. insulation resistance: 10MΩ
Kind of material: flame retardant
Flammability rating: UL94V-1
Power consumption: 3.4W
auf Bestellung 70 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
4+20.56 EUR
5+14.59 EUR
6+13.81 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
109P0405H301 109P0405H301 Hersteller : Sanyo Denki Sanyo-04-26-2019-109P0405H301_F-1588656.pdf DC Fans DC Axial Fan, 40x40x28mm, 5VDC, Tachometer
auf Bestellung 132 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+24.01 EUR
10+22.93 EUR
25+21.58 EUR
50+20.75 EUR
100+19.11 EUR
252+17.88 EUR
504+17.60 EUR
Im Einkaufswagen  Stück im Wert von  UAH
109P0405H301 109P0405H301 Hersteller : Sanyo Denki America Inc. 109P0405H301_F.pdf Description: FAN AXIAL 40X28MM BALL 5VDC WIRE
Features: Locked Rotor Protection, Speed Sensor (Tach)
Packaging: Box
Voltage - Rated: 5VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 8700 RPM
Air Flow: 11.3 CFM (0.316m³/min)
Width: 28.00mm
Weight: 0.115 lb (52.16 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 3 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 37.0dB(A)
Static Pressure: 0.236 in H2O (58.8 Pa)
Part Status: Active
Power (Watts): 3.4 W
auf Bestellung 7 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+25.82 EUR
Im Einkaufswagen  Stück im Wert von  UAH
