Produkte > SANYO DENKI > 109P0412K3013
109P0412K3013

109P0412K3013 SANYO DENKI


109P0412K3013.pdf Hersteller: SANYO DENKI
Category: DC12V Fans

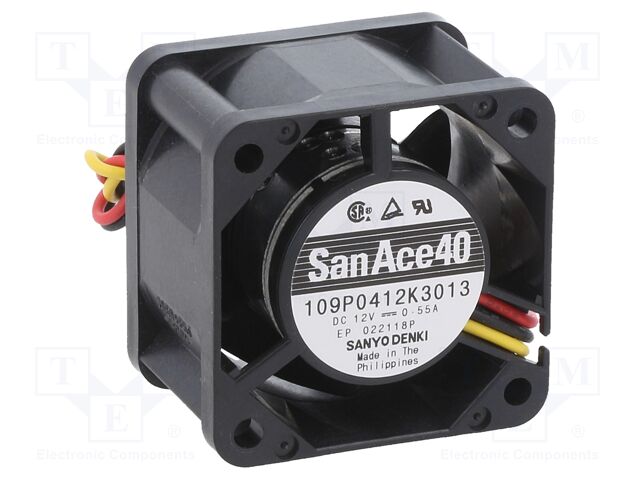

Description: Fan: DC; axial; 12VDC; 40x40x28mm; 35.4m3/h; 50dBA; ball; 15500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 8...13.2V DC
Fan dimensions: 40x40x28mm
Power consumption: 6.6W
Current rating: 0.55A
Fan efficiency: 35.4m3/h
Noise level: 50dBA
Kind of Bearing: ball
Rotational rate/speed: 15500rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Operating temperature: -20...70°C
Cable length: 0.32m
Flammability rating: UL94V-1
Additional functions: lock sensor; reverse polarity protection
Kind of material: flame retardant
auf Bestellung 197 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
4+19.41 EUR
5+15.09 EUR
6+14.29 EUR
10+13.23 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 109P0412K3013 SANYO DENKI

Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x28mm; 35.4m3/h; 50dBA; ball; 15500rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 8...13.2V DC, Fan dimensions: 40x40x28mm, Power consumption: 6.6W, Current rating: 0.55A, Fan efficiency: 35.4m3/h, Noise level: 50dBA, Kind of Bearing: ball, Rotational rate/speed: 15500rpm, Min. insulation resistance: 10MΩ, Impeller material: plastic, Enclosure material: plastic, Leads: leads x3, Operating temperature: -20...70°C, Cable length: 0.32m, Flammability rating: UL94V-1, Additional functions: lock sensor; reverse polarity protection, Kind of material: flame retardant, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 109P0412K3013 nach Preis ab 13.23 EUR bis 27.40 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
109P0412K3013 109P0412K3013 Hersteller : SANYO DENKI 109P0412K3013.pdf Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 40x40x28mm; 35.4m3/h; 50dBA; ball; 15500rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 8...13.2V DC
Fan dimensions: 40x40x28mm
Power consumption: 6.6W
Current rating: 0.55A
Fan efficiency: 35.4m3/h
Noise level: 50dBA
Kind of Bearing: ball
Rotational rate/speed: 15500rpm
Min. insulation resistance: 10MΩ
Impeller material: plastic
Enclosure material: plastic
Leads: leads x3
Operating temperature: -20...70°C
Cable length: 0.32m
Flammability rating: UL94V-1
Additional functions: lock sensor; reverse polarity protection
Kind of material: flame retardant
Anzahl je Verpackung: 1 Stücke
auf Bestellung 197 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
4+19.41 EUR
5+15.09 EUR
6+14.29 EUR
10+13.23 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
109P0412K3013 109P0412K3013 Hersteller : Sanyo Denki San_Ace_40P28_E-1287985.pdf DC Fans DC Axial Fan, 40x40x28mm, 12VDC, Groove for Lead, Tachometer
auf Bestellung 142 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+26.45 EUR
10+23.58 EUR
25+22.51 EUR
50+21.74 EUR
100+20.77 EUR
252+20.03 EUR
504+19.36 EUR
Im Einkaufswagen  Stück im Wert von  UAH
109P0412K3013 109P0412K3013 Hersteller : Sanyo Denki America Inc. page=40P28 Description: FAN AXIAL 40X28MM 12VDC WIRE
Packaging: Box
Features: Locked Rotor Protection, Speed Sensor (Tach)
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 15500 RPM
Air Flow: 20.8 CFM (0.582m³/min)
Width: 28.00mm
Weight: 0.115 lb (52.16 g)
Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
Termination: 3 Wire Leads
Approval Agency: CSA, TUV, UL
Fan Type: Tubeaxial
Noise: 50.0dB(A)
Static Pressure: 1.365 in H2O (340.0 Pa)
Power (Watts): 6.6 W
auf Bestellung 2916 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+27.40 EUR
10+22.52 EUR
25+20.67 EUR
50+19.32 EUR
126+18.87 EUR
Im Einkaufswagen  Stück im Wert von  UAH
109P0412K3013 109P0412K3013 Hersteller : Sanyo Denki san_ace_40p28_e.pdf DC Fan Axial Ball Bearing 12V 8V to 13.2V 20.8CFM 50dB 40 X 40 X 28mm
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
109P0412K3013 109P0412K3013 Hersteller : Sanyo Denki san_ace_40p28_e.pdf DC Fan Axial Ball Bearing 12V 8V to 13.2V 20.8CFM 50dB 40 X 40 X 28mm
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
109P0412K3013 109P0412K3013 Hersteller : SANYO DENKI San_Ace_40P28_E.pdf Description: SANYO DENKI - 109P0412K3013 - DC-Axiallüfter, 12 V, Quadratisch, 40 mm, 28 mm, Kugellager, 20.8 cu.ft/min
tariffCode: 84145925
Stromanschluss: 3 Anschlussdrähte
rohsCompliant: Y-EX
hazardous: false
rohsPhthalatesCompliant: YES
Art des Lagers: Kugellager
Nennleistung: 6.6W
IP-Schutzart: -
usEccn: EAR99
Luftstrom - m3/min: 0.59m³/min
Nennstrom: 550mA
Außentiefe: 28mm
Geräuschentwicklung: 50dBA
euEccn: NLR
Luftstrom - CFM: 20.8cu.ft/min
Lüfterrahmen: Quadratisch
Produktpalette: San Ace 40
productTraceability: No
Rahmengröße: 40mm
Versorgungsspannung, V DC: 12V
Nenndrehzahl: 15500rpm
SVHC: To Be Advised
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
