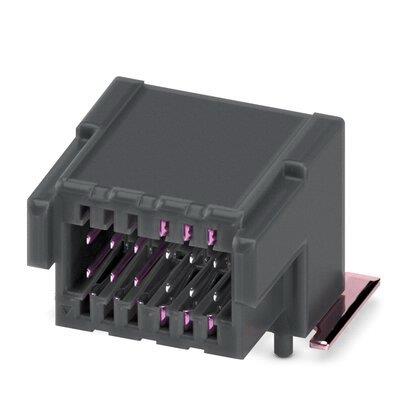

1104552 Phoenix Contact

Description: FP 0 8/ 80-MH, Features: Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Current Rating (Amps): 1.7A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 80, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.031" (0.80mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Contact Shape: Rectangular, Insulation Height: 0.274" (6.96mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP).
