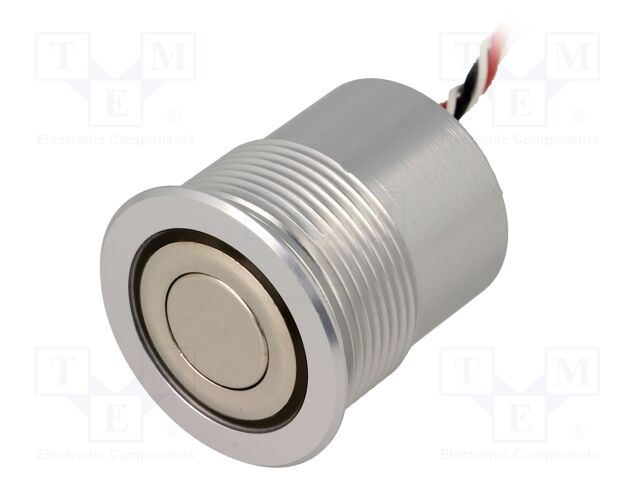

1241.6400 SCHURTER
Hersteller: SCHURTER
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.05A/24VDC; IP65; red
Contact plating: silver plated
Max. contact resistance:: 150mΩ
Operating temperature: -20...60°C
IP rating: IP65
Diameter: 33.75mm
Body material: zinc alloy
Manufacturer series: MCS 19
Button shape: flat
Contacts configuration: SPST-NO
Stable positions number: 1
Leads: leads 200mm
Operating Force: 3.7N
Backlight colour: red
Switching method: OFF-(ON)
Switched voltage: max. 48V DC
Electrical life: 1000000 cycles
Illumination: LED; ring
Number of positions: 2
Mounting hole diameter: Ø30mm
Contact current max.: 125mA
Type of switch: vandal resistant
Body plating: nickel
Illumination voltage: 5...28V
DC contacts rating @R: 50mA / 24V DC
Body colour: silver
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.05A/24VDC; IP65; red
Contact plating: silver plated
Max. contact resistance:: 150mΩ
Operating temperature: -20...60°C
IP rating: IP65
Diameter: 33.75mm
Body material: zinc alloy
Manufacturer series: MCS 19
Button shape: flat
Contacts configuration: SPST-NO
Stable positions number: 1
Leads: leads 200mm
Operating Force: 3.7N
Backlight colour: red
Switching method: OFF-(ON)
Switched voltage: max. 48V DC
Electrical life: 1000000 cycles
Illumination: LED; ring
Number of positions: 2
Mounting hole diameter: Ø30mm
Contact current max.: 125mA
Type of switch: vandal resistant
Body plating: nickel
Illumination voltage: 5...28V
DC contacts rating @R: 50mA / 24V DC
Body colour: silver
Anzahl je Verpackung: 1 Stücke
auf Bestellung 22 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 55.77 EUR |
