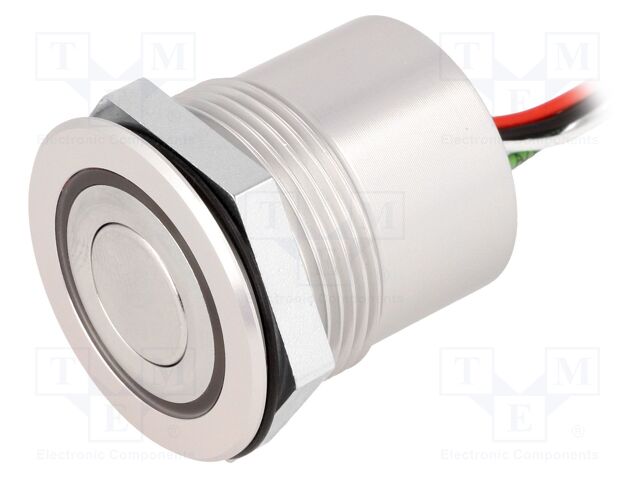

1241.6403 SCHURTER
Hersteller: SCHURTER
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.05A/24VDC; IP65; 5÷28V
Contact plating: silver plated
Max. contact resistance:: 150mΩ
Operating temperature: -20...60°C
IP rating: IP65
Diameter: 33.75mm
Body material: zinc alloy
Manufacturer series: MCS 19
Button shape: flat
Contacts configuration: SPST-NO
Stable positions number: 1
Leads: leads 200mm
Operating Force: 3.7N
Backlight colour: red/green
Switching method: OFF-(ON)
Switched voltage: max. 48V DC
Electrical life: 1000000 cycles
Illumination: LED; ring
Number of positions: 2
Mounting hole diameter: Ø30mm
Contact current max.: 125mA
Type of switch: vandal resistant
Body plating: nickel
Illumination voltage: 5...28V
DC contacts rating @R: 50mA / 24V DC
Body colour: silver
Anzahl je Verpackung: 1 Stücke
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.05A/24VDC; IP65; 5÷28V
Contact plating: silver plated
Max. contact resistance:: 150mΩ
Operating temperature: -20...60°C
IP rating: IP65
Diameter: 33.75mm
Body material: zinc alloy
Manufacturer series: MCS 19
Button shape: flat
Contacts configuration: SPST-NO
Stable positions number: 1
Leads: leads 200mm
Operating Force: 3.7N
Backlight colour: red/green
Switching method: OFF-(ON)
Switched voltage: max. 48V DC
Electrical life: 1000000 cycles
Illumination: LED; ring
Number of positions: 2
Mounting hole diameter: Ø30mm
Contact current max.: 125mA
Type of switch: vandal resistant
Body plating: nickel
Illumination voltage: 5...28V
DC contacts rating @R: 50mA / 24V DC
Body colour: silver
Anzahl je Verpackung: 1 Stücke
auf Bestellung 40 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
2+ | 55.77 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1241.6403 SCHURTER
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.05A/24VDC; IP65; 5÷28V, Contact plating: silver plated, Max. contact resistance:: 150mΩ, Operating temperature: -20...60°C, IP rating: IP65, Diameter: 33.75mm, Body material: zinc alloy, Manufacturer series: MCS 19, Button shape: flat, Contacts configuration: SPST-NO, Stable positions number: 1, Leads: leads 200mm, Operating Force: 3.7N, Backlight colour: red/green, Switching method: OFF-(ON), Switched voltage: max. 48V DC, Electrical life: 1000000 cycles, Illumination: LED; ring, Number of positions: 2, Mounting hole diameter: Ø30mm, Contact current max.: 125mA, Type of switch: vandal resistant, Body plating: nickel, Illumination voltage: 5...28V, DC contacts rating @R: 50mA / 24V DC, Body colour: silver, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 1241.6403 nach Preis ab 55.77 EUR bis 170.07 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1241.6403 | Hersteller : SCHURTER |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPST-NO; 0.05A/24VDC; IP65; 5÷28V Contact plating: silver plated Max. contact resistance:: 150mΩ Operating temperature: -20...60°C IP rating: IP65 Diameter: 33.75mm Body material: zinc alloy Manufacturer series: MCS 19 Button shape: flat Contacts configuration: SPST-NO Stable positions number: 1 Leads: leads 200mm Operating Force: 3.7N Backlight colour: red/green Switching method: OFF-(ON) Switched voltage: max. 48V DC Electrical life: 1000000 cycles Illumination: LED; ring Number of positions: 2 Mounting hole diameter: Ø30mm Contact current max.: 125mA Type of switch: vandal resistant Body plating: nickel Illumination voltage: 5...28V DC contacts rating @R: 50mA / 24V DC Body colour: silver |
auf Bestellung 40 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
1241.6403 | Hersteller : Schurter | Switch Push Button N.O. SPST Round Button 0.125A 48VDC Momentary Contact Panel Mount Wire Lead Box |
auf Bestellung 31 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
1241.6403 | Hersteller : Schurter | Pushbutton Switches 30mm Rd/Grn ring ill Mechanical N.O. SS |
auf Bestellung 29 Stücke: Lieferzeit 14-28 Tag (e) |
|
|||||||||||||
1241.6403 | Hersteller : SCHURTER |
Description: SCHURTER - 1241.6403 - Vandalensicherer Schalter, MCS, 30.3 mm, SPST-NO, Aus-(Ein), Bündig, Natur tariffCode: 85365011 rohsCompliant: YES Schalteranschlüsse: Anschlussdrähte Betätiger-/Kappenfarbe: Natur hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 80mA Plattenausschnitt (H x B): - Schalterfunktion: Aus-(Ein) IP-Schutzart: IP65 usEccn: EAR99 AC-Kontaktstrom, max.: -A euEccn: NLR DC-Kontaktstrom, max.: 125mA Kontaktspannung V DC: 48V Farbe der Beleuchtung: Grün, Rot Durchmesser des Frontplattenausschnitts: 30.3mm Schaltermontage: Panelmontage Produktpalette: MCS productTraceability: No Druckknopf-Betätiger: Bündig Kontaktkonfiguration: SPST-NO Kontaktspannung V AC: -V SVHC: No SVHC (23-Jan-2024) |
auf Bestellung 4 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||
1241.6403 | Hersteller : SCHURTER Inc. |
Description: SWITCH PUSH SPST-NO 125MA 48V Features: Tactile Feedback Packaging: Bulk Current Rating (Amps): 125mA (DC) Mounting Type: Panel Mount, Front Circuit: SPST-NO Type: Anti-Vandal, Illuminated Switch Function: Off-Mom Operating Temperature: -20°C ~ 60°C Termination Style: Wire Leads Illumination Type, Color: LED, Green/Red Illumination Voltage (Nominal): 24 VDC Actuator Type: Round, Button, Flush Ingress Protection: IP65 - Dust Tight, Water Resistant Panel Cutout Dimensions: Circular - 30.30mm Dia Color - Actuator/Cap: Silver Actuator Marking: No Marking Part Status: Active Voltage Rating - DC: 48 V |
Produkt ist nicht verfügbar |
