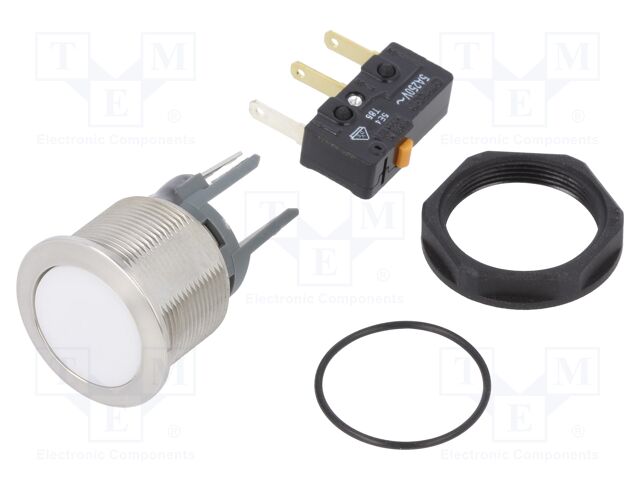

1241.7026.1124000 SCHURTER Inc.
Hersteller: SCHURTER Inc.
Description: SWITCH PUSHBUTTON SPDT 5A 125V
Features: Ceramic Actuator
Packaging: Bulk
Current Rating (Amps): 5A (AC)
Mounting Type: Panel Mount, Front
Circuit: SPDT
Type: Anti-Vandal, Illuminated
Switch Function: On-Mom
Operating Temperature: -25°C ~ 85°C
Termination Style: Quick Connect - 0.110" (2.8mm)
Illumination Type, Color: LED, Blue
Illumination Voltage (Nominal): 24 VDC
Actuator Type: Round, Button, Flush
Ingress Protection: IP40
Panel Cutout Dimensions: Circular - 19.10mm Dia
Color - Actuator/Cap: Clear (White Filter/Diffuser)
Actuator Marking: No Marking
Voltage Rating - AC: 125 V
| Anzahl | Privatkunde |
|---|---|
| 1+ | 86.2 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details 1241.7026.1124000 SCHURTER Inc.
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; MSM CS 19; 3A/250VAC; IP65, Mounting hole dimensions: Ø19mm, Manufacturer series: MSM CS 19, Type of switch: vandal resistant, Illumination voltage: 24V DC, Mechanical durability: 1500000 cycles, Body colour: silver, Mechanical impact resistance: IK07, AC contacts rating @R: 3A / 250V AC, Operating temperature: -20...85°C, Button shape: flat, Contacts configuration: SPDT, Stable positions number: 1, Leads: for soldering, Operating Force: 4.5N, Body material: stainless steel, Backlight colour: blue, Switching method: ON-(ON), Max. contact resistance:: 30mΩ, Electrical life: 200000 cycles, Illumination: LED, Number of positions: 2, IP rating: IP65.
Weitere Produktangebote 1241.7026.1124000
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
1241.7026.1124000 | SCHURTER |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPDT; MSM CS 19; 3A/250VAC; IP65 Mounting hole dimensions: Ø19mm Manufacturer series: MSM CS 19 Type of switch: vandal resistant Illumination voltage: 24V DC Mechanical durability: 1500000 cycles Body colour: silver Mechanical impact resistance: IK07 AC contacts rating @R: 3A / 250V AC Operating temperature: -20...85°C Button shape: flat Contacts configuration: SPDT Stable positions number: 1 Leads: for soldering Operating Force: 4.5N Body material: stainless steel Backlight colour: blue Switching method: ON-(ON) Max. contact resistance:: 30mΩ Electrical life: 200000 cycles Illumination: LED Number of positions: 2 IP rating: IP65 |
auf Bestellung 19 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| 1241.7026.1124000 |
|
Hersteller: SCHURTER
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; MSM CS 19; 3A/250VAC; IP65
Mounting hole dimensions: Ø19mm
Manufacturer series: MSM CS 19
Type of switch: vandal resistant
Illumination voltage: 24V DC
Mechanical durability: 1500000 cycles
Body colour: silver
Mechanical impact resistance: IK07
AC contacts rating @R: 3A / 250V AC
Operating temperature: -20...85°C
Button shape: flat
Contacts configuration: SPDT
Stable positions number: 1
Leads: for soldering
Operating Force: 4.5N
Body material: stainless steel
Backlight colour: blue
Switching method: ON-(ON)
Max. contact resistance:: 30mΩ
Electrical life: 200000 cycles
Illumination: LED
Number of positions: 2
IP rating: IP65
