132119 AMPHENOL RF
Hersteller: AMPHENOL RF
Category: SMA, SMB, SMC connectors

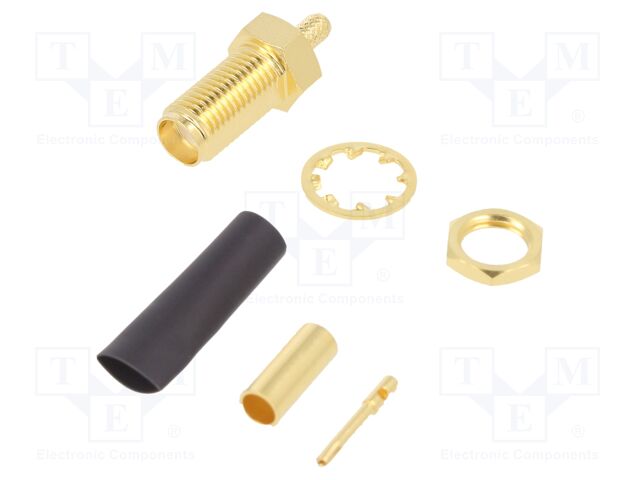

Description: Connector: SMA; socket; female; straight; 50Ω; soldering,crimped
Type of connector: SMA
Connector: socket
Kind of connector: female
Spatial orientation: straight
Wave impedance: 50Ω
Kind of cable: Belden 7805A; Belden 8216; Belden 83269; Belden 83284; Belden 84316; Leoni DACAR 462; Leoni DACAR 462-2; RG174; RG188; RG316; Shikoku 1.5DS-QFB-TA; Sumitomo 1.5DS-GXC-SP; Times LMR-100A; Times RG-174LL
Electrical mounting: crimped; soldering
Mechanical mounting: for panel mounting; front side nut
Insulator material: PTFE
Panel thickness: max. 3.2mm
Contact plating: gold-plated
Max. frequency: 12.4GHz
Body material: brass
Mechanical durability: 500 cycles
Contact material: beryllium copper
Operating temperature: -65...165°C
Body plating: gold
Category: SMA, SMB, SMC connectors
Description: Connector: SMA; socket; female; straight; 50Ω; soldering,crimped
Type of connector: SMA
Connector: socket
Kind of connector: female
Spatial orientation: straight
Wave impedance: 50Ω
Kind of cable: Belden 7805A; Belden 8216; Belden 83269; Belden 83284; Belden 84316; Leoni DACAR 462; Leoni DACAR 462-2; RG174; RG188; RG316; Shikoku 1.5DS-QFB-TA; Sumitomo 1.5DS-GXC-SP; Times LMR-100A; Times RG-174LL
Electrical mounting: crimped; soldering
Mechanical mounting: for panel mounting; front side nut
Insulator material: PTFE
Panel thickness: max. 3.2mm
Contact plating: gold-plated
Max. frequency: 12.4GHz
Body material: brass
Mechanical durability: 500 cycles
Contact material: beryllium copper
Operating temperature: -65...165°C
Body plating: gold
auf Bestellung 30 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
8+ | 8.94 EUR |
9+ | 8.44 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 132119 AMPHENOL RF
Category: SMA, SMB, SMC connectors, Description: Connector: SMA; socket; female; straight; 50Ω; soldering,crimped, Type of connector: SMA, Connector: socket, Kind of connector: female, Spatial orientation: straight, Wave impedance: 50Ω, Kind of cable: Belden 7805A; Belden 8216; Belden 83269; Belden 83284; Belden 84316; Leoni DACAR 462; Leoni DACAR 462-2; RG174; RG188; RG316; Shikoku 1.5DS-QFB-TA; Sumitomo 1.5DS-GXC-SP; Times LMR-100A; Times RG-174LL, Electrical mounting: crimped; soldering, Mechanical mounting: for panel mounting; front side nut, Insulator material: PTFE, Panel thickness: max. 3.2mm, Contact plating: gold-plated, Max. frequency: 12.4GHz, Body material: brass, Mechanical durability: 500 cycles, Contact material: beryllium copper, Operating temperature: -65...165°C, Body plating: gold, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 132119 nach Preis ab 8.12 EUR bis 16.18 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
+1 |
132119 | Hersteller : AMPHENOL RF |
Category: SMA, SMB, SMC connectors Description: Connector: SMA; socket; female; straight; 50Ω; soldering,crimped Type of connector: SMA Connector: socket Kind of connector: female Spatial orientation: straight Wave impedance: 50Ω Kind of cable: Belden 7805A; Belden 8216; Belden 83269; Belden 83284; Belden 84316; Leoni DACAR 462; Leoni DACAR 462-2; RG174; RG188; RG316; Shikoku 1.5DS-QFB-TA; Sumitomo 1.5DS-GXC-SP; Times LMR-100A; Times RG-174LL Electrical mounting: crimped; soldering Mechanical mounting: for panel mounting; front side nut Insulator material: PTFE Panel thickness: max. 3.2mm Contact plating: gold-plated Max. frequency: 12.4GHz Body material: brass Mechanical durability: 500 cycles Contact material: beryllium copper Operating temperature: -65...165°C Body plating: gold Anzahl je Verpackung: 1 Stücke |
auf Bestellung 30 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||||||||||||||
132119 | Hersteller : Amphenol RF | RF Connectors / Coaxial Connectors SMA BLHD JCK 174 316 GOLD |
auf Bestellung 344 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||||
132119 | Hersteller : Amphenol RF |
Description: CONN SMA JACK STR 50 OHM SOLDER Packaging: Bag Connector Type: Jack, Female Socket Contact Termination: Solder Impedance: 50 Ohms Mounting Type: Panel Mount Cable Group: RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 Fastening Type: Threaded Ingress Protection: Weatherproof Connector Style: SMA Mounting Feature: Bulkhead - Front Side Nut Housing Color: Gold Shield Termination: Crimp Center Contact Material: Beryllium Copper Part Status: Active Frequency - Max: 12.4 GHz Number of Ports: 1 |
auf Bestellung 1531 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||||
132119 | Hersteller : Amphenol RF | Conn SMA 0Hz to 12.4GHz 50Ohm Crimp ST Panel Mount RCP Gold |
auf Bestellung 15 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||||
132119 | Hersteller : AMPHENOL RF |
Description: AMPHENOL RF - 132119 - HF-/Koaxialsteckverbinder, SMA-Koaxial, Gerade Einbaubuchse mit Verschraubung, Crimp, 50 ohm tariffCode: 85366910 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Berylliumkupfer Steckverbinderausführung: Gerade Einbaubuchse mit Verschraubung Steckverbindermontage: Kabelmontage usEccn: EAR99 euEccn: NLR Koaxialanschluss: Crimp Impedanz: 50ohm Steckverbindertyp: SMA-Koaxial Produktpalette: - Koaxialkabeltypen: RG174, RG188A, RG316 productTraceability: No Frequenz, max.: 12.4GHz |
auf Bestellung 14 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||||
132119 | Hersteller : Amphenol | Conn SMA 0Hz to 12.4GHz 50Ohm Solder ST Panel Mount RCP Gold |
Produkt ist nicht verfügbar |
||||||||||||||||||||
132119 | Hersteller : Amphenol RF | Conn SMA 0Hz to 12.4GHz 50Ohm Crimp ST Panel Mount RCP Gold |
Produkt ist nicht verfügbar |
||||||||||||||||||||
132119 | Hersteller : Amphenol RF | Conn SMA 0Hz to 12.4GHz 50Ohm Crimp ST Panel Mount RCP Gold |
Produkt ist nicht verfügbar |
