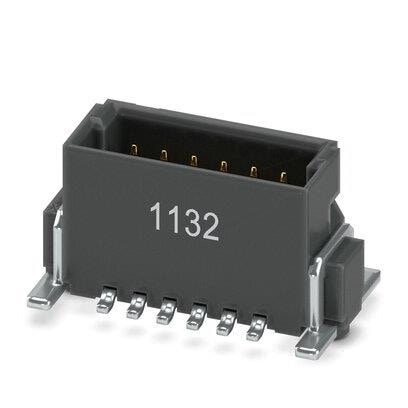

1373827 Phoenix Contact

Description: CONN HEADER 1.27MM 12POS SMD, Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.266" (6.76mm), Contact Shape: Square, Contact Finish - Post: Gold, Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Copper Alloy, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 12, Mounting Type: Surface Mount, Current Rating (Amps): 2.2A, Connector Type: Header, Features: Board Guide, Solder Retention, Packaging: Tape & Reel (TR).
