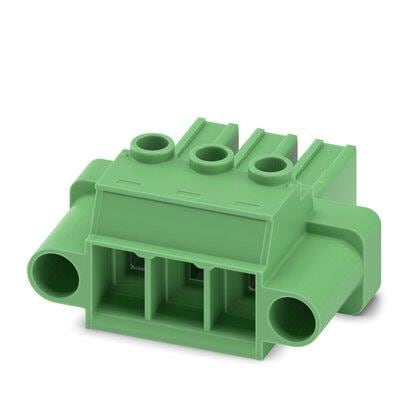

1391645 Phoenix Contact
Hersteller: Phoenix ContactDescription: TERM BLOCK PLUG 2POS 15.24MM
Features: Mating Flange
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 2
Pitch: 0.600" (15.24mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 105°C
Termination Style: Screw - Clamping Yoke (Tension Sleeve)
Current - IEC: 41A
Number of Levels: 1
Wire Gauge or Range - AWG: 8-24 AWG
Wire Gauge or Range - mm²: 0.2-10mm²
Positions Per Level: 2
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 41 A
Voltage - IEC: 1 kV
Voltage - UL: 600 V
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 1391645 Phoenix Contact
Description: TERM BLOCK PLUG 2POS 15.24MM, Features: Mating Flange, Packaging: Bulk, Color: Green, Mounting Type: Free Hanging (In-Line), Number of Positions: 2, Pitch: 0.600" (15.24mm), Type: Plug, Female Sockets, Operating Temperature: -40°C ~ 105°C, Termination Style: Screw - Clamping Yoke (Tension Sleeve), Current - IEC: 41A, Number of Levels: 1, Wire Gauge or Range - AWG: 8-24 AWG, Wire Gauge or Range - mm²: 0.2-10mm², Positions Per Level: 2, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Current - UL: 41 A, Voltage - IEC: 1 kV, Voltage - UL: 600 V.
Weitere Produktangebote 1391645
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
1391645 | Hersteller : Phoenix Contact |
Pluggable Terminal Blocks PC 5/ 2-STF1-15 24 |
Produkt ist nicht verfügbar |
|
 |
1391645 | Hersteller : PHOENIX CONTACT |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; COMBICON L; 32A; 1kV Type of connector: pluggable terminal block Connector: plug Manufacturer series: COMBICON L Current rating: 32A Rated voltage: 1kV Number of pins: 2 Electrical mounting: screw terminal Contact plating: tinned Flammability rating: UL94V-0 Body material: PA Length: 35.25mm Body colour: green Contacts pitch: 15.24mm Locking system: threaded joint Height: 19.7mm Width: 38.08mm |
Produkt ist nicht verfügbar |
