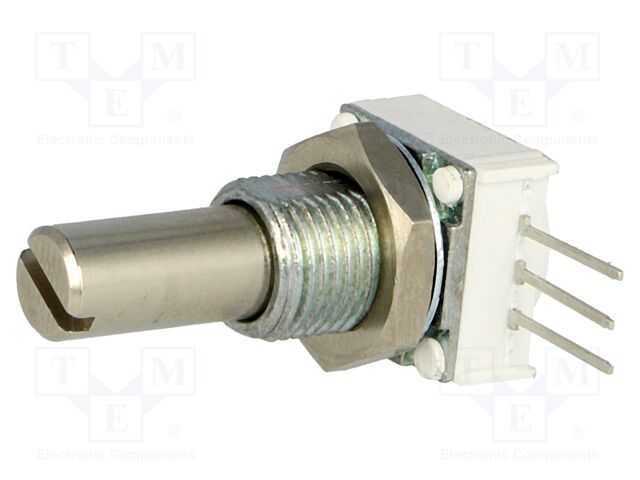

14910F0GJSX10101KA VISHAY
Hersteller: VISHAY
Category: Cermet single turn potentiometers
Description: Potentiometer: shaft; 100Ω; single turn; 1W; ±10%; 6.35mm; THT; 149
Resistance: 100Ω
Tolerance: ±10%
Power: 1W
Mounting: THT
Temperature coefficient: 150ppm/°C
Body dimensions: 12.5x12.5x8.8mm
Operating temperature: -40...150°C
Shaft diameter: 6.35mm
Potentiometer standard: 12.5mm
Linearity tolerance: ±5%
Max. operating voltage: 350V AC
Electrical rotation angle: 270 ±10°
Electrical life: 25000 cycles
Manufacturer series: 149
Track material: cermet
Shaft surface: smooth
Potentiometer features: for industrial use
Type of potentiometer: shaft
Kind of potentiometer: single turn
Produktrezensionen
Produktbewertung abgeben
Technische Details 14910F0GJSX10101KA VISHAY
Category: Cermet single turn potentiometers, Description: Potentiometer: shaft; 100Ω; single turn; 1W; ±10%; 6.35mm; THT; 149, Resistance: 100Ω, Tolerance: ±10%, Power: 1W, Mounting: THT, Temperature coefficient: 150ppm/°C, Body dimensions: 12.5x12.5x8.8mm, Operating temperature: -40...150°C, Shaft diameter: 6.35mm, Potentiometer standard: 12.5mm, Linearity tolerance: ±5%, Max. operating voltage: 350V AC, Electrical rotation angle: 270 ±10°, Electrical life: 25000 cycles, Manufacturer series: 149, Track material: cermet, Shaft surface: smooth, Potentiometer features: for industrial use, Type of potentiometer: shaft, Kind of potentiometer: single turn.
Weitere Produktangebote 14910F0GJSX10101KA
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
14910F0GJSX10101KA | Vishay Spectrol |
Description: POT 100 OHM 1W CERMET LINEAR Resistance (Ohms): 100 Power (Watts): 1W Tolerance: ±10% Features: Sealed Packaging: Box Temperature Coefficient: ±150ppm/°C Adjustment Type: User Defined Mounting Type: Through Hole Termination Style: PC Pins Bushing Thread: 1/4-32 Actuator Length: 0.875" (22.23mm) Actuator Type: Slotted Built in Switch: None Actuator Diameter: 0.250" (6.35mm) Resistive Material: Cermet Taper: Linear Rotation: 300° Number of Gangs: 1 Part Status: Active Number of Turns: 1 |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| 14910F0GJSX10101KA | Vishay / Spectrol |
Potentiometers 100ohms 1 Gang 10% Cermet Slotted |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| 14910F0GJSX10101KA |
|
Hersteller: Vishay Spectrol
Description: POT 100 OHM 1W CERMET LINEAR
Resistance (Ohms): 100
Power (Watts): 1W
Tolerance: ±10%
Features: Sealed
Packaging: Box
Temperature Coefficient: ±150ppm/°C
Adjustment Type: User Defined
Mounting Type: Through Hole
Termination Style: PC Pins
Bushing Thread: 1/4-32
Actuator Length: 0.875" (22.23mm)
Actuator Type: Slotted
Built in Switch: None
Actuator Diameter: 0.250" (6.35mm)
Resistive Material: Cermet
Taper: Linear
Rotation: 300°
Number of Gangs: 1
Part Status: Active
Number of Turns: 1
Description: POT 100 OHM 1W CERMET LINEAR
Resistance (Ohms): 100
Power (Watts): 1W
Tolerance: ±10%
Features: Sealed
Packaging: Box
Temperature Coefficient: ±150ppm/°C
Adjustment Type: User Defined
Mounting Type: Through Hole
Termination Style: PC Pins
Bushing Thread: 1/4-32
Actuator Length: 0.875" (22.23mm)
Actuator Type: Slotted
Built in Switch: None
Actuator Diameter: 0.250" (6.35mm)
Resistive Material: Cermet
Taper: Linear
Rotation: 300°
Number of Gangs: 1
Part Status: Active
Number of Turns: 1
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| 14910F0GJSX10101KA |
|
Hersteller: Vishay / Spectrol
Potentiometers 100ohms 1 Gang 10% Cermet Slotted
