1547560000 Weidmüller
Hersteller: Weidmüller

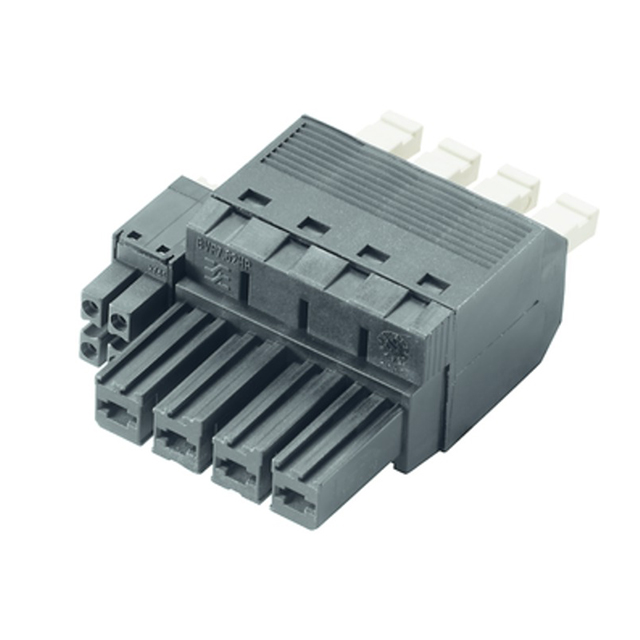

Description: TERM BLOCK PLUG 8POS 7.62MM
Packaging: Box
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 8
Pitch: 0.300" (7.62mm)
Type: Plug, Female Sockets
Operating Temperature: -50°C ~ 125°C
Termination Style: Screwless - Leg Spring, Push-In Spring
Current - IEC: 38A
Number of Levels: Hybrid
Wire Gauge or Range - AWG: 8-24 AWG
Wire Gauge or Range - mm²: 0.5-6mm²
Positions Per Level: 8 (4 Power + 4 Signal)
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 35 A
Voltage - IEC: 1 kV
Voltage - UL: 600 V
| Anzahl | Privatkunde |
|---|---|
| 1+ | 43.6 EUR |
| 10+ | 31.23 EUR |
| 48+ | 26.08 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details 1547560000 Weidmüller
Description: TERM BLOCK PLUG 8POS 7.62MM, Packaging: Box, Color: Black, Mounting Type: Free Hanging (In-Line), Number of Positions: 8, Pitch: 0.300" (7.62mm), Type: Plug, Female Sockets, Operating Temperature: -50°C ~ 125°C, Termination Style: Screwless - Leg Spring, Push-In Spring, Current - IEC: 38A, Number of Levels: Hybrid, Wire Gauge or Range - AWG: 8-24 AWG, Wire Gauge or Range - mm²: 0.5-6mm², Positions Per Level: 8 (4 Power + 4 Signal), Plug Wire Entry: 180°, Contact Mating Finish: Tin, Current - UL: 35 A, Voltage - IEC: 1 kV, Voltage - UL: 600 V.
Weitere Produktangebote 1547560000
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
1547560000 | WEIDMÜLLER |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; female; 35A,36A; 1V,600V Operating temperature: -50...125°C Body colour: black Mechanical mounting: on PCBs Body material: PA GF Electrical mounting: push-in Type of connector: pluggable terminal block Kind of connector: female Contact plating: tinned Spatial orientation: straight Rated voltage: 1V; 0.6kV Contact material: copper alloy Flammability rating: UL94V-0 Contacts pitch: 7.62mm Number of pins: 4 Current rating: 35A; 36A |
auf Bestellung 96 Stücke: Lieferzeit 14-21 Tag (e) |
Mindestbestellmenge: 8 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 1547560000 |
|
Hersteller: WEIDMÜLLER
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; female; 35A,36A; 1V,600V
Operating temperature: -50...125°C
Body colour: black
Mechanical mounting: on PCBs
Body material: PA GF
Electrical mounting: push-in
Type of connector: pluggable terminal block
Kind of connector: female
Contact plating: tinned
Spatial orientation: straight
Rated voltage: 1V; 0.6kV
Contact material: copper alloy
Flammability rating: UL94V-0
Contacts pitch: 7.62mm
Number of pins: 4
Current rating: 35A; 36A
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; female; 35A,36A; 1V,600V
Operating temperature: -50...125°C
Body colour: black
Mechanical mounting: on PCBs
Body material: PA GF
Electrical mounting: push-in
Type of connector: pluggable terminal block
Kind of connector: female
Contact plating: tinned
Spatial orientation: straight
Rated voltage: 1V; 0.6kV
Contact material: copper alloy
Flammability rating: UL94V-0
Contacts pitch: 7.62mm
Number of pins: 4
Current rating: 35A; 36A
auf Bestellung 96 Stücke:
Lieferzeit 14-21 Tag (e)
