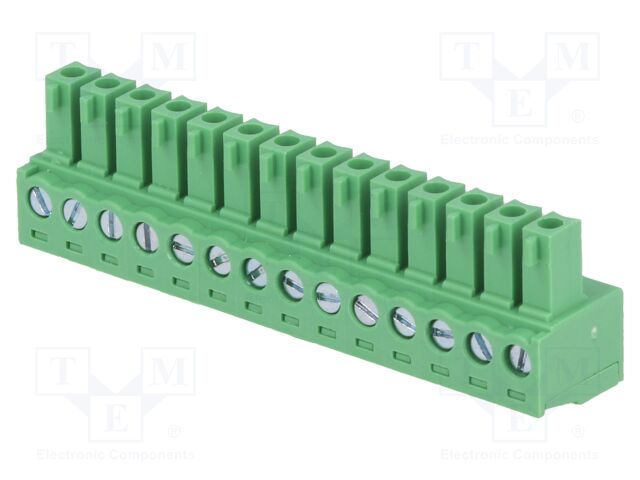

15EDGK-3.81-14P-14-00A(H) DEGSON ELECTRONICS
Hersteller: DEGSON ELECTRONICS
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 3.81mm; ways: 14; straight; plug; female
Type of connector: pluggable terminal block
Contacts pitch: 3.81mm
Number of ways: 14
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: cage clamp; screw terminal
Wire cross-section: 0.5...1.5mm2
Wire size: 28AWG...16AWG
Colour: green
Rated voltage: 0.25kV
Locking system: friction lock
Current rating: 7A
Body material: polyamide 66
Flammability rating: UL94V-0
Connector pinout layout: 1x14
Conform to the norm: CE; UL; VDE
Operating temperature: -40...105°C
Contact material: phosphor bronze
Number of terminals: 14
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 3.81mm; ways: 14; straight; plug; female
Type of connector: pluggable terminal block
Contacts pitch: 3.81mm
Number of ways: 14
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: cage clamp; screw terminal
Wire cross-section: 0.5...1.5mm2
Wire size: 28AWG...16AWG
Colour: green
Rated voltage: 0.25kV
Locking system: friction lock
Current rating: 7A
Body material: polyamide 66
Flammability rating: UL94V-0
Connector pinout layout: 1x14
Conform to the norm: CE; UL; VDE
Operating temperature: -40...105°C
Contact material: phosphor bronze
Number of terminals: 14
auf Bestellung 737 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
22+ | 3.33 EUR |
31+ | 2.33 EUR |
33+ | 2.2 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 15EDGK-3.81-14P-14-00A(H) DEGSON ELECTRONICS
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 3.81mm; ways: 14; straight; plug; female, Type of connector: pluggable terminal block, Contacts pitch: 3.81mm, Number of ways: 14, Spatial orientation: straight, Connector: plug, Kind of connector: female, Mechanical mounting: for cable, Electrical mounting: cage clamp; screw terminal, Wire cross-section: 0.5...1.5mm2, Wire size: 28AWG...16AWG, Colour: green, Rated voltage: 0.25kV, Locking system: friction lock, Current rating: 7A, Body material: polyamide 66, Flammability rating: UL94V-0, Connector pinout layout: 1x14, Conform to the norm: CE; UL; VDE, Operating temperature: -40...105°C, Contact material: phosphor bronze, Number of terminals: 14, Anzahl je Verpackung: 1 Stücke.
