1754863 Phoenix Contact


1754863.pdf
Hersteller: Phoenix Contact

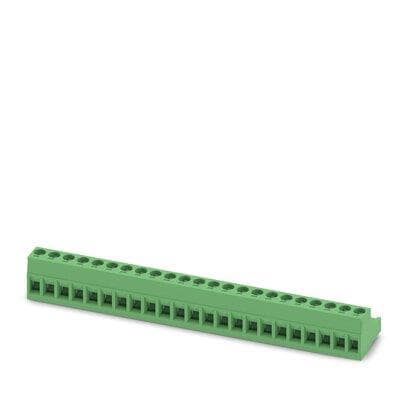

Description: TERM BLOCK PLUG 23POS STR 5MM
Features: Retention Latches (Non-Wire Side)
Packaging: Bulk
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 23
Pitch: 0.197" (5.00mm)
Type: Plug, Female Sockets
Termination Style: Screw - Rising Cage Clamp
Current - IEC: 12A
Number of Levels: 1
Wire Gauge or Range - AWG: 12-30 AWG
Wire Gauge or Range - mm²: 0.2-2.5mm²
Positions Per Level: 23
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 15 A
Voltage - IEC: 630 V
Voltage - UL: 300 V
Produkt ist nicht verfügbar
Mindestbestellmenge: 50 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 1754863 Phoenix Contact

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; power supply, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Connector family: power supply, Current rating: 12A, Rated voltage: 0.25kV, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: cage clamp; screw terminal, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide, Connector pinout layout: 1x23, Contacts pitch: 5mm, Number of ways: 23, Locking system: friction lock, Conform to the norm: CSA; UL; VDE, Wire size: 24AWG...12AWG, Number of terminals: 23, Manufacturer series: MSTB, Wire cross-section: 0.2...2.5mm2.
