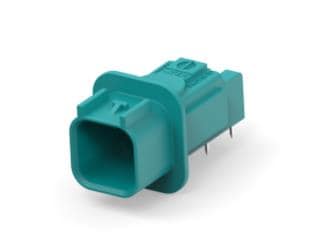

1802162-9 TE Connectivity AMP Connectors

Description: 1-PORT MATENET HDR 90DEG SEALED,, Packaging: Tape & Reel (TR), Connector Type: Header, Current Rating (Amps): 1.5A, Mounting Type: Through Hole, Right Angle, Number of Positions: 2, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 120°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Blue, Pitch - Mating: 0.071" (1.80mm), Contact Finish - Mating: Silver, Contact Finish - Post: Tin, Contact Shape: Circular, Contact Length - Post: 0.094" (2.40mm), Insulation Height: 0.748" (19.00mm), Shrouding: Shrouded - 4 Wall.
