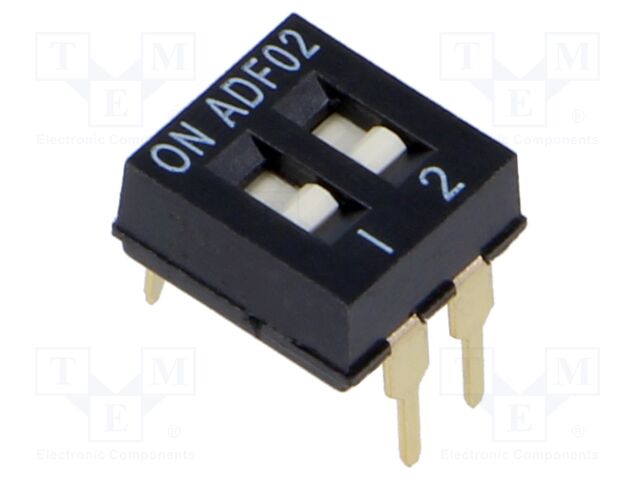

1825002-1

1825002-1 TE Connectivity


DDEController?Action=srchrtrv&DocNm=ADE_ADP_ADF_Datasheet&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=1825002-1 Hersteller: TE Connectivity
Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 2; OFF-ON; -0.025A/24VDC; Pos: 2
Type of switch: DIP-SWITCH
Poles number: 2
Switching method: OFF-ON
DC contacts rating @R: -0.025A / 24V DC
Number of positions: 2
Stable positions number: 2
Mounting: THT
Operating temperature: -30...85°C
Min. insulation resistance: 0.1GΩ
Manufacturer series: ADF
Electrical life: 1000 cycles
Illumination: none
Contact plating: gold-plated
Max. contact resistance:: 50mΩ
Leads: for soldering
Body colour: black
Contact material: copper alloy
Contacts configuration: SPST
Flammability rating: UL94V-0
Anzahl je Verpackung: 1 Stücke
auf Bestellung 240 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
59+1.22 EUR
65+1.12 EUR
68+1.06 EUR
Mindestbestellmenge: 59
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 1825002-1 TE Connectivity

Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 2; OFF-ON; -0.025A/24VDC; Pos: 2, Type of switch: DIP-SWITCH, Poles number: 2, Switching method: OFF-ON, DC contacts rating @R: -0.025A / 24V DC, Number of positions: 2, Stable positions number: 2, Mounting: THT, Operating temperature: -30...85°C, Min. insulation resistance: 0.1GΩ, Manufacturer series: ADF, Electrical life: 1000 cycles, Illumination: none, Contact plating: gold-plated, Max. contact resistance:: 50mΩ, Leads: for soldering, Body colour: black, Contact material: copper alloy, Contacts configuration: SPST, Flammability rating: UL94V-0, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 1825002-1 nach Preis ab 0.8 EUR bis 1.34 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
1825002-1 1825002-1 Hersteller : TE Connectivity DDEController?Action=srchrtrv&DocNm=ADE_ADP_ADF_Datasheet&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=1825002-1 Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 2; OFF-ON; -0.025A/24VDC; Pos: 2
Type of switch: DIP-SWITCH
Poles number: 2
Switching method: OFF-ON
DC contacts rating @R: -0.025A / 24V DC
Number of positions: 2
Stable positions number: 2
Mounting: THT
Operating temperature: -30...85°C
Min. insulation resistance: 0.1GΩ
Manufacturer series: ADF
Electrical life: 1000 cycles
Illumination: none
Contact plating: gold-plated
Max. contact resistance:: 50mΩ
Leads: for soldering
Body colour: black
Contact material: copper alloy
Contacts configuration: SPST
Flammability rating: UL94V-0
auf Bestellung 240 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
59+1.22 EUR
65+1.12 EUR
68+1.06 EUR
Mindestbestellmenge: 59
Im Einkaufswagen  Stück im Wert von  UAH
1825002-1 1825002-1 Hersteller : TE Connectivity ALCOSWITCH Switches DDEController?Action=srchrtrv&DocNm=ADE_ADP_ADF_Datasheet&DocType=Data+Sheet&DocLang=English&DocFormat=pdf&PartCntxt=1825002-1 Description: SWITCH SLIDE DIP SPST 0.025A 24V
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 24VDC
Current Rating (Amps): 25mA
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm), Full
Circuit: SPST
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Actuator Type: Slide (Standard)
Height Above Board: 0.189" (4.80mm)
Actuator Level: Flush, Recessed
Washable: Yes
Contact Material: Copper Alloy
Number of Positions: 2
auf Bestellung 11226 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
14+1.34 EUR
16+1.17 EUR
60+1.05 EUR
120+1.01 EUR
300+0.95 EUR
540+0.92 EUR
1020+0.88 EUR
2520+0.83 EUR
5040+0.8 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
1825002-1 Hersteller : TE Connectivity pgurl_1825002-1rqpnadf0204.pdf Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
1825002-1 1825002-1 Hersteller : TE Connectivity pgurl_1825002-1rqpnadf0204.pdf Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC PC Pins 2.54mm Thru-Hole Tube
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
