1835.3118 Marquardt
Hersteller: Marquardt
Category: Rocker Switches

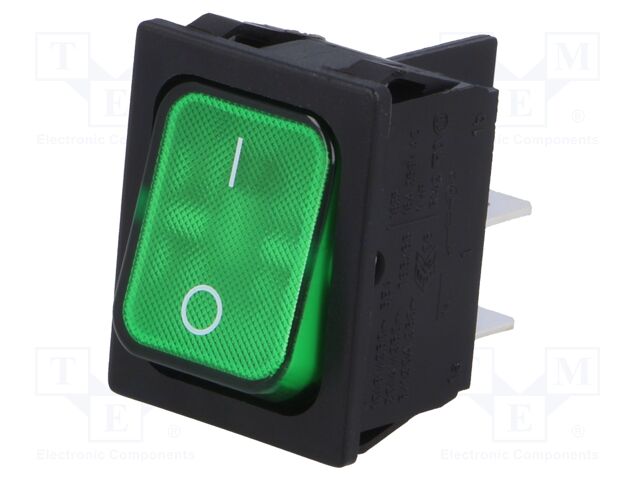

Description: ROCKER; DPST; Pos: 2; ON-OFF; 20A/250VAC; green; IP40; filament lamp
Operating temperature: -20...85°C
IP rating: IP40
Contact plating: silver plated
Related items: 203.201.011
Flammability rating: UL94V-0
Manufacturer series: 1835
Max. contact resistance:: 100mΩ
Contacts configuration: DPST
Key button colour: green
Dimensions: 31.5x25x16.2mm
Number of positions: 2
Shape: rectangular
AC contacts rating @L: 4A / 250V AC
Panel thickness: max. 3mm
Mounting hole diameter: 30.6x22mm
Leads: connectors 6,3x0,8mm
Type of switch: ROCKER
AC contacts rating @R: 20A / 250V AC
Switching method: ON-OFF
Stable positions number: 2
Illumination: filament lamp
Illumination voltage: 230V
Button marking: O-I
Body colour: black
Backlight colour: green
Button shape: rectangular
Anzahl je Verpackung: 1 Stücke
Category: Rocker Switches
Description: ROCKER; DPST; Pos: 2; ON-OFF; 20A/250VAC; green; IP40; filament lamp
Operating temperature: -20...85°C
IP rating: IP40
Contact plating: silver plated
Related items: 203.201.011
Flammability rating: UL94V-0
Manufacturer series: 1835
Max. contact resistance:: 100mΩ
Contacts configuration: DPST
Key button colour: green
Dimensions: 31.5x25x16.2mm
Number of positions: 2
Shape: rectangular
AC contacts rating @L: 4A / 250V AC
Panel thickness: max. 3mm
Mounting hole diameter: 30.6x22mm
Leads: connectors 6,3x0,8mm
Type of switch: ROCKER
AC contacts rating @R: 20A / 250V AC
Switching method: ON-OFF
Stable positions number: 2
Illumination: filament lamp
Illumination voltage: 230V
Button marking: O-I
Body colour: black
Backlight colour: green
Button shape: rectangular
Anzahl je Verpackung: 1 Stücke
auf Bestellung 461 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
11+ | 6.86 EUR |
12+ | 6.02 EUR |
50+ | 5.96 EUR |
