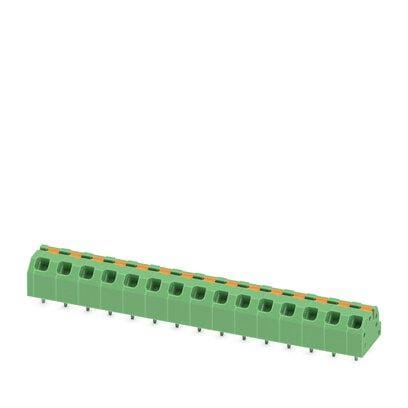

1862408 Phoenix Contact
Hersteller: Phoenix ContactDescription: TERM BLOCK 15POS 45DEG 5MM PCB
Features: Interlocking (Side)
Packaging: Bulk
Color: Green
Mounting Type: Through Hole
Wire Gauge: 16-24 AWG
Pitch: 0.197" (5.00mm)
Mating Orientation: 45° (135°) Angle with Board
Positions Per Level: 15
Wire Termination: Screwless - Leg Spring, Push-In Spring
Current: 8 A
Number of Levels: 1
Voltage: 300 V
auf Bestellung 19 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 9.91 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1862408 Phoenix Contact
Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; SPTAF 1; 16A; 320V; green, Manufacturer series: SPTAF 1, Wire cross-section: 0.2...1.5mm2, Contacts pitch: 5mm, Number of pins: 15, Current rating: 16A, Wire size: 24AWG...16AWG, Rated voltage: 0.32kV, Spatial orientation: angled, Conform to the norm: CSA; UL; VDE, Type of connector: PCB terminal block, Colour: green, Mechanical mounting: on PCBs, Body material: polyamide, Electrical mounting: spring clamp; THT, Connector: terminal, Contact plating: tinned, Flammability rating: UL94V-0, Connector variant: with push button.
Weitere Produktangebote 1862408
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
1862408 | Hersteller : Phoenix Contact |
Fixed Terminal Blocks SPTAF 1/15-5,0-IL |
Produkt ist nicht verfügbar |
|
 |
1862408 | Hersteller : PHOENIX CONTACT |
Category: PCB terminal blocks Description: Connector: PCB terminal block; terminal; SPTAF 1; 16A; 320V; green Manufacturer series: SPTAF 1 Wire cross-section: 0.2...1.5mm2 Contacts pitch: 5mm Number of pins: 15 Current rating: 16A Wire size: 24AWG...16AWG Rated voltage: 0.32kV Spatial orientation: angled Conform to the norm: CSA; UL; VDE Type of connector: PCB terminal block Colour: green Mechanical mounting: on PCBs Body material: polyamide Electrical mounting: spring clamp; THT Connector: terminal Contact plating: tinned Flammability rating: UL94V-0 Connector variant: with push button |
Produkt ist nicht verfügbar |
