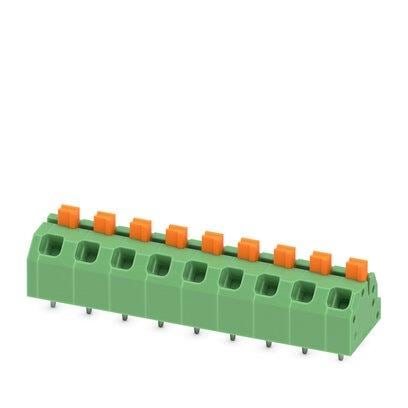

Technische Details 1862482 Phoenix Contact
Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; SPTAF 1; 16A; 320V; PIN: 9, Rated voltage: 0.32kV, Electrical mounting: spring clamp; THT, Mechanical mounting: on PCBs, Colour: green, Type of connector: PCB terminal block, Body material: polyamide, Connector: terminal, Connector variant: with push button, Contact plating: tinned, Flammability rating: UL94V-0, Wire cross-section: 0.2...1.5mm2, Contacts pitch: 5mm, Number of pins: 9, Current rating: 16A, Number of ways: 9, Wire size: 24AWG...16AWG, Connector pinout layout: 1x9, Conform to the norm: CSA; UL; VDE, Spatial orientation: angled, Manufacturer series: SPTAF 1.
Weitere Produktangebote 1862482 nach Preis ab 4.55 EUR bis 6.3 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1862482 | Phoenix Contact |
 Description: TERM BLOCK 9POS 45DEG 5MM PCBFeatures: Interlocking (Side) Packaging: Bulk Color: Green Mounting Type: Through Hole Wire Gauge: 16-24 AWG Pitch: 0.197" (5.00mm) Mating Orientation: 45° (135°) Angle with Board Positions Per Level: 9 Wire Termination: Screwless - Leg Spring, Push-In Spring Current: 8 A Number of Levels: 1 Voltage: 300 V |
auf Bestellung 70 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 1862482 |
|
Hersteller: Phoenix Contact
Description: TERM BLOCK 9POS 45DEG 5MM PCB
Features: Interlocking (Side)
Packaging: Bulk
Color: Green
Mounting Type: Through Hole
Wire Gauge: 16-24 AWG
Pitch: 0.197" (5.00mm)
Mating Orientation: 45° (135°) Angle with Board
Positions Per Level: 9
Wire Termination: Screwless - Leg Spring, Push-In Spring
Current: 8 A
Number of Levels: 1
Voltage: 300 V
Description: TERM BLOCK 9POS 45DEG 5MM PCB
Features: Interlocking (Side)
Packaging: Bulk
Color: Green
Mounting Type: Through Hole
Wire Gauge: 16-24 AWG
Pitch: 0.197" (5.00mm)
Mating Orientation: 45° (135°) Angle with Board
Positions Per Level: 9
Wire Termination: Screwless - Leg Spring, Push-In Spring
Current: 8 A
Number of Levels: 1
Voltage: 300 V
auf Bestellung 70 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 6.3 EUR |
| 10+ | 4.56 EUR |
| 25+ | 4.55 EUR |
