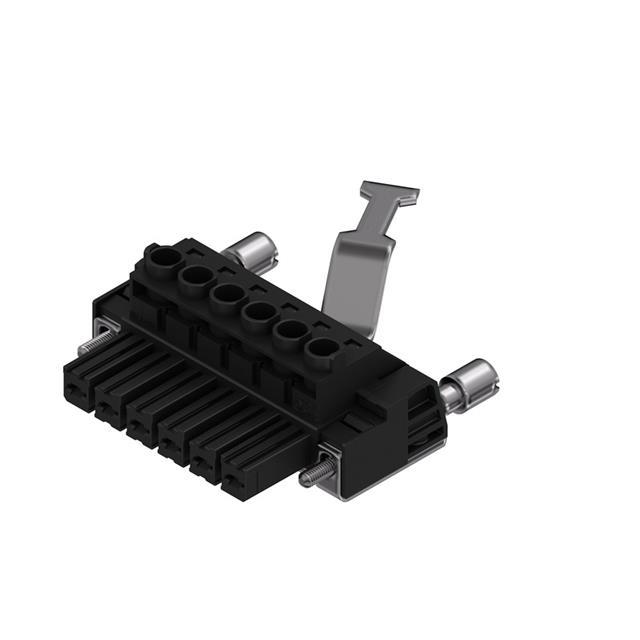

1929880000 Weidmüller
Hersteller: Weidmüller
Description: TERM BLOCK PLUG 6POS 7.62MM
Features: Mating Flange, Strain Relief
Packaging: Bulk
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 6
Pitch: 0.300" (7.62mm)
Type: Plug, Blade Sockets
Operating Temperature: -50°C ~ 125°C
Termination Style: Screw - Clamping Yoke (Tension Sleeve)
Current - IEC: 41A
Number of Levels: 1
Wire Gauge or Range - AWG: 8-24 AWG
Wire Gauge or Range - mm²: 0.2-6mm²
Positions Per Level: 6
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 40.5 A
Voltage - IEC: 1 kV
Voltage - UL: 600 V
| Anzahl | Privatkunde |
|---|---|
| 1+ | 46.39 EUR |
| 10+ | 33.26 EUR |
| 25+ | 29.79 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details 1929880000 Weidmüller
Description: TERM BLOCK PLUG 6POS 7.62MM, Features: Mating Flange, Strain Relief, Packaging: Bulk, Color: Black, Mounting Type: Free Hanging (In-Line), Number of Positions: 6, Pitch: 0.300" (7.62mm), Type: Plug, Blade Sockets, Operating Temperature: -50°C ~ 125°C, Termination Style: Screw - Clamping Yoke (Tension Sleeve), Current - IEC: 41A, Number of Levels: 1, Wire Gauge or Range - AWG: 8-24 AWG, Wire Gauge or Range - mm²: 0.2-6mm², Positions Per Level: 6, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Current - UL: 40.5 A, Voltage - IEC: 1 kV, Voltage - UL: 600 V.
Weitere Produktangebote 1929880000
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
1929880000 | WEIDMÜLLER |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; female; 40.5A; 1V,600V Type of connector: pluggable terminal block Current rating: 40.5A Rated voltage: 1V; 0.6kV Contact material: copper alloy Contact plating: tinned Flammability rating: UL94V-0 Body colour: black Operating temperature: -50...125°C Height: 25mm Spatial orientation: straight Contacts pitch: 7.62mm Number of pins: 6 Mechanical mounting: on PCBs Body material: PA GF Electrical mounting: screw terminal Kind of connector: female |
auf Bestellung 50 Stücke: Lieferzeit 14-21 Tag (e) |
Mindestbestellmenge: 17 Stücke Im Einkaufswagen Stück im Wert von UAH |
| 1929880000 |
|
Hersteller: WEIDMÜLLER
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; female; 40.5A; 1V,600V
Type of connector: pluggable terminal block
Current rating: 40.5A
Rated voltage: 1V; 0.6kV
Contact material: copper alloy
Contact plating: tinned
Flammability rating: UL94V-0
Body colour: black
Operating temperature: -50...125°C
Height: 25mm
Spatial orientation: straight
Contacts pitch: 7.62mm
Number of pins: 6
Mechanical mounting: on PCBs
Body material: PA GF
Electrical mounting: screw terminal
Kind of connector: female
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; female; 40.5A; 1V,600V
Type of connector: pluggable terminal block
Current rating: 40.5A
Rated voltage: 1V; 0.6kV
Contact material: copper alloy
Contact plating: tinned
Flammability rating: UL94V-0
Body colour: black
Operating temperature: -50...125°C
Height: 25mm
Spatial orientation: straight
Contacts pitch: 7.62mm
Number of pins: 6
Mechanical mounting: on PCBs
Body material: PA GF
Electrical mounting: screw terminal
Kind of connector: female
auf Bestellung 50 Stücke:
Lieferzeit 14-21 Tag (e)
