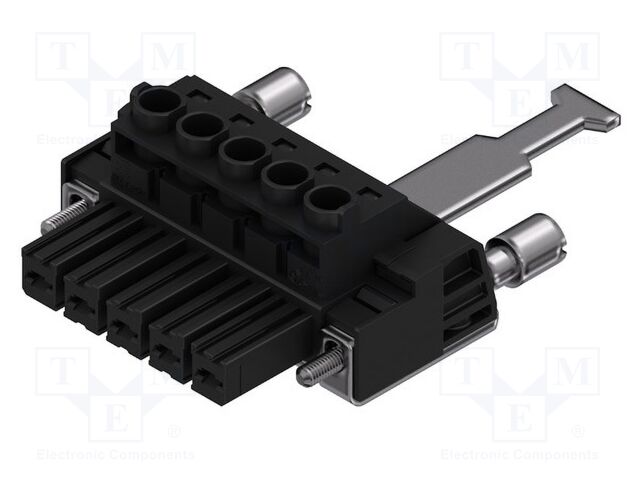

1933360000 WEIDMÜLLER
Hersteller: WEIDMÜLLER
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; female; 40.5A; 1V,600V
Type of connector: pluggable terminal block
Current rating: 40.5A
Rated voltage: 1V; 0.6kV
Contact material: copper alloy
Contact plating: tinned
Flammability rating: UL94V-0
Body colour: black
Operating temperature: -50...125°C
Height: 25mm
Spatial orientation: straight
Contacts pitch: 7.62mm
Number of pins: 5
Mechanical mounting: on PCBs
Body material: PA GF
Electrical mounting: screw terminal
Kind of connector: female
Produktrezensionen
Produktbewertung abgeben
Technische Details 1933360000 WEIDMÜLLER
Description: TERM BLOCK PLUG 5POS 7.62MM, Termination Style: Screw - Clamping Yoke (Tension Sleeve), Operating Temperature: -50°C ~ 125°C, Voltage - UL: 600 V, Voltage - IEC: 1 kV, Current - UL: 40.5 A, Contact Mating Finish: Tin, Plug Wire Entry: 180°, Positions Per Level: 5, Wire Gauge or Range - mm²: 0.2-6mm², Wire Gauge or Range - AWG: 8-24 AWG, Number of Levels: 1, Current - IEC: 41A, Type: Plug, Blade Sockets, Pitch: 0.300" (7.62mm), Number of Positions: 5, Mounting Type: Free Hanging (In-Line), Color: Black, Features: Mating Flange, Strain Relief, Packaging: Bulk.
Weitere Produktangebote 1933360000 nach Preis ab 7.85 EUR bis 39.27 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1933360000 | Weidmüller |
Description: TERM BLOCK PLUG 5POS 7.62MM |
auf Bestellung 50 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
1933360000 | Weidmüller |
Description: TERM BLOCK PLUG 5POS 7.62MM Termination Style: Screw - Clamping Yoke (Tension Sleeve) Operating Temperature: -50°C ~ 125°C Voltage - UL: 600 V Voltage - IEC: 1 kV Current - UL: 40.5 A Contact Mating Finish: Tin Plug Wire Entry: 180° Positions Per Level: 5 Wire Gauge or Range - mm²: 0.2-6mm² Wire Gauge or Range - AWG: 8-24 AWG Number of Levels: 1 Current - IEC: 41A Type: Plug, Blade Sockets Pitch: 0.300" (7.62mm) Number of Positions: 5 Mounting Type: Free Hanging (In-Line) Color: Black Features: Mating Flange, Strain Relief Packaging: Bulk |
auf Bestellung 25 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
| 1933360000 | Weidmuller |
PCB PLUG-IN CONNECTOR FEMALE PLUG 7.62 MM |
auf Bestellung 50 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
| 1933360000 | Weidmuller |
Headers & Wire Housings BVZ 7.62HP/05/180RSH180 SN BK BX |
auf Bestellung 13 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 1933360000 |
|
Hersteller: Weidmüller
Description: TERM BLOCK PLUG 5POS 7.62MM
Description: TERM BLOCK PLUG 5POS 7.62MM
auf Bestellung 50 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 40+ | 7.85 EUR |
| 1933360000 |
|
Hersteller: Weidmüller
Description: TERM BLOCK PLUG 5POS 7.62MM
Termination Style: Screw - Clamping Yoke (Tension Sleeve)
Operating Temperature: -50°C ~ 125°C
Voltage - UL: 600 V
Voltage - IEC: 1 kV
Current - UL: 40.5 A
Contact Mating Finish: Tin
Plug Wire Entry: 180°
Positions Per Level: 5
Wire Gauge or Range - mm²: 0.2-6mm²
Wire Gauge or Range - AWG: 8-24 AWG
Number of Levels: 1
Current - IEC: 41A
Type: Plug, Blade Sockets
Pitch: 0.300" (7.62mm)
Number of Positions: 5
Mounting Type: Free Hanging (In-Line)
Color: Black
Features: Mating Flange, Strain Relief
Packaging: Bulk
Description: TERM BLOCK PLUG 5POS 7.62MM
Termination Style: Screw - Clamping Yoke (Tension Sleeve)
Operating Temperature: -50°C ~ 125°C
Voltage - UL: 600 V
Voltage - IEC: 1 kV
Current - UL: 40.5 A
Contact Mating Finish: Tin
Plug Wire Entry: 180°
Positions Per Level: 5
Wire Gauge or Range - mm²: 0.2-6mm²
Wire Gauge or Range - AWG: 8-24 AWG
Number of Levels: 1
Current - IEC: 41A
Type: Plug, Blade Sockets
Pitch: 0.300" (7.62mm)
Number of Positions: 5
Mounting Type: Free Hanging (In-Line)
Color: Black
Features: Mating Flange, Strain Relief
Packaging: Bulk
auf Bestellung 25 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 39.27 EUR |
| 10+ | 28.1 EUR |
| 25+ | 25.09 EUR |
| 1933360000 |
|
Hersteller: Weidmuller
PCB PLUG-IN CONNECTOR FEMALE PLUG 7.62 MM
PCB PLUG-IN CONNECTOR FEMALE PLUG 7.62 MM
auf Bestellung 50 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 35+ | 10.1 EUR |
| 1933360000 |
|
Hersteller: Weidmuller
Headers & Wire Housings BVZ 7.62HP/05/180RSH180 SN BK BX
Headers & Wire Housings BVZ 7.62HP/05/180RSH180 SN BK BX
auf Bestellung 13 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 35.1 EUR |
| 10+ | 27.7 EUR |
| 25+ | 24.23 EUR |
| 50+ | 22.74 EUR |
| 100+ | 21.28 EUR |
| 250+ | 20.61 EUR |
