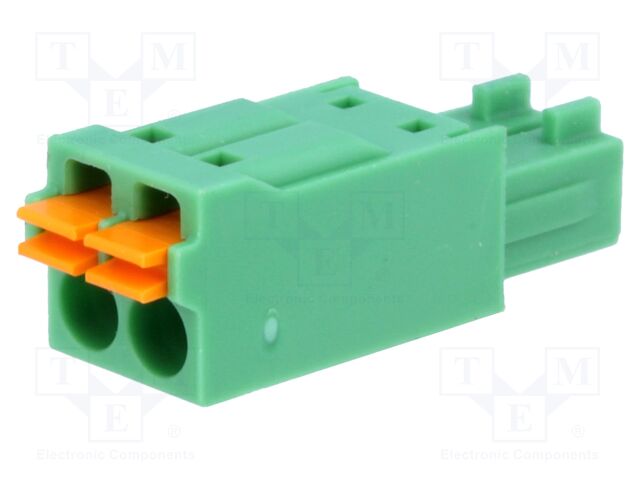

1952267 PHOENIX CONTACT
Hersteller: PHOENIX CONTACT
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 8A; 150V; green
Colour: green
Mechanical mounting: for cable
Flammability rating: UL94V-0
Kind of connector: female
Locking system: friction lock
Body material: polyamide
Connector: plug
Type of connector: pluggable terminal block
Electrical mounting: spring clamp
Spatial orientation: straight
Contact plating: tinned
Connector variant: with push button
Wire cross-section: 0.2...1.5mm2
Contacts pitch: 3.5mm
Number of terminals: 2
Number of ways: 2
Current rating: 8A
Wire size: 24AWG...16AWG
Rated voltage: 0.15kV
Connector pinout layout: 1x2
Conform to the norm: CSA; UL; VDE
Produktrezensionen
Produktbewertung abgeben
Technische Details 1952267 PHOENIX CONTACT
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 8A; 150V; green, Colour: green, Mechanical mounting: for cable, Flammability rating: UL94V-0, Kind of connector: female, Locking system: friction lock, Body material: polyamide, Connector: plug, Type of connector: pluggable terminal block, Electrical mounting: spring clamp, Spatial orientation: straight, Contact plating: tinned, Connector variant: with push button, Wire cross-section: 0.2...1.5mm2, Contacts pitch: 3.5mm, Number of terminals: 2, Number of ways: 2, Current rating: 8A, Wire size: 24AWG...16AWG, Rated voltage: 0.15kV, Connector pinout layout: 1x2, Conform to the norm: CSA; UL; VDE.
Weitere Produktangebote 1952267 nach Preis ab 2.63 EUR bis 4.28 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1952267 | Phoenix Contact |
Pluggable Terminal Blocks 2 Pos 3.5mm pitch Plug 24-16AWG Spring |
auf Bestellung 4964 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
1952267 | Phoenix Contact |
Description: TERM BLOCK PLUG 2POS 3.50MM Voltage - UL: 150 V Voltage - IEC: 320 V Current - UL: 8 A Contact Mating Finish: Tin Plug Wire Entry: 180° Positions Per Level: 2 Wire Gauge or Range - mm²: 0.2-1.5mm² Wire Gauge or Range - AWG: 16-24 AWG Number of Levels: 1 Current - IEC: 8A Termination Style: Screwless - Push-In Spring Type: Plug, Female Sockets Pitch: 0.138" (3.50mm) Number of Positions: 2 Mounting Type: Free Hanging (In-Line) Color: Green Packaging: Bulk |
auf Bestellung 2126 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
1952267 | PHOENIX CONTACT |
Description: PHOENIX CONTACT - 1952267 - Standard-Reihenklemme, 2 Kontakt(e), 3.5 mm, Klemmenblock, Leiterplatte, Leiterplattenmontage tariffCode: 85366990 euEccn: NLR rohsCompliant: YES Kontaktüberzug: Verzinnte Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Kupferlegierung isCanonical: Y Steckverbindermontage: Leiterplattenmontage Leiterstärke (AWG), max.: 16AWG Anzahl der Kontakte: 2Kontakt(e) SVHC: No SVHC (04-Feb-2026) Steckverbinder: Klemmenblock, Leiterplatte Leiterstärke (AWG), min.: 24AWG Produktpalette: - productTraceability: No usEccn: EAR99 Rastermaß: 3.5mm |
auf Bestellung 17 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| 1952267 |
|
Hersteller: Phoenix Contact
Pluggable Terminal Blocks 2 Pos 3.5mm pitch Plug 24-16AWG Spring
Pluggable Terminal Blocks 2 Pos 3.5mm pitch Plug 24-16AWG Spring
auf Bestellung 4964 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 3.61 EUR |
| 10+ | 3.48 EUR |
| 25+ | 3.41 EUR |
| 50+ | 3.33 EUR |
| 100+ | 3.26 EUR |
| 250+ | 3.03 EUR |
| 500+ | 2.87 EUR |
| 1952267 |
|
Hersteller: Phoenix Contact
Description: TERM BLOCK PLUG 2POS 3.50MM
Voltage - UL: 150 V
Voltage - IEC: 320 V
Current - UL: 8 A
Contact Mating Finish: Tin
Plug Wire Entry: 180°
Positions Per Level: 2
Wire Gauge or Range - mm²: 0.2-1.5mm²
Wire Gauge or Range - AWG: 16-24 AWG
Number of Levels: 1
Current - IEC: 8A
Termination Style: Screwless - Push-In Spring
Type: Plug, Female Sockets
Pitch: 0.138" (3.50mm)
Number of Positions: 2
Mounting Type: Free Hanging (In-Line)
Color: Green
Packaging: Bulk
Description: TERM BLOCK PLUG 2POS 3.50MM
Voltage - UL: 150 V
Voltage - IEC: 320 V
Current - UL: 8 A
Contact Mating Finish: Tin
Plug Wire Entry: 180°
Positions Per Level: 2
Wire Gauge or Range - mm²: 0.2-1.5mm²
Wire Gauge or Range - AWG: 16-24 AWG
Number of Levels: 1
Current - IEC: 8A
Termination Style: Screwless - Push-In Spring
Type: Plug, Female Sockets
Pitch: 0.138" (3.50mm)
Number of Positions: 2
Mounting Type: Free Hanging (In-Line)
Color: Green
Packaging: Bulk
auf Bestellung 2126 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 4.28 EUR |
| 10+ | 3.04 EUR |
| 25+ | 2.97 EUR |
| 50+ | 2.63 EUR |
| 1952267 |
|
Hersteller: PHOENIX CONTACT
Description: PHOENIX CONTACT - 1952267 - Standard-Reihenklemme, 2 Kontakt(e), 3.5 mm, Klemmenblock, Leiterplatte, Leiterplattenmontage
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbindermontage: Leiterplattenmontage
Leiterstärke (AWG), max.: 16AWG
Anzahl der Kontakte: 2Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbinder: Klemmenblock, Leiterplatte
Leiterstärke (AWG), min.: 24AWG
Produktpalette: -
productTraceability: No
usEccn: EAR99
Rastermaß: 3.5mm
Description: PHOENIX CONTACT - 1952267 - Standard-Reihenklemme, 2 Kontakt(e), 3.5 mm, Klemmenblock, Leiterplatte, Leiterplattenmontage
tariffCode: 85366990
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Kupferlegierung
isCanonical: Y
Steckverbindermontage: Leiterplattenmontage
Leiterstärke (AWG), max.: 16AWG
Anzahl der Kontakte: 2Kontakt(e)
SVHC: No SVHC (04-Feb-2026)
Steckverbinder: Klemmenblock, Leiterplatte
Leiterstärke (AWG), min.: 24AWG
Produktpalette: -
productTraceability: No
usEccn: EAR99
Rastermaß: 3.5mm
auf Bestellung 17 Stücke:
Lieferzeit 14-21 Tag (e)
