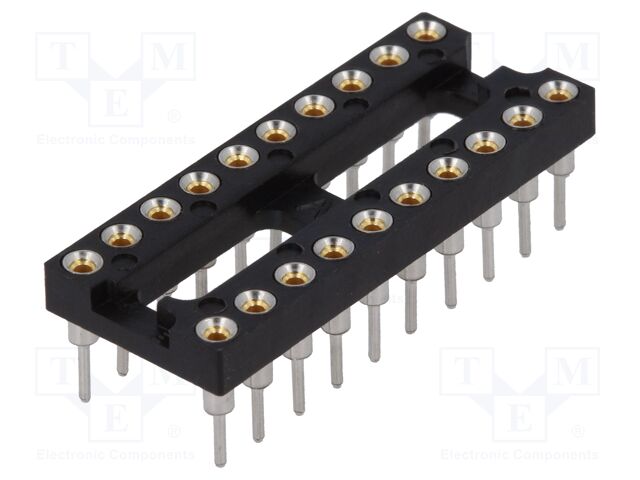

2-1571552-6 TE Connectivity
Hersteller: TE Connectivity
Category: Precision sockets
Description: Socket: integrated circuits; DIP20; Pitch: 2.54mm; precision; THT
Electrical mounting: THT
Contact plating: gold flash
Body material: polyester
Operating temperature: -55...105°C
Row pitch: 7.62mm
Max. contact resistance:: 10mΩ
Maximum current: 3A
Sockets features: bushing contacts
Application: DIP20
Type of Socket: integrated circuits
Connector variant: precision
Pin diameter: 0.51mm
Terminal pitch: 2.54mm
Produktrezensionen
Produktbewertung abgeben
Technische Details 2-1571552-6 TE Connectivity
Description: 820-AG11D-ESL-LF=800 DIP GF/SN, Features: Open Frame, Packaging: Tube, Mounting Type: Through Hole, Type: DIP, 0.3" (7.62mm) Row Spacing, Operating Temperature: -55°C ~ 105°C, Number of Positions or Pins (Grid): 20 (2 x 10), Termination: Solder, Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Material - Mating: Beryllium Copper, Pitch - Post: 0.100" (2.54mm), Contact Finish - Post: Gold, Contact Finish Thickness - Post: 180.0µin (4.57µm), Contact Material - Post: Copper.
Weitere Produktangebote 2-1571552-6 nach Preis ab 2.94 EUR bis 3.09 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2-1571552-6 | TE Connectivity AMP Connectors |
Description: 820-AG11D-ESL-LF=800 DIP GF/SN Features: Open Frame Packaging: Tube Mounting Type: Through Hole Type: DIP, 0.3" (7.62mm) Row Spacing Operating Temperature: -55°C ~ 105°C Number of Positions or Pins (Grid): 20 (2 x 10) Termination: Solder Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: FLASH Contact Material - Mating: Beryllium Copper Pitch - Post: 0.100" (2.54mm) Contact Finish - Post: Gold Contact Finish Thickness - Post: 180.0µin (4.57µm) Contact Material - Post: Copper |
auf Bestellung 1252 Stücke: Lieferzeit 10-14 Tag (e) |
|
| 2-1571552-6 |
|
Hersteller: TE Connectivity AMP Connectors
Description: 820-AG11D-ESL-LF=800 DIP GF/SN
Features: Open Frame
Packaging: Tube
Mounting Type: Through Hole
Type: DIP, 0.3" (7.62mm) Row Spacing
Operating Temperature: -55°C ~ 105°C
Number of Positions or Pins (Grid): 20 (2 x 10)
Termination: Solder
Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Material - Mating: Beryllium Copper
Pitch - Post: 0.100" (2.54mm)
Contact Finish - Post: Gold
Contact Finish Thickness - Post: 180.0µin (4.57µm)
Contact Material - Post: Copper
Description: 820-AG11D-ESL-LF=800 DIP GF/SN
Features: Open Frame
Packaging: Tube
Mounting Type: Through Hole
Type: DIP, 0.3" (7.62mm) Row Spacing
Operating Temperature: -55°C ~ 105°C
Number of Positions or Pins (Grid): 20 (2 x 10)
Termination: Solder
Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Material - Mating: Beryllium Copper
Pitch - Post: 0.100" (2.54mm)
Contact Finish - Post: Gold
Contact Finish Thickness - Post: 180.0µin (4.57µm)
Contact Material - Post: Copper
auf Bestellung 1252 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 100+ | 3.09 EUR |
| 300+ | 3.06 EUR |
| 500+ | 3 EUR |
| 900+ | 2.94 EUR |
