2-1586037-2

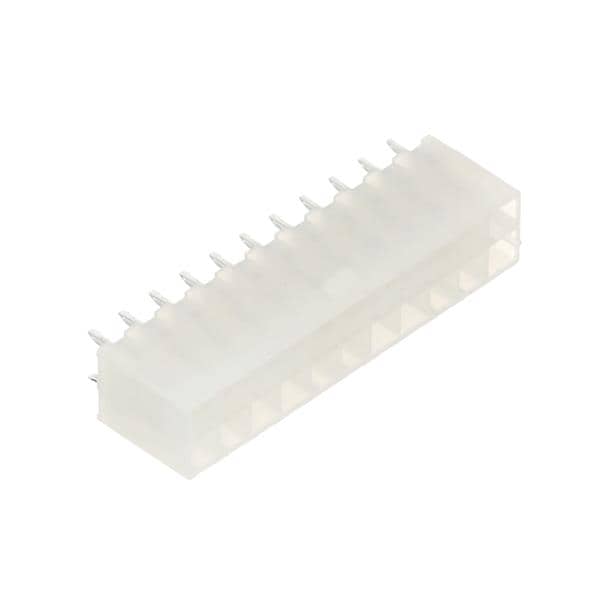

2-1586037-2 TE Connectivity / AMP

ENG_CD_1586037_B5-2012071.pdf Hersteller: TE Connectivity / AMP
Pin & Socket Connectors VERT HDR NO PEGS 22P
auf Bestellung 1140 Stücke:
Lieferzeit 14-28 Tag (e)
Anzahl Preis ohne MwSt
15+3.56 EUR
19+ 2.89 EUR
120+ 2.59 EUR
600+ 2.37 EUR
1080+ 2.27 EUR
2520+ 2.08 EUR
5040+ 2.06 EUR
Mindestbestellmenge: 15
Produktrezensionen
Produktbewertung abgeben

Technische Details 2-1586037-2 TE Connectivity / AMP

Description: CONN HEADER VERT 22POS 4.2MM, Packaging: Bulk, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): 9A, Mounting Type: Through Hole, Number of Positions: 22, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-2, Contact Material: Brass Alloy, Insulation Color: Natural, Pitch - Mating: 0.165" (4.20mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 80.0µin (2.03µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.138" (3.50mm), Insulation Height: 0.504" (12.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.165" (4.20mm).

Weitere Produktangebote 2-1586037-2 nach Preis ab 3.09 EUR bis 3.8 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
2-1586037-2 2-1586037-2 Hersteller : TE Connectivity AMP Connectors DDEController?Action=srchrtrv&DocNm=1586037&DocType=Customer+Drawing&DocLang=English Description: CONN HEADER VERT 22POS 4.2MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 600VAC
Current Rating (Amps): 9A
Mounting Type: Through Hole
Number of Positions: 22
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-2
Contact Material: Brass Alloy
Insulation Color: Natural
Pitch - Mating: 0.165" (4.20mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 80.0µin (2.03µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.504" (12.80mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.165" (4.20mm)
auf Bestellung 154 Stücke:
Lieferzeit 21-28 Tag (e)
Anzahl Preis ohne MwSt
7+3.8 EUR
10+ 3.46 EUR
100+ 3.09 EUR
Mindestbestellmenge: 7
2-1586037-2 2-1586037-2 Hersteller : TE CONNECTIVITY / PARTNER STOCK DDEController?Action=srchrtrv&DocNm=1586037&DocType=Customer+Drawing&DocLang=English Description: TE CONNECTIVITY / PARTNER STOCK - 2-1586037-2 - Stiftleiste, Wire-to-Board, 4.2 mm, 2 Reihe(n), 22 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85389099
rohsCompliant: YES
Kontaktüberzug: Verzinnte Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Messing
usEccn: EAR99
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 22Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Wire-to-Board
Produktpalette: VAL-U-LOK
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 4.2mm
SVHC: No SVHC (27-Jun-2018)
auf Bestellung 612 Stücke:
Lieferzeit 14-21 Tag (e)
2-1586037-2 2-1586037-2 Hersteller : TE Connectivity eng_cat_1309245_0806_001-004_.pdf Conn Shrouded Header (4 Sides) HDR 22 POS 4.2mm Solder ST Thru-Hole Automotive Box/Tray
Produkt ist nicht verfügbar
2-1586037-2 2-1586037-2 Hersteller : TE Connectivity eng_cat_1309245_0806_001-004_.pdf Conn Shrouded Header (4 Sides) HDR 22 POS 4.2mm Solder ST Thru-Hole Automotive Box/Tray
Produkt ist nicht verfügbar
