Produkte > E-SWITCH > 200MDP3T2B4M6QE

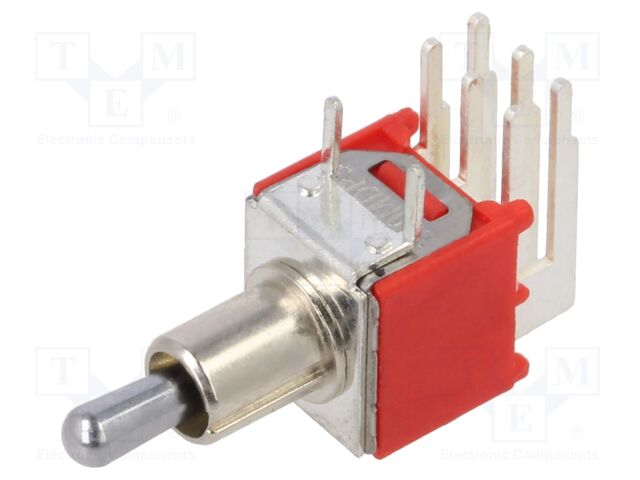

200MDP3T2B4M6QE

200MDP3T2B4M6QE E-SWITCH


pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948C8A044DA760D3&compId=200MDP3T2B4M6QE.pdf?ci_sign=f5952db953cbf0641b325f775e524319c8d5db3a Hersteller: E-SWITCH
Category: Toggle Switches
Description: Switch: toggle; Pos: 3; DP3T; ON-OFF-ON; 1A/250VAC; 3A/28VDC; 200
Min. insulation resistance: 1GΩ
Operating temperature: -30...85°C
Body dimensions: 8.13x9.14x9.09mm
Leads: angled; for PCB
Electrical life: 30000 cycles
Contact material: copper
Type of switch: toggle
Contacts configuration: DP3T
AC contacts rating @R: 1A / 250V AC
DC contacts rating @R: 3A / 28V DC
Switching method: ON-OFF-ON
Stable positions number: 3
Lever length: 5.33mm
Manufacturer series: 200
Number of positions: 3
Mounting: THT
Contact plating: silver plated
Max. contact resistance:: 20mΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 167 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
14+5.29 EUR
15+4.96 EUR
16+4.7 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 200MDP3T2B4M6QE E-SWITCH

Category: Toggle Switches, Description: Switch: toggle; Pos: 3; DP3T; ON-OFF-ON; 1A/250VAC; 3A/28VDC; 200, Min. insulation resistance: 1GΩ, Operating temperature: -30...85°C, Body dimensions: 8.13x9.14x9.09mm, Leads: angled; for PCB, Electrical life: 30000 cycles, Contact material: copper, Type of switch: toggle, Contacts configuration: DP3T, AC contacts rating @R: 1A / 250V AC, DC contacts rating @R: 3A / 28V DC, Switching method: ON-OFF-ON, Stable positions number: 3, Lever length: 5.33mm, Manufacturer series: 200, Number of positions: 3, Mounting: THT, Contact plating: silver plated, Max. contact resistance:: 20mΩ, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 200MDP3T2B4M6QE nach Preis ab 4.7 EUR bis 11.96 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
200MDP3T2B4M6QE 200MDP3T2B4M6QE Hersteller : E-SWITCH pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948C8A044DA760D3&compId=200MDP3T2B4M6QE.pdf?ci_sign=f5952db953cbf0641b325f775e524319c8d5db3a Category: Toggle Switches
Description: Switch: toggle; Pos: 3; DP3T; ON-OFF-ON; 1A/250VAC; 3A/28VDC; 200
Min. insulation resistance: 1GΩ
Operating temperature: -30...85°C
Body dimensions: 8.13x9.14x9.09mm
Leads: angled; for PCB
Electrical life: 30000 cycles
Contact material: copper
Type of switch: toggle
Contacts configuration: DP3T
AC contacts rating @R: 1A / 250V AC
DC contacts rating @R: 3A / 28V DC
Switching method: ON-OFF-ON
Stable positions number: 3
Lever length: 5.33mm
Manufacturer series: 200
Number of positions: 3
Mounting: THT
Contact plating: silver plated
Max. contact resistance:: 20mΩ
auf Bestellung 167 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
14+5.29 EUR
15+4.96 EUR
16+4.7 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
200MDP3T2B4M6QE 200MDP3T2B4M6QE Hersteller : E-Switch 200MDP3T2B4M6QE-3449062.pdf Toggle Switches 3A 120VAC / 28VDC On-Off-On PC Mnt
auf Bestellung 412 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+7.29 EUR
10+5.67 EUR
100+5.44 EUR
270+5.42 EUR
Im Einkaufswagen  Stück im Wert von  UAH
200MDP3T2B4M6QE 200MDP3T2B4M6QE Hersteller : E-Switch 200.pdf Description: SWITCH TOGGLE DPDT 3A 120V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 3A (AC/DC)
Mounting Type: Through Hole, Right Angle
Circuit: DPDT
Switch Function: On-Off-On
Operating Temperature: -30°C ~ 85°C
Termination Style: PC Pin
Illumination: Non-Illuminated
Bushing Thread: Unthreaded
Actuator Length: 5.33mm
Actuator Type: Standard Round
Part Status: Active
Voltage Rating - AC: 120 V
Voltage Rating - DC: 28 V
auf Bestellung 1422 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+9.31 EUR
10+8.04 EUR
25+7.58 EUR
50+7.25 EUR
100+6.94 EUR
270+6.51 EUR
540+6.22 EUR
1080+5.95 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
200MDP3T2B4M6QE Hersteller : E-Switch 200.pdf Switch Toggle ON OFF ON DPDT Round Lever PC Pins 3A 250VAC 28VDC PC Mount with Bracket
auf Bestellung 175 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
19+7.97 EUR
Mindestbestellmenge: 19
Im Einkaufswagen  Stück im Wert von  UAH
200MDP3T2B4M6QE Hersteller : E-Switch 200.pdf Switch Toggle ON OFF ON DPDT Round Lever PC Pins 3A 250VAC 28VDC PC Mount with Bracket
auf Bestellung 270 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
13+11.96 EUR
25+9.78 EUR
100+8.76 EUR
270+8.08 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
