2170219 LAPP
Hersteller: LAPP

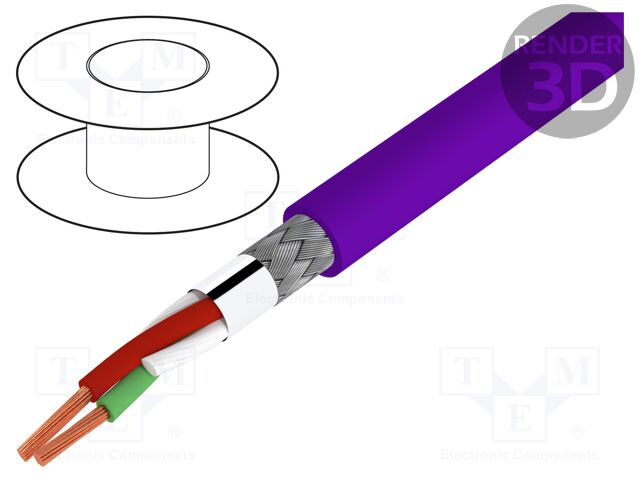

Description: CABLE 2COND 22AWG VIO SHLD FEET
Packaging: Digi-Spool®, Continuous Spool
Length: Enter Number of Feet in Order Quantity
Wire Gauge: 22 AWG
Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
Operating Temperature: -40°C ~ 80°C
Number of Conductors: 2 (1 Pair)
Cable Type: Multi-Conductor
Jacket (Insulation) Diameter: 0.315" (8.00mm)
Conductor Insulation: Polyethylene (PE)
Shield Type: Foil, Braid
Conductor Material: Copper, Bare
Jacket Color: Violet
Part Status: Active
| Anzahl | Privatkunde |
|---|---|
| 5+ | 4.22 EUR |
| 7+ | 4.13 EUR |
| 10+ | 4.02 EUR |
| 25+ | 3.77 EUR |
| 50+ | 3.59 EUR |
| 100+ | 3.42 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 2170219 LAPP
Category: Serial Bus Cables, Description: Wire; UNITRONIC® BUS PB A; 1x2x0.64mm; wire; Cu; Insulation: PVC, Cable external diameter: 8mm, Rated voltage: 225V, Core structure: wire, Cable features: twisted pair conductors, Manufacturer series: UNITRONIC® BUS PB A, Number of cores: 2, Operating temperature: -40...80°C, Cable application: automatics; industrial applications; RS422; RS485, Type of wire: data transmission, Flexibility class: 5, Cable structure: 1x2x0.64mm, Wire insulation material: PVC, Insulation colour: violet, No. of pairs: 1, Kind of material: no flame propagation, Shield structure: Al foil; shielded twofold; tinned copper braid, Core diameter: 0.64mm, CPR standard: no classification, Conform to the norm: IEC 60332-1-2; VW-1, Kind of core: Cu, Resistance to: fire; moisture.
Weitere Produktangebote 2170219 nach Preis ab 2.88 EUR bis 4.43 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2170219 | LAPP |
Category: Serial Bus Cables Description: Wire; UNITRONIC® BUS PB A; 1x2x0.64mm; wire; Cu; Insulation: PVC Cable external diameter: 8mm Rated voltage: 225V Core structure: wire Cable features: twisted pair conductors Manufacturer series: UNITRONIC® BUS PB A Number of cores: 2 Operating temperature: -40...80°C Cable application: automatics; industrial applications; RS422; RS485 Type of wire: data transmission Flexibility class: 5 Cable structure: 1x2x0.64mm Wire insulation material: PVC Insulation colour: violet No. of pairs: 1 Kind of material: no flame propagation Shield structure: Al foil; shielded twofold; tinned copper braid Core diameter: 0.64mm CPR standard: no classification Conform to the norm: IEC 60332-1-2; VW-1 Kind of core: Cu Resistance to: fire; moisture |
auf Bestellung 100 Stücke: Lieferzeit 14-21 Tag (e) |
|
| 2170219 |
|
Hersteller: LAPP
Category: Serial Bus Cables
Description: Wire; UNITRONIC® BUS PB A; 1x2x0.64mm; wire; Cu; Insulation: PVC
Cable external diameter: 8mm
Rated voltage: 225V
Core structure: wire
Cable features: twisted pair conductors
Manufacturer series: UNITRONIC® BUS PB A
Number of cores: 2
Operating temperature: -40...80°C
Cable application: automatics; industrial applications; RS422; RS485
Type of wire: data transmission
Flexibility class: 5
Cable structure: 1x2x0.64mm
Wire insulation material: PVC
Insulation colour: violet
No. of pairs: 1
Kind of material: no flame propagation
Shield structure: Al foil; shielded twofold; tinned copper braid
Core diameter: 0.64mm
CPR standard: no classification
Conform to the norm: IEC 60332-1-2; VW-1
Kind of core: Cu
Resistance to: fire; moisture
Category: Serial Bus Cables
Description: Wire; UNITRONIC® BUS PB A; 1x2x0.64mm; wire; Cu; Insulation: PVC
Cable external diameter: 8mm
Rated voltage: 225V
Core structure: wire
Cable features: twisted pair conductors
Manufacturer series: UNITRONIC® BUS PB A
Number of cores: 2
Operating temperature: -40...80°C
Cable application: automatics; industrial applications; RS422; RS485
Type of wire: data transmission
Flexibility class: 5
Cable structure: 1x2x0.64mm
Wire insulation material: PVC
Insulation colour: violet
No. of pairs: 1
Kind of material: no flame propagation
Shield structure: Al foil; shielded twofold; tinned copper braid
Core diameter: 0.64mm
CPR standard: no classification
Conform to the norm: IEC 60332-1-2; VW-1
Kind of core: Cu
Resistance to: fire; moisture
auf Bestellung 100 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 20+ | 4.43 EUR |
| 21+ | 4.07 EUR |
| 25+ | 3.64 EUR |
| 50+ | 3.25 EUR |
| 100+ | 2.88 EUR |
