2170222 LAPP
Hersteller: LAPP
Description: LAPP - 2170222 - Mehrpaarige Kabel, Geschirmt, 1, 328 ft, 100 m
tariffCode: 85444995
Leitermaterial: Kupfer
Länge auf Rolle (metrisch): 100m
euEccn: NLR
Anzahl der Adernpaare: 1
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: YES
Drahtdurchmesser: -
isCanonical: Y
Mantelmaterial: PU
Länge auf Rolle (imperial): 328ft
Mantelfarbe: -
Leiterquerschnitt CSA: -
SVHC: No SVHC (25-Jun-2025)
Außendurchmesser: 8mm
Max. Anzahl d. Einzeldrähte x Einzeldrahtgröße: -
Produktpalette: UNITRONIC BUS PB FD P Series
productTraceability: No
usEccn: EAR99
Nennspannung: 250V
Kabelabschirmung: Geschirmt
| Anzahl | Privatkunde |
|---|---|
| 1+ | 1255.43 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
14-21 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details 2170222 LAPP
Category: Serial Bus Cables, Description: Wire; UNITRONIC® BUS PB FD; 1x2x0.64mm2; stranded; Cu; violet, Kind of material: halogen free; no flame propagation, Conform to the norm: IEC 60332-1-2, Resistance to: most of oils; UV rays, CPR standard: no classification, Wire insulation material: PUR, Manufacturer series: UNITRONIC® BUS PB FD, Core structure: stranded, Cable features: twisted pair conductors, Insulation colour: violet, Operating temperature: -40...80°C, Core section: 0.64mm2, Cable external diameter: 8mm, No. of pairs: 1, Cable structure: 1x2x0.64mm2, Number of cores: 2, Flexibility class: 5, Rated voltage: 0.25kV, Shield structure: Al foil; braid made of copper wires; shielded twofold, Cable application: automatics; industrial applications; potentially explosive areas; power chain, Kind of core: Cu, Type of wire: data transmission.
Weitere Produktangebote 2170222
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
2170222 | LAPP |
 Category: Serial Bus CablesDescription: Wire; UNITRONIC® BUS PB FD; 1x2x0.64mm2; stranded; Cu; violet Kind of material: halogen free; no flame propagation Conform to the norm: IEC 60332-1-2 Resistance to: most of oils; UV rays CPR standard: no classification Wire insulation material: PUR Manufacturer series: UNITRONIC® BUS PB FD Core structure: stranded Cable features: twisted pair conductors Insulation colour: violet Operating temperature: -40...80°C Core section: 0.64mm2 Cable external diameter: 8mm No. of pairs: 1 Cable structure: 1x2x0.64mm2 Number of cores: 2 Flexibility class: 5 Rated voltage: 0.25kV Shield structure: Al foil; braid made of copper wires; shielded twofold Cable application: automatics; industrial applications; potentially explosive areas; power chain Kind of core: Cu Type of wire: data transmission |
auf Bestellung 110 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| 2170222 |
|
Hersteller: LAPP
Category: Serial Bus Cables

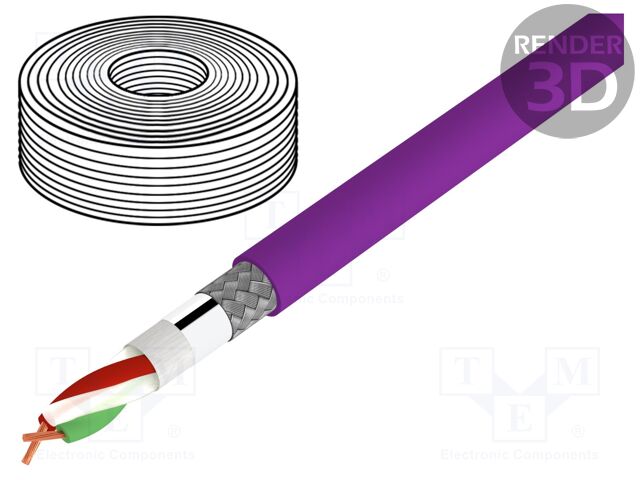

Description: Wire; UNITRONIC® BUS PB FD; 1x2x0.64mm2; stranded; Cu; violet
Kind of material: halogen free; no flame propagation
Conform to the norm: IEC 60332-1-2
Resistance to: most of oils; UV rays
CPR standard: no classification
Wire insulation material: PUR
Manufacturer series: UNITRONIC® BUS PB FD
Core structure: stranded
Cable features: twisted pair conductors
Insulation colour: violet
Operating temperature: -40...80°C
Core section: 0.64mm2
Cable external diameter: 8mm
No. of pairs: 1
Cable structure: 1x2x0.64mm2
Number of cores: 2
Flexibility class: 5
Rated voltage: 0.25kV
Shield structure: Al foil; braid made of copper wires; shielded twofold
Cable application: automatics; industrial applications; potentially explosive areas; power chain
Kind of core: Cu
Type of wire: data transmission
