2170322 LAPP
Hersteller: LAPP

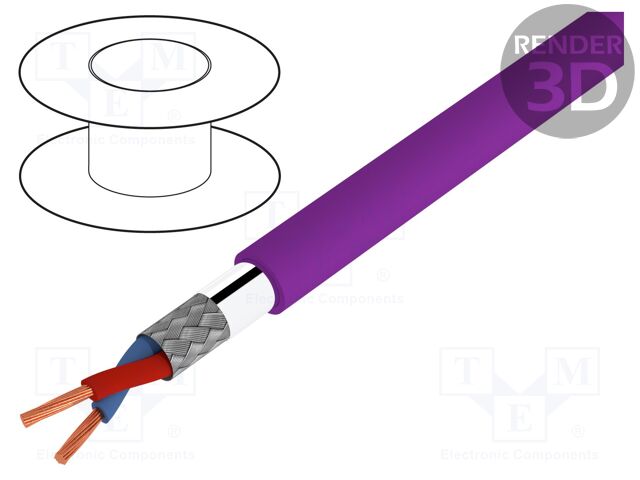

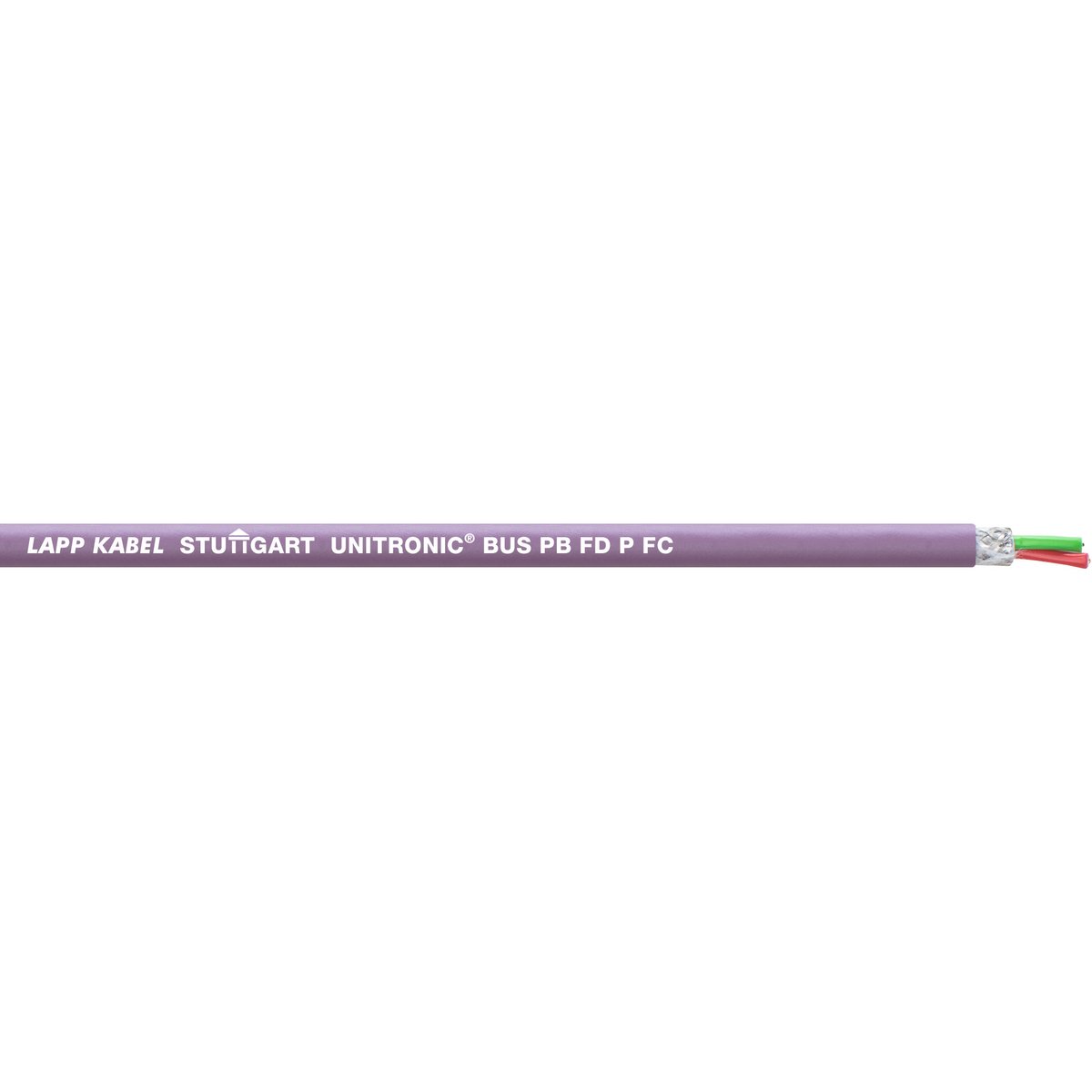

Description: UNITRONIC BUS PB FD P FC 1X2X0,6
Packaging: Spool
Voltage: 250 V
Jacket Color: Violet
Conductor Material: Copper, Bare
Shield Type: Foil, Braid
Conductor Insulation: Polyethylene (PE)
Jacket (Insulation) Diameter: 0.307" (7.80mm)
Cable Type: Multi-Conductor
Number of Conductors: 2 (1 Pair Twisted)
Operating Temperature: -30°C ~ 70°C
Jacket (Insulation) Material: Polyurethane (PU)
Wire Gauge: 24 AWG
Produktrezensionen
Produktbewertung abgeben
Technische Details 2170322 LAPP
Category: Serial Bus Cables, Description: Wire; UNITRONIC® BUS PB FD FC; 1x2x0.64mm2; stranded; Cu; violet, Manufacturer series: UNITRONIC® BUS PB FD FC, Kind of core: Cu, Type of wire: data transmission, Conform to the norm: UL 444; VW-1, Cable features: elastic; Fast Connect; twisted pair conductors, CPR standard: no classification, Insulation colour: violet, Resistance to: most of oils, Kind of material: no flame propagation, Wire insulation material: PUR, Core structure: stranded, Information: The UL Label and Mark on full factory packaging only, Operating temperature: -40...80°C, Core section: 0.64mm2, Cable external diameter: 8mm, No. of pairs: 1, Cable structure: 1x2x0.64mm2, Number of cores: 2, Flexibility class: 6, Rated voltage: 0.25kV, Shield structure: Al foil; braid made of copper wires; shielded twofold, Cable application: automatics; industrial applications; potentially explosive areas; power chain.
Weitere Produktangebote 2170322 nach Preis ab 6.96 EUR bis 8.47 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2170322 | LAPP |
Category: Serial Bus Cables Description: Wire; UNITRONIC® BUS PB FD FC; 1x2x0.64mm2; stranded; Cu; violet Manufacturer series: UNITRONIC® BUS PB FD FC Kind of core: Cu Type of wire: data transmission Conform to the norm: UL 444; VW-1 Cable features: elastic; Fast Connect; twisted pair conductors CPR standard: no classification Insulation colour: violet Resistance to: most of oils Kind of material: no flame propagation Wire insulation material: PUR Core structure: stranded Information: The UL Label and Mark on full factory packaging only Operating temperature: -40...80°C Core section: 0.64mm2 Cable external diameter: 8mm No. of pairs: 1 Cable structure: 1x2x0.64mm2 Number of cores: 2 Flexibility class: 6 Rated voltage: 0.25kV Shield structure: Al foil; braid made of copper wires; shielded twofold Cable application: automatics; industrial applications; potentially explosive areas; power chain |
auf Bestellung 36 Stücke: Lieferzeit 14-21 Tag (e) |
|
| 2170322 |
|
Hersteller: LAPP
Category: Serial Bus Cables
Description: Wire; UNITRONIC® BUS PB FD FC; 1x2x0.64mm2; stranded; Cu; violet
Manufacturer series: UNITRONIC® BUS PB FD FC
Kind of core: Cu
Type of wire: data transmission
Conform to the norm: UL 444; VW-1
Cable features: elastic; Fast Connect; twisted pair conductors
CPR standard: no classification
Insulation colour: violet
Resistance to: most of oils
Kind of material: no flame propagation
Wire insulation material: PUR
Core structure: stranded
Information: The UL Label and Mark on full factory packaging only
Operating temperature: -40...80°C
Core section: 0.64mm2
Cable external diameter: 8mm
No. of pairs: 1
Cable structure: 1x2x0.64mm2
Number of cores: 2
Flexibility class: 6
Rated voltage: 0.25kV
Shield structure: Al foil; braid made of copper wires; shielded twofold
Cable application: automatics; industrial applications; potentially explosive areas; power chain
Category: Serial Bus Cables
Description: Wire; UNITRONIC® BUS PB FD FC; 1x2x0.64mm2; stranded; Cu; violet
Manufacturer series: UNITRONIC® BUS PB FD FC
Kind of core: Cu
Type of wire: data transmission
Conform to the norm: UL 444; VW-1
Cable features: elastic; Fast Connect; twisted pair conductors
CPR standard: no classification
Insulation colour: violet
Resistance to: most of oils
Kind of material: no flame propagation
Wire insulation material: PUR
Core structure: stranded
Information: The UL Label and Mark on full factory packaging only
Operating temperature: -40...80°C
Core section: 0.64mm2
Cable external diameter: 8mm
No. of pairs: 1
Cable structure: 1x2x0.64mm2
Number of cores: 2
Flexibility class: 6
Rated voltage: 0.25kV
Shield structure: Al foil; braid made of copper wires; shielded twofold
Cable application: automatics; industrial applications; potentially explosive areas; power chain
auf Bestellung 36 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 11+ | 8.47 EUR |
| 12+ | 7.72 EUR |
| 25+ | 6.96 EUR |
